Pass & Seymour TradeMaster Jum...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$0.90

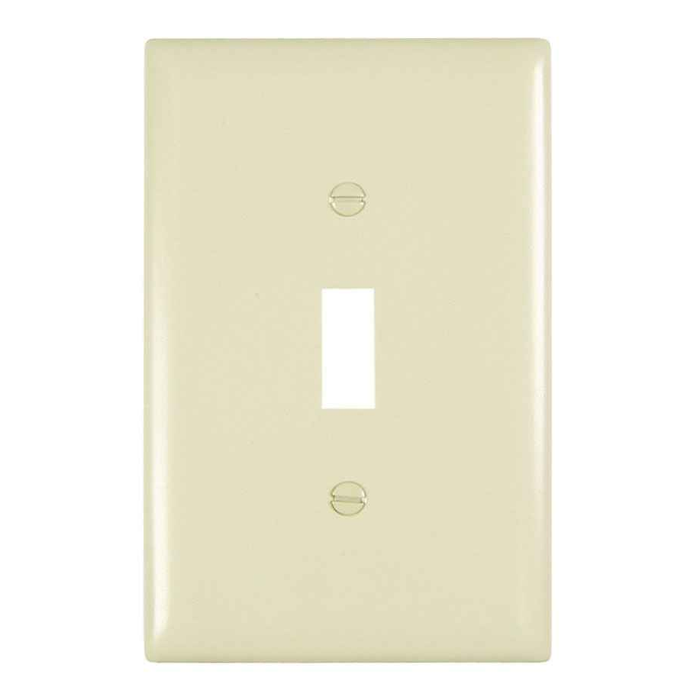

Pass & Seymour TradeMaster Jumbo 1-Gang Nylon Toggle Wall Plate

Pass & Seymour TradeMaster Jumbo 1-Gang Nylon Toggle Wall Plate

(No reviews yet) Write a Review

Model: TPJ1-I

In Stock (leaves warehouse same day if ordered before 3pm ET)

$0.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour TPJ1W TradeMaster Jumbo Nylon Wall Plate, 1-Gang Toggle Opening, White

The Pass & Seymour TPJ1W TradeMaster Jumbo Wall Plate is a 1-gang nylon wall plate with a single toggle switch opening, finished in White. Molded from rugged, practically indestructible self-extinguishing nylon in the 'TP' series, this Jumbo-size plate offers a nominal thickness of .070 inch and is cULus Listed for dependable, code-compliant performance. Its extra-durable construction makes it a preferred choice for hospitals, industrial facilities, institutional buildings, and other high-abuse applications where standard plates fall short.

Key Features

  • Jumbo Sizing: The 'TPJ' series provides an extra 3/16 inch of width and height compared to Junior-Jumbo size plates for broader wall coverage.
  • Nominal Thickness: .070 inch nominal thickness delivers a substantial, rigid feel at the wall plate opening.
  • Durable Construction: Molded of rugged, practically indestructible self-extinguishing nylon ('TP' series only) for long-term durability in demanding environments.
  • 1-Gang Toggle Opening: Configured with a single toggle switch opening for straightforward installation over a standard toggle switch.
  • High-Abuse Rated: Preferred for hospital, industrial, institutional, and other high-abuse applications where standard nylon plates may not hold up.
  • Finish: Clean White color with a Matte finish for a consistent, professional appearance.
  • Color Family: The TradeMaster series is also available in Ivory, Brown, Gray, Black, Blue, Orange, Red, and Light Almond to match a range of decor needs.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Country Of Origin: United States
  • Product Finish: Matte
  • Product Height: 5.0625 in
  • Product Line: Pass & Seymour
  • Product Width: 3.3125 in
  • Product Depth: 0.25 in

Typical Applications

  • Hospital and Healthcare Facility Wiring Devices
  • Industrial and Institutional Buildings
  • High-Abuse Commercial Environments
  • Single-Gang Toggle Switch Installations
  • Renovation and New Construction Projects

Why Pass & Seymour?

Pass & Seymour builds the TradeMaster series from rugged, self-extinguishing nylon specifically to withstand the high-abuse conditions found in hospitals, industrial plants, and institutional facilities. With cULus Listing and Jumbo sizing for broader wall coverage, the TPJ1W wall plate delivers the reliable, code-compliant performance electrical professionals expect from Pass & Seymour.

Product Specs

Product Material:
Nylon
Listing:
cULus
Department:
Electrical
Country of Origin:
United States
Product Finish:
Matte
Product Group:
Wiring Devices
Configuration:
Single Gang
Product Type:
Toggle Wallplate
Product Subgroup:
Wallplates
Product Height:
5.062 in
Product Depth:
0.25 in
Product Width:
3.312 in

Pass & Seymour TPJ1-I – Frequently Asked Questions

1) Will a jumbo wall plate cover the drywall damage around my old switch box?
That is the main reason to go jumbo. The Pass & Seymour TradeMaster TPJ1 measures 5.0625 inches high by 3.3125 inches wide, against roughly 4-1/2 by 2-3/4 inches for a standard plate, so it hides torn paper, cut edges, and paint lines around the box. It also runs 3/16 inch wider and taller than a Junior-Jumbo (mid-size) plate, so if you already tried mid-size and it came up short, this is the next step up.
2) Does the TPJ1 fit a standard single toggle light switch?
Yes. It is a single-gang plate with one toggle switch opening, so it mounts over an ordinary snap/toggle switch using the switch's own two mounting screws. It will not fit a decorator/rocker (Decora-style) device or a duplex receptacle, those need a different opening.
3) Is nylon tough enough for a hospital corridor or a plant floor, or should I use a steel plate?
The TradeMaster TP series is molded from rugged self-extinguishing nylon and is specified for hospital, industrial, institutional, and other high-abuse work, and it is cULus Listed. Nylon won't dent, rust, or need painting, and at .070 inch nominal thickness it feels rigid at the device opening. If your spec calls for metal, say in a shop area with cart and forklift traffic, a steel plate like the Mulberry 86401 1-gang steel wallplate is the alternative.
4) Can I use this plate on a two-gang box or on a duplex receptacle?
No. The TPJ1 is a one-gang plate with a toggle opening only. For a two-gang opening mixing a switch and a receptacle you need a combination plate, such as the Mulberry 76432 or 76532 2-gang combination wallplates. For a single duplex receptacle, a duplex-opening plate like the Bryant P8 series is the right part.
5) What colors does the TradeMaster jumbo toggle plate come in?
Orderable as White (TPJ1-W) or Ivory (TPJ1-I). The wider TradeMaster color family also includes Brown, Gray, Black, Blue, Orange, Red, and Light Almond, useful when a facility color-codes circuits such as red for emergency power.
6) Will the white TPJ1 match other white Pass & Seymour devices already in the building?
It is White in a matte finish, consistent with Pass & Seymour's White device line, so it reads the same as other P&S white switches and plates on adjoining openings. Matte hides fingerprints and scuffs better than a gloss plate in high-traffic corridors. If your existing devices are Ivory, order TPJ1-I instead rather than mixing.
7) Do I need a jumbo plate or will a mid-size (junior jumbo) one do?
Go mid-size when you only need to cover a small gap around a cleanly cut box. Go jumbo, like the TPJ1, when the wall opening is oversized, the tile or panel cut is ragged, or you are covering a previous device footprint, since jumbo adds 3/16 inch of width and height over junior-jumbo. Bryant's PJ series is an M-size (mid-size) plate if that is closer to what you need.
8) For a hospital corridor where plates get abused, how does the TPJ1 compare to the steel options?
The Pass & Seymour TPJ1 is molded from rugged self-extinguishing nylon and is cULus Listed, and the TradeMaster line is put forward for hospital, industrial and institutional high-abuse locations. Where a facility standard requires metal instead, the Mulberry 86401 is a 1-gang steel plate in white. Both cover a single-gang box; the decision is whether the facility standard specifies molded nylon or steel.
9) What 1-gang toggle plate should I look at if I need a colored safety plate for a gas burner switch?
The TradeMaster TPJ1 covers a single toggle opening in White and Ivory for general work. For an identified safety switch, the Mulberry 41020 is a 1-gang toggle switch plate in the 4102 series marked Gas Burner and finished red, so the switch is recognizable at the wall. Use the TPJ1 for standard toggle locations and the 41020 where the toggle must be visually identified.
10) What do I use if the box has two devices side by side instead of one switch?
The TradeMaster TPJ1 is a single-gang plate, so a two-device box needs a 2-gang plate. The Mulberry 76432 and Mulberry 76532 are both 2-gang combination wallplates in cold rolled steel, white, from the 764 and 765 series respectively - the series differ in the combination of openings, so match the opening layout to the two devices in the box.
11) Can I use the Pass & Seymour TPJ1 for a data or voice jack location?
No - the TPJ1 opening is cut for a toggle switch, so it will not accept a communications jack. For a voice or data drop, the Eaton 35324W is a wallplate with a 4-conductor modular jack of Type 625B4 built in. Spec the TPJ1 for switch locations and the 35324W where the wall point is a telephone or data outlet.
12) Are the mounting screws included with the TPJ1 wall plate?
Wall plates in this series ship with matching color-head screws; a toggle plate mounts on the two 6-32 screw holes in the switch yoke, so you do not need to buy hardware separately. No box, strap, or device is included, the plate is the trim only.
13) Is the Pass & Seymour TPJ1 made in the USA?
Yes, country of origin is the United States, which matters if you are bidding public or federally funded work with domestic-content requirements.
14) How far does the TPJ1 stand off the wall?
Depth is 0.25 inch, so it sits close to the wall surface with the toggle handle projecting through the opening. That shallow profile keeps it from catching on carts or gurneys in corridor work.
