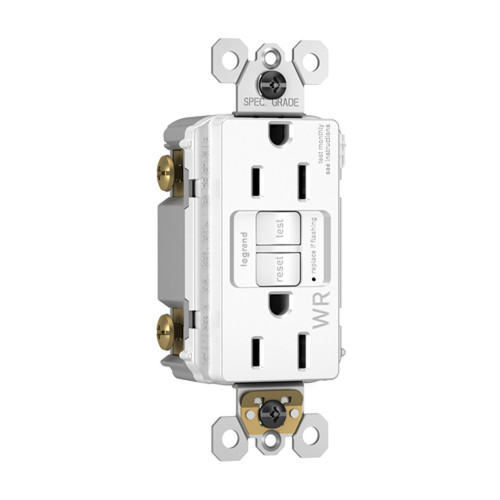

Pass & Seymour Trademaster Weather-Resistant 15A Self-Test Duplex GFCI Receptacle

Pass & Seymour Trademaster Weather-Resistant 15A Self-Test Duplex GFCI Receptacle

(No reviews yet) Write a Review

Model: 1597-TRWRI
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$32.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour Trademaster® Weather-Resistant 15A Self-Test Duplex GFCI Receptacle

The Pass & Seymour Trademaster®/Spec-Grade Weather-Resistant 15A Self-Test Duplex GFCI Receptacle delivers Class A ground-fault protection in a durable, high-impact-resistant thermoplastic housing rated 125VAC, 15A with a 102-132 VAC supply range. Built to the NEMA 5-15R configuration and listed to the Weather-Resistant supplement of UL498, this GFCI automatically self-tests every three seconds and backs up performance with the proven SafeLock™ Protection feature. It meets National Electrical Code® Weather-Resistant and Tamper-Resistant requirements and is available in multiple color options.

Key Features

  • Self-Test Technology: Conducts an automatic test every three seconds; the indicator light flashes if the GFCI fails and needs replacement.
  • SafeLock™ Protection: If critical components are damaged and protection is lost, power to the receptacle is automatically disconnected.
  • Fast Trip Time: Trip Time of 0.025 sec., nominal per UL Standard, with a Trip Threshold of 5 +/- 1 mA and Class A rated GFCI protection.
  • 10kA Short Circuit Rating: Rated for demanding fault-current conditions.
  • Feed-Thru Wiring: 20 Amp feed-thru capacity allows the GFCI to protect downstream receptacles.
  • Weather-Resistant & Tamper-Resistant: Meets National Electrical Code® requirements, including UV exposure, cold impact, and accelerated aging tests.
  • Durable Construction: High-impact-resistant thermoplastic housing with an extra-long strap and Auto-Ground clip.
  • Flexible Back-Wire: Screw-pressure-plate back wire accepts #10-#14 AWG solid or stranded copper wire.
  • Supply Voltage: 125VAC, 60 Hz, Supply Voltage Range 102-132 VAC, 15A rated.
  • Miswire Protection: Prevents line-load reversal miswire, so there is no power to the face or downstream receptacles if wired incorrectly.

Certifications & Compliance

  • UL Listed
  • cULus Listed
  • Listed to the Weather-Resistant supplement of UL498
  • Meets 2015 UL requirements
  • Meets National Electrical Code® Weather-Resistant requirements
  • Meets National Electrical Code® Tamper-Resistant requirements
  • Federal Spec WC596 compliant

Technical Specifications

  • CSA Listed: No
  • UL Listed: Yes
  • Volts: 125
  • Amps: 15A
  • cULus: Yes
  • Federal Spec: Yes
  • NEMA Configuration Number: 5-15R
  • UL Standard: UL498

Typical Applications

  • Residential and Commercial Wet or Damp Location Receptacles
  • Outdoor Circuits Requiring Weather-Resistant GFCI Protection
  • Kitchens, Bathrooms, and Garage Circuits
  • New Construction and Renovation Electrical Upgrades
  • Code-Compliant NEC® Installations

Why Pass & Seymour?

Pass & Seymour's Trademaster®/Spec-Grade construction combines thermoplastic housing, an extra-long strap, and SafeLock™ Protection to deliver reliable, code-compliant GFCI protection. With UL498 Weather-Resistant listing, Class A sensing, and 10kA short circuit performance, this duplex GFCI suits demanding, code-driven installations.

Manufacturer Resources

Product Specs

list_batch:
PASS-20260820
Product Type:
Receptacle
Voltage Rating:
125V
Amperage Rating:
15A
Listing:
cULus
Configuration:
NEMA 5-15R
Country of Origin:
China
Product Material:
Thermoplastic
Department:
Electrical
Product Group:
Wiring Devices
