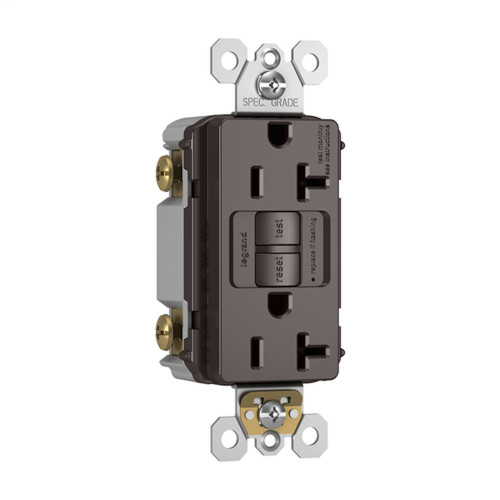

Pass & Seymour Spec-Grade Weather-Resistant 20A Self-Test Duplex GFCI Receptacle

Pass & Seymour Spec-Grade Weather-Resistant 20A Self-Test Duplex GFCI Receptacle

The Pass & Seymour Spec-Grade Weather-Resistant 20A Self-Test Duplex GFCI Receptacle delivers Class A ground-fault protection with an automatic self-test every three seconds, so the device continuously confirms it is ready to protect. Rated 20A at 125VAC (102-132 VAC supply range) with a NEMA 5-20R configuration, this GFCI is Weather-Resistant and Tamper-Resistant per National Electrical Code® requirements and is UL498 / cULus listed. It is available in six matching colors — Ivory, Brown, Light Almond, White, Gray, and Black — each supplied with a matching TP wall plate.

Key Features

• Amperage Rating: 20A feed-thru capacity at 125VAC, 60 Hz, with a 102-132 VAC supply voltage range for reliable performance.
• Durable Construction: High-impact-resistant thermoplastic housing built to withstand jobsite handling and long-term use.
• Back-Wire Connection: Side or internal screw-pressure-plate back wire accepts #10-#14 AWG solid or stranded copper wire, with two back-wire holes per terminal for flexible installation.
• Short-Circuit Rating: 10kA short circuit rating combined with a 0.025 sec. nominal trip time per UL Standard for fast, dependable interruption.
• Self-Test & SafeLock™ Protection: Conducts an automatic test every three seconds; the indicator light flashes if the device fails, and SafeLock™ disconnects power to the receptacle if critical components are damaged and protection is lost.
• Weather- and Tamper-Resistant: Meets National Electrical Code® Weather-Resistant and Tamper-Resistant requirements, with a patented shutter system that helps prevent improper insertion of foreign objects.
• Feed-Thru & Miswire Protection: Feed-thru wiring configuration protects downstream receptacles, and the device prevents line-load reversal miswires by cutting power to the face and downstream outlets if wired incorrectly.
• Installation Details: Extra-long strap, captive mounting screws in both the device and wall plate, ground screw with back-wire clamp, and an Auto-Ground clip for positive grounding to a metal box.

Certifications & Compliance

• UL Listed to UL498
• cULus Listed
• Meets 2015 UL requirements
• Listed to the Weather-Resistant supplement of UL498, including ultraviolet light exposure, cold impact, and accelerated aging tests
• Exceeds UL 943 voltage surge requirements, surviving 100x the required UL 3kA/6kV voltage surge test cycles
• Meets National Electrical Code® Weather-Resistant and Tamper-Resistant requirements
• Federal Spec Number WC596
• NEMA 5-20R Configuration

Technical Specifications

• CSA Listed: No
• UL Listed: Yes
• Volts: 125
• Amps: 20A
• cULus: Yes
• Federal Spec: Yes

Typical Applications

• Commercial and Residential Electrical Installations
• Spec-Grade Renovation and New Construction Projects
• Wet and Damp Outdoor Receptacle Locations
• Kitchens, Bathrooms, and Garage Circuits Requiring GFCI Protection
• Feed-Thru Protection of Downstream Receptacles on the Same Circuit

Why Pass & Seymour?

Pass & Seymour builds this Spec-Grade GFCI receptacle with high-impact-resistant thermoplastic, a 10kA short-circuit rating, and SafeLock™ protection to keep performing under demanding, code-compliant electrical work. With UL498 / cULus listing, Weather-Resistant and Tamper-Resistant NEC compliance, and voltage surge performance well beyond UL 943 minimums, it is engineered for professionals who need dependable ground-fault protection they can trust on every job.
