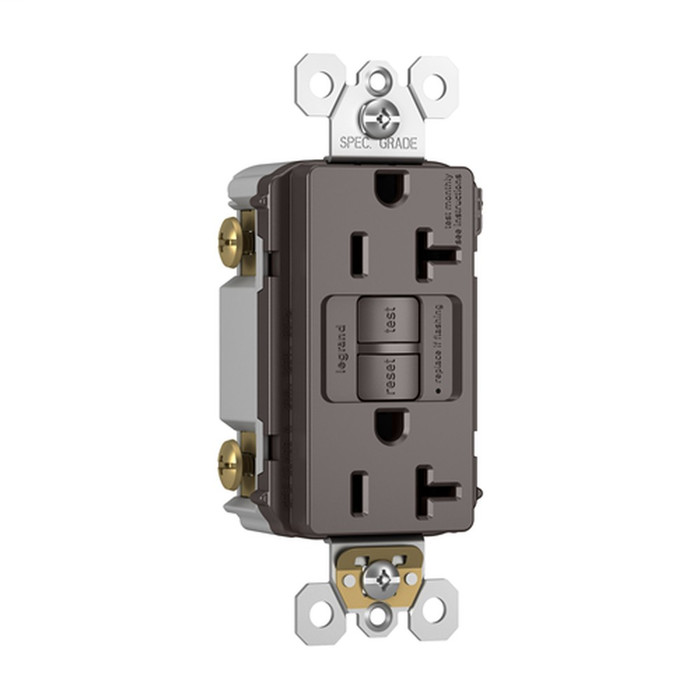

Pass & Seymour Spec-Grade Tamper-Resistant 20A Self-Test Duplex GFCI Receptacle

Pass & Seymour Spec-Grade Tamper-Resistant 20A Self-Test Duplex GFCI Receptacle

The Pass & Seymour Spec-Grade Tamper-Resistant 20A Self-Test Duplex GFCI Receptacle is a Class A rated, 125VAC, 20A feed-thru device built for code-required ground-fault protection in commercial and residential settings. It conducts an automatic self-test every three seconds and flashes its indicator light if it ever fails, so it's always ready to protect, and its SafeLock™ Protection feature cuts power to the receptacle if critical components are damaged. Rated NEMA 5-20R and UL Listed / cULus, it meets National Electrical Code® Tamper-Resistant requirements and 2015 UL requirements.

Key Features

• Amperage & Voltage: 20 Amp feed-thru capacity at 125VAC, 60 Hz, with a supply voltage range of 102-132 VAC.
• Durable Construction: High-impact-resistant thermoplastic housing with an extra-long strap for a thinner profile that leaves more room for wires in the box.
• Self-Test Technology: Automatic test every three seconds with a flashing indicator light if the device fails and needs replacement.
• SafeLock™ Protection: Disconnects power to the receptacle if critical components are damaged and protection is lost.
• Class A GFCI: Trip threshold of 5 +/- 1 mA with a nominal trip time of 0.025 sec. per UL Standard, and a 10kA short circuit rating.
• Tamper-Resistant Shutters: Patented shutter system helps prevent improper insertion of foreign objects, meeting NEC Tamper-Resistant requirements.
• Wiring & Grounding: Side or internal screw-pressure-plate back wire accepts #10-#14 AWG solid or stranded copper wire, with a ground screw back-wire clamp, two back-wire holes per terminal, and an Auto-Ground clip for positive grounding to a metal box.
• Miswire Protection: Prevents line-load reversal miswire, cutting power to the face and downstream receptacles if wired incorrectly, and includes a red LED trip indicator light.

Certifications & Compliance

• UL Listed
• cULus
• UL498 Standard
• Federal Specification WC596 (FSUL Listed)
• Meets 2015 UL requirements
• Exceeds UL 943 voltage surge requirements, surviving 100x the required UL 3kA/6kV surge test cycles
• Meets National Electrical Code® Tamper-Resistant requirements

Technical Specifications

• CSA Listed: No
• UL Listed: Yes
• Volts: 125
• Amps: 20A
• cULus: Yes
• Federal Spec: Yes
• NEMA Configuration Number: 5-20R
• UL Standard: UL498
• Fed Spec Number: WC596
• Country of Origin: China

Typical Applications

• Kitchens, Bathrooms, and Wet-Location Outlets
• Commercial and Residential Electrical Installations
• Code-Required GFCI Protection Points
• Feed-Thru Protection of Downstream Receptacles
• New Construction and Renovation Wiring

Why Pass & Seymour?

Pass & Seymour engineers this GFCI receptacle with high-impact-resistant thermoplastic construction, a Class A trip rating, and UL Listed / cULus compliance to deliver dependable, code-compliant ground-fault protection. Automatic self-testing and SafeLock™ Protection give installers and property owners confidence that the device is verifying its own readiness, making it a reliable choice for professional electrical work.
