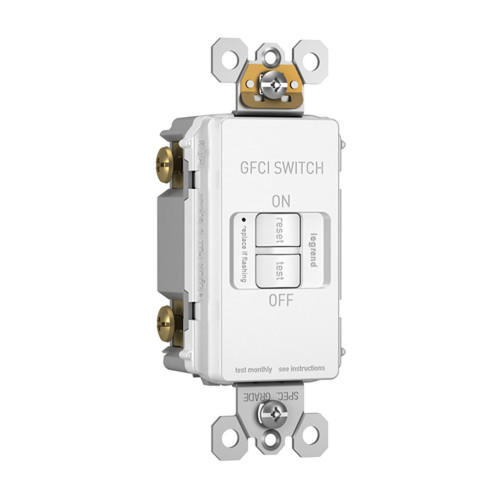

Pass & Seymour Spec-Grade Dead Front 20A Self-Test GFCI Receptacle

Pass & Seymour Spec-Grade Dead Front 20A Self-Test GFCI Receptacle

The Pass & Seymour Spec-Grade Dead Front 20A Self-Test GFCI Receptacle delivers automatic ground-fault protection for commercial and residential circuits. Rated 20A at 125VAC, 60 Hz with a NEMA 5-20R configuration, this Class A GFCI conducts an automatic self-test every three seconds and flashes its red LED trip indicator if the device fails and needs replacement. Built with SafeLock™ Protection, it disconnects power to the receptacle if critical internal components are damaged, and it is UL Listed and cULus rated for dependable performance.

Key Features

• Amperage Rating: 20 Amp feed-thru capacity protects downstream receptacles wired in a feed-thru configuration.
• Durable Construction: High-impact-resistant thermoplastic housing with an extra-long strap for secure box mounting.
• Self-Test Protection: Automatic test every three seconds with a red LED trip indicator that flashes when the GFCI should be replaced.
• SafeLock™ Protection: Disconnects power to the receptacle if critical components are damaged and protection is lost.
• Miswire Protection: Prevents line-load reversal miswire, cutting power to the face and downstream receptacles if wired incorrectly.
• Trip Performance: Trip Time of 0.025 sec. nominal per UL Standard, with a Trip Threshold of 5 +/- 1 mA and a 10kA short circuit rating.
• Supply Voltage Range: 102-132 VAC, rated as a 1 ½ HP motor control switch.
• Wiring: Side or internal screw-pressure-plate back wire accepts #10-#14 AWG solid or stranded copper wire, with dual-direction test and reset buttons and an Auto-Ground clip for positive grounding.

Certifications & Compliance

• UL Listed
• cULus Listed
• UL498 Standard
• Meets 2015 UL Requirements
• Exceeds UL 943 Voltage Surge Requirements (survives 100x the required UL 3kA/6kV surge test cycles)
• Federal Spec WC596

Technical Specifications

• CSA Listed: No
• UL Listed: Yes
• Volts: 125
• Amps: 20A
• cULus: Yes
• Federal Spec: Yes

Typical Applications

• Kitchen, Bath, and Laundry Receptacle Circuits
• Commercial and Spec-Grade Electrical Installations
• Feed-Thru Wiring to Protect Downstream Receptacles
• Motor Control Switching Applications
• Renovation and New Construction Wiring

Why Pass & Seymour?

Pass & Seymour builds this Spec-Grade GFCI receptacle with high-impact-resistant thermoplastic construction, a proven SafeLock™ Protection design, and self-test circuitry that exceeds UL 943 surge requirements by 100x. Backed by UL Listing and cULus certification, it delivers the code-compliant, dependable ground-fault protection professional electricians rely on.
