181 Series

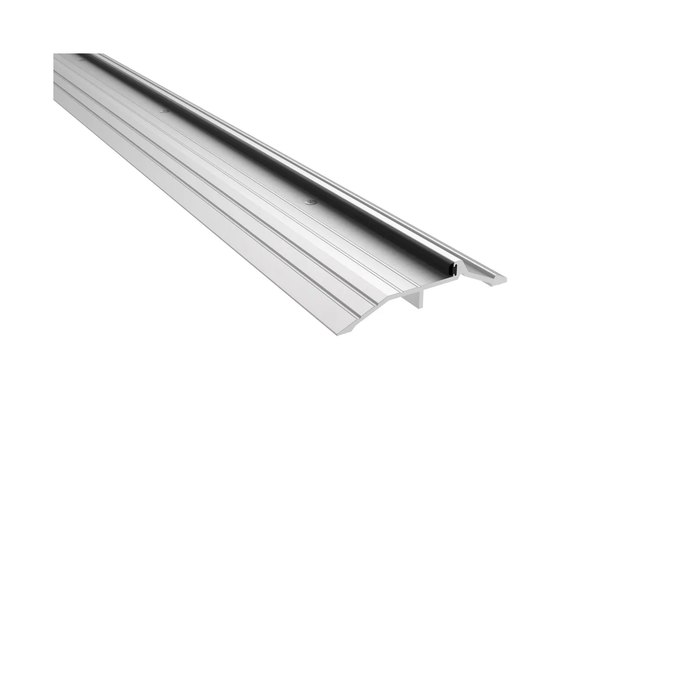

The 181 Series Latching Panic Saddle Threshold has a 5" width and allows for a 3/4" door clearance. It's designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket offering ThermoSeal (T), Eco-V (V), and Pile Brush (P) options. This threshold is sound, air infiltration tested, fire rated, and BHMA certified.
Features
-
Used in conjunction with surface applied vertical rod exit device, or as a stop and a seal at the bottom of door
-
Allow 3/4" door clearance
-
Wood screw standard, other fasteners available
-
Includes Pile, ThermoSeal, or Eco-V insert
-
Fire rated
Benefits
-
Protects against sound, wind, debris, and more
Specifications
-
Base Material: Aluminum, Brass
-
Fasteners: WS #10 x 1.5"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1"
-
Weight: 1 lbs
Models & Inserts
181V
Latching Panic Saddle Threshold with Eco-V Insert
Features
- GREENGUARD Gold certified, eco-friendly material
- Economical bio-based material, contains no phthalates or heavy metals
- Assists building and design teams with emissions criteria in green building rating programs
- Highly versatile, easily deployable for a variety of building applications
- Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
- Meets the Pemko gasketing standards for compression and tensile strength, which provides exceptional energy-saving performance
- Prevents air leakage
- Heavy metal free
- Plasticizers from renewable carbon sources, stabilizers are organic-based and zinc free
- Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild
- cleaning solutions
181P
Latching Panic Saddle Threshold with Pile Brush Insert
Features
- Provides excellent seal to keep out draft, dust, moisture, fumes, light and sound
- Reduces friction to allow for easy sliding of doors
181T
Latching Panic Saddle Threshold with ThermoSeal Insert
Features
- GREENGUARD certified
- Sound tested; helps with acoustic performance
Manufacturer Resources
Product Specs
- Category:
- Door Trim and Accessories
- Model:
- 181
- Subcategory:
- Thresholds
- Dimensions:
- W: 5", H: 1"
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Thresholds
- Product Type:
- Commercial Thresholds
- Substrate:
- Aluminum
- Commercial/Residential:
- Commercial
