Pemko 210 Fire-Rated Door Bottom Shoe with Eco-V Insert, 36 inch, Dark Bronze Anodized Aluminum - angled profile view

Pemko 210 Fire-Rated Door Bottom Shoe with Eco-V Insert - 36" Aluminum Construction

(1 review) Write a Review

Model: 210DV36
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$39.00
$23.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko 210 Fire-Rated Door Bottom Shoe with Eco-V Insert

The Pemko 210 door bottom shoe delivers professional-grade sealing performance for fire-rated door assemblies. The integrated Eco-V insert provides superior air infiltration control, and the extruded aluminum body resists corrosion in demanding commercial environments. Available in Mill Finish, Dark Bronze Anodized, and Painted White aluminum to coordinate with door and frame finishes.

Key Features

  • Fire & Smoke Rated: UL10C fire rated and UL1784 smoke tested for multi-hazard protection in fire-rated door assemblies.
  • BHMA Certified: ANSI/BHMA A156.21 certified for compliance with commercial door hardware performance standards.
  • GREENGUARD Gold Certified: Low chemical emissions - supports healthy indoor air quality in occupied spaces.
  • Eco-V Insert: EV9 Eco-V insert available in gray, black, or white for effective sealing and aesthetic coordination.
  • Aluminum Construction: Extruded aluminum body provides long-term durability and corrosion resistance.
  • 5-Year Warranty: Manufacturer-backed coverage for commercial installations.

Technical Specifications

  • Model: 210
  • Length: 36"
  • Height: 1-5/16"
  • Width: 1-1/4"
  • Material: Aluminum
  • Insert Type: Eco-V Insert
  • Certifications: ANSI/BHMA A156.21, UL10C (Fire Rated), UL1784 (Smoke Tested), Underwriters Laboratory 4L10, GREENGUARD Gold
  • Application: Commercial
  • Warranty: 5 Year

Typical Applications

  • Commercial office buildings and retail establishments
  • Healthcare and educational facilities
  • Government and municipal buildings
  • Multi-family and hospitality properties
  • Industrial and warehouse facilities requiring fire-rated door assemblies

Product Specs

Insert Type:
Eco-V Insert
Warranty:
5 Year
Subcategory:
Door Bottoms & Door Shoes
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
ANSI/BHMA:
ANSI/BHMA A156.21, UL10C (Fire Rated), UL1784 (Smoke Tested), GREENGUARD Gold Certified
Commercial/Residential:
Commercial
Product Model:
210
Product Function:
Door Bottom Shoe
Product Length:
36"
Product Dimension:
H: 1-5/16", W: 1-1/4"
Product Category:
Door Trim and Accessories
Product Substrate:
Aluminum
Department:
Door Hardware

Pemko 210DV36 – Frequently Asked Questions

1) Will the Pemko 210 door shoe work on a fire-rated door assembly?
Yes. The Pemko 210 is UL10C fire rated and UL1784 smoke tested, and it carries ANSI/BHMA A156.21 certification. That combination is what lets it go on a fire-rated opening rather than just a weather-sealed one. It is also GREENGUARD Gold certified, which matters on healthcare, school, and government work where indoor air quality is specified.
2) How much clearance do I need under the door for a Pemko 210 shoe?
The 210 extrusion is 1-5/16 inches high and 1-1/4 inches wide, and it mounts to the face of the door bottom with the vinyl insert hanging below to meet the threshold or floor. Measure your undercut against that insert drop, not the aluminum body. If the door is already tight to the floor, you will need to trim the door bottom before the shoe and insert will clear.
3) If I need a fire-rated bottom seal, can I substitute the Cal-Royal DS-403 or NGP 12T for the Pemko 210?
Not on a rated opening. The Pemko 210 is the one carrying UL10C fire rating, UL1784 smoke testing, and ANSI/BHMA A156.21 certification. Those ratings belong to the specific product and its listing, not to the door shoe category, so a substitution on a fire-rated assembly has to be made on documented ratings. On non-rated exterior or interior openings, the Cal-Royal DS-403 aluminum shoe with vinyl insert or the NGP 12T with its mill aluminum base and vinyl fins are both reasonable choices.
4) What is the closest aluminum door shoe with a vinyl insert to the Pemko 210?
The Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, the same basic build as the Pemko 210: an extruded aluminum shoe wrapping the door bottom with a flexible insert doing the sealing. The 210 carries ANSI/BHMA A156.21, UL10C fire rated, UL1784 smoke tested and GREENGUARD Gold, and uses the Eco-V insert, so on a fire-rated or smoke-rated opening, or where a project is chasing low-emission product credits, the 210 is the one to specify. On an interior non-rated door where you only need a weather and light seal, the DS-403 covers the same profile duty.
5) Which door shoe should I use on an exterior door that sees freezing winters and hot loading dock sun?
The NGP 112 is a neoprene door shoe on an aluminum alloy body rated for a temperature range of -20 F to 200 F, which is the spec to point at when the seal material has to survive a wide swing. The Pemko 210 is an extruded aluminum shoe with an Eco-V insert, ANSI/BHMA A156.21 certified and UL10C fire rated with UL1784 smoke testing, which is what a rated exterior stair or vestibule door needs. Match the shoe to which of those two demands governs the opening.
6) Can a standard aluminum door shoe be swapped in where a Pemko 210 was installed on a fire door?
Not as a like-for-like on a rated assembly. The Pemko 210 is UL10C fire rated and UL1784 smoke tested and certified to ANSI/BHMA A156.21 for commercial use, and those ratings are what let it stay on a fire-rated door. Shoes such as the Cal-Royal DS-403 aluminum door shoe with vinyl insert or the NGP 112 neoprene door shoe are the same family of part and will physically fit a door bottom, but on a rated opening the replacement has to carry the rating itself, so plan on the 210 there and reserve the others for unrated doors.
7) Will the Pemko 210 fit a 1-3/4 inch commercial door?
Yes. At 1-1/4 inches wide the 210 mounts to the face of the door bottom and does not need to span the full door thickness, so standard 1-3/4 inch hollow metal and wood commercial doors take it without issue. Thinner 1-3/8 inch interior doors work the same way. The mounting is through-screwed into the door bottom face.
8) What finishes does the Pemko 210 door shoe come in, and will it match my existing doors?
Three: Mill Finish Aluminum, Dark Bronze Anodized Aluminum, and Painted White Aluminum. Mill is the raw aluminum look that disappears against aluminum storefront and hollow metal in natural finish; dark bronze anodized coordinates with bronze storefront and dark painted frames; painted white suits white frames and painted wood doors. The EV9 Eco-V insert is separately offered in gray, black, or white, so you can match the sweep line to the shoe or deliberately hide it against the floor.
9) Door shoe or a surface door sweep, which one do I want?
A door shoe like the Pemko 210 wraps the bottom edge of the door in an aluminum extrusion and carries the seal in a channel, so the door edge itself is protected and the seal is held in a rigid carrier. A surface sweep just screws to the face of the door and seals the gap, nothing more. Pick the shoe when the door bottom takes abuse, when you need a fire and smoke rated bottom seal on a rated assembly, or when you want a replaceable insert instead of replacing the whole sweep. The 210's Eco-V insert pulls out and swaps when it wears.

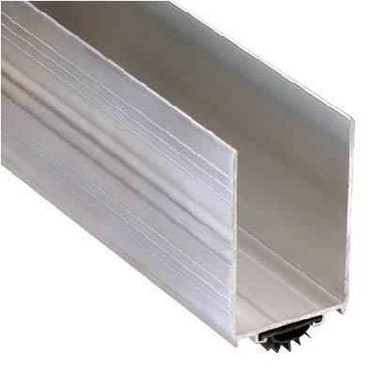

10) Can I just replace the vinyl on a Pemko 210 instead of buying a new shoe?
Yes, that is the point of the design. The 210 uses the EV9 Eco-V insert, which sits in the extrusion's channel and comes in gray, black, or white. When the seal is flattened or torn from traffic, you pull the insert and slide a new one in. The aluminum body stays on the door. On high-traffic openings that is the maintenance item property managers reorder, not the shoe itself.
11) What else could I use instead of the Pemko 210 door shoe?
Three alternates worth knowing. The Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, the closest straight equivalent in form. The NGP 12T is a vinyl door shoe with a mill aluminum base and vinyl fins, so it is the multi-fin sealing approach rather than a single insert. The NGP 112 is a neoprene shoe on an aluminum alloy base rated for a temperature range of -20 F to 200 F, which is the one to look at for freezer vestibules, boiler rooms, and mechanical spaces where vinyl gets stiff or soft.
12) I need to standardize bottom seals across a whole building. Is the Pemko 210 the right choice for a facility standard?
It works well as a standard because one part number covers both rated and non-rated openings. The 210 is UL10C fire rated, UL1784 smoke tested, and A156.21 certified, so specifying it everywhere means the stair doors, corridor cross-doors, and ordinary exterior leaves all take the same shoe and the same EV9 replacement insert. GREENGUARD Gold certification covers the low-emissions requirement on healthcare and school specs. Stock one finish across the building and your maintenance inventory is a box of inserts.
13) What is the difference between the Pemko 210 and the NGP 12T door shoe?
The NGP 12T is a thermoplastic door shoe on a mill aluminum base with vinyl fins, so the seal is a multi-fin thermoplastic wiper. The Pemko 210 is extruded aluminum with the EV9 Eco-V insert, 1-5/16 inch high and 1-1/4 inch wide, and carries ANSI/BHMA A156.21 along with UL10C fire rating and UL1784 smoke testing. If the door schedule calls out a fire or smoke rated assembly, the 210 is the one that answers it; if you are matching an existing run of fin-type shoes on unrated doors, the 12T keeps the sweep style consistent.
14) I need a door shoe in mill aluminum to match existing hardware - which options give me that?
Both the Pemko 210 and the NGP 12T are offered in mill aluminum, the 12T on a mill aluminum base with vinyl fins and the 210 in Mill Finish Aluminum alongside Dark Bronze Anodized and Painted White. If the rest of the opening is anodized bronze or the doors are painted white, the 210 gives you those two coordinating finishes without a field paint step; if plain mill is all the job needs, either will match.
15) Is the Pemko 210 rated for exterior doors and wet locations?
The 210 is a commercial-duty part with an extruded aluminum body, which is what handles exterior exposure without rusting the way a steel carrier would. It is specified for commercial applications, exterior perimeter doors included. On a heavily exposed opening, dark bronze anodized holds up cosmetically better than mill finish since the anodizing is the protective layer.
16) Do I need a threshold to go with a Pemko 210 door shoe?
The shoe seals against whatever surface is under the door, so it performs best landing on a flat threshold rather than an uneven floor or carpet. On an exterior opening you are normally pairing it with a saddle or thermal-break threshold; on an interior smoke-rated opening it can seal to finished floor if that floor is flat and continuous across the opening. The 1-1/4 inch profile width sits within a standard threshold's flat, so it is not a clearance problem in normal commercial construction.
