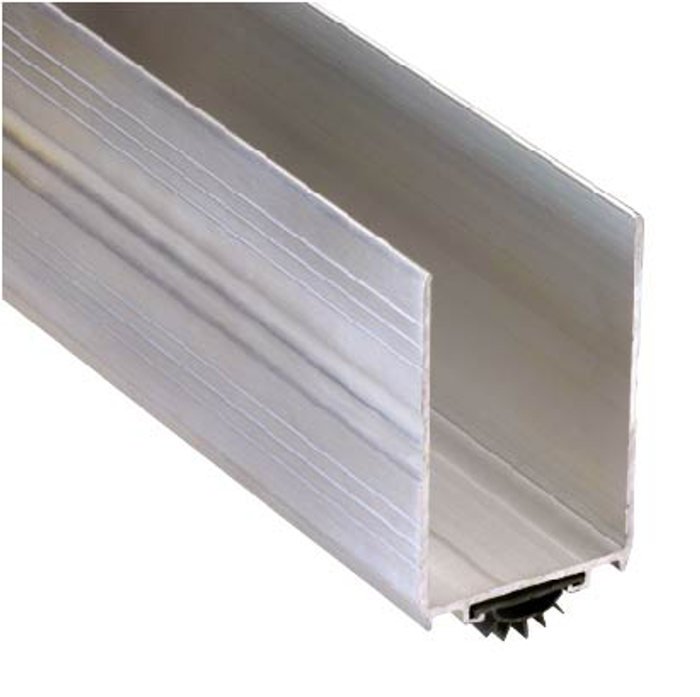

The 221 series U-shaped door shoe with combination kick plate provides added protection to your door. It seals gaps up to .5" at the bottom of the door, protecting against traffic abuse and restoring badly damaged doors. The casing extends up the face and back of the door 3", ideal for doors 1.75" in width. It features Eco-V Fingered or PemkoPrene insert for proper sealing and flexibility in extreme weather.

Features:

• Combination door shoe and kick plate
• Slotted holes for easy adjustment
• Recommended compression of gasket is 1/16"
• Available with PemkoPrene (PK) or Eco-V (V); both are the same shape and size
• Half notch (1/2") and Full notch (1/2") available. Other widths offered on Half Notch, please specify when ordering
• Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered
• Provides protection for the bottom and bottom face of the door
• Blocks unwanted airflow and light, and provides privacy

Specifications:

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Height: 3” (76.2 mm)
• Width: 1-3/4” (44.5 mm)
• Total Height with Insert: Approx. 3-1/2” (89.0 mm)

Finishes:

• A - Mill finish aluminum
• D - Dark bronze anodized
• G - Gold anodized aluminum
