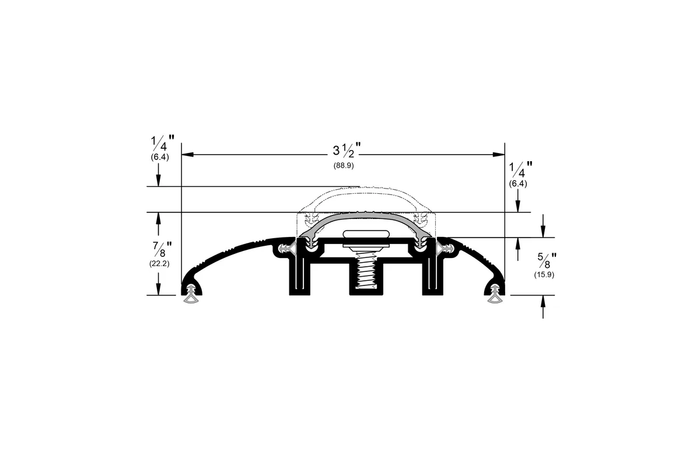

Pemko 249V threshold cross-section dimensional drawing showing 3-1/2" width, 7/8" height, and 5/8" base dimensions in inches and millimeters

Pemko 249V Adjustable Vinyl Top Threshold 3-1/2" Wide

(No reviews yet) Write a Review

Model: 249DV36
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$104.30
$94.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko 249V Adjustable Vinyl Top Threshold: 3-1/2" Wide, UL 10C Certified

The Pemko 249V is an adjustable vinyl top threshold engineered for inswing door applications where consistent weather sealing and fire-rated compliance are required. Its aluminum base carries a vinyl seal section that rises and lowers to compensate for door and floor movement caused by swelling and shrinking, eliminating the need for a separate door sweep or door shoe. UL 10C positive pressure certified and GREENGUARD Gold certified, the 249V is a go-to spec for commercial, institutional, and multi-family projects where both code compliance and indoor air quality matter.

Key Features

  • Adjustable Vinyl Seal: Vinyl top section adjusts to maintain a consistent seal as doors and floors move seasonally - no gap, no drafts.
  • Eliminates Door Sweeps: Integrated vinyl top replaces the need for a separate door sweep or door shoe, reducing hardware count and simplifying installation.
  • Concealed, Weather-Sealed Mounting: Mounting screws are concealed and weather-sealed for a clean finished appearance and long-term performance.
  • UL 10C Positive Pressure Certified: Listed for fire-rated door assemblies requiring positive pressure compliance (UL 4L10).
  • GREENGUARD Gold Certified: Low chemical emissions - suitable for schools, healthcare facilities, and other indoor air quality-sensitive environments.
  • Replacement Components Available: Vinyl insert and replacement feet insert are available separately for long-term serviceability.

Technical Specifications

  • Width: 3-1/2"
  • Overall Height: 7/8"
  • Base Material: Aluminum
  • Seal Material: Vinyl
  • Available Finishes: Mill Finish Aluminum, Dark Bronze Anodized Aluminum
  • Available Lengths: 36", 48", 72", 96", 120"
  • Door Application: Inswing doors
  • Fire Rating: UL 10C Positive Pressure / UL 4L10 Listed
  • Environmental: GREENGUARD Gold Certified

Typical Applications

  • Commercial office buildings and retail storefronts
  • Educational facilities and healthcare institutions
  • Multi-family and multi-tenant residential properties
  • Government and municipal buildings
  • Fire-rated door assemblies requiring UL 10C compliance
  • Projects specifying low-emission materials (LEED, WELL, or similar)

Why Pemko 249V?

Pemko has been the threshold specification standard for commercial construction for decades. The 249V combines adjustability, fire-rated certification, and environmental compliance in a single profile - reducing the hardware schedule and simplifying the punch list. Available in five cut-to-length or stock lengths and two finishes to match aluminum storefront or dark bronze door frames.

Product Specs

Subcategory:
Thresholds
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Thresholds
Product Type:
Residential Thresholds and Sills for Pre-Hung Openings
Product Model:
249V
Product Dimension:
W: 3-1/2" | H: 7/8"
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Pemko 249DV36 – Frequently Asked Questions

1) Will the Pemko 249V threshold work on an outswing door?
No. The 249V is built for inswing openings only. The vinyl top section sits where the inswinging door face closes against it, so on an outswing door the seal is on the wrong side of the stop and you get no contact. For an outswing opening you want a saddle or offset threshold made for that swing, not the 249V.
2) Do I still need a door sweep or door shoe if I install a 249V threshold?
No, and that is the point of the profile. The adjustable vinyl top rises and lowers against the bottom of the door, so it does the sealing a sweep or shoe would normally do. One less piece on the hardware schedule and one less thing to fit to the door bottom.
3) Is the Pemko 249V approved for a fire rated door assembly?
Yes. The 249V is UL 10C positive pressure certified and listed under UL 4L10, so it can go into fire rated door assemblies that have to meet positive pressure. That is what lets it be specified on rated corridor and stair openings rather than only on exterior weather work.
4) How wide and how tall is the Pemko 249V threshold, and will it clear my door bottom?
The 249V measures 3-1/2 inches wide with an overall height of 7/8 inch. The 7/8 inch figure is the full stack including the vinyl top, so the door bottom has to be cut to close over that height at the sill. The 3-1/2 inch width sets how much of the floor and sill it covers on either side of the door.
5) Which finish of the 249V should I order to match aluminum storefront versus bronze frames?
Two finishes are offered. Mill Finish Aluminum is the plain natural aluminum that reads with clear anodized storefront and standard aluminum frames. Dark Bronze Anodized Aluminum matches dark bronze storefront, entrances and bronze painted hollow metal. Both are the same aluminum base and vinyl seal, so the choice is appearance only.
6) Why does an adjustable threshold matter instead of a fixed one on an exterior door?
Doors and floors move with the seasons, and a fixed threshold that sealed tight in July leaves a daylight gap in January. The 249V vinyl top section raises and lowers to take that movement up, so the seal stays closed without pulling the threshold and re-shimming it. On a building with a lot of exterior leaves, that is the difference between one install and a recurring callback.
7) Can I replace just the vinyl on a Pemko 249V instead of pulling the whole threshold?
Yes. The vinyl insert and the replacement feet insert are both sold separately, so when the seal takes traffic wear you change the insert and leave the aluminum base and its anchors in the floor. For a property manager running a lot of entrances, that keeps the repair to a parts swap.
8) Does the Pemko 249V meet low emission requirements for a school or hospital project?
The 249V is GREENGUARD Gold certified for low chemical emissions, which is the certification that gets asked for on schools, healthcare and other indoor air quality sensitive work, and it is the credential typically cited on LEED and WELL submittals. Combined with the UL 10C positive pressure listing, it covers both the rated door and the air quality line on the same spec.
9) Are the mounting screws on the 249V exposed once it is installed?
No. Mounting screws on the 249V are concealed and weather sealed, so water is not tracking down the fastener holes into the substrate and the finished sill reads clean. It also means nobody is backing the screws out from the outside.
10) What material is the Pemko 249V threshold made of, and will it hold up to commercial traffic?
Aluminum base with a vinyl seal section. The aluminum carries the foot traffic and the vinyl only does the sealing, which is why the vinyl is the serviceable part and available as a separate insert. Dark Bronze is anodized rather than painted, so the color is in the surface of the aluminum instead of sitting on top of it.
