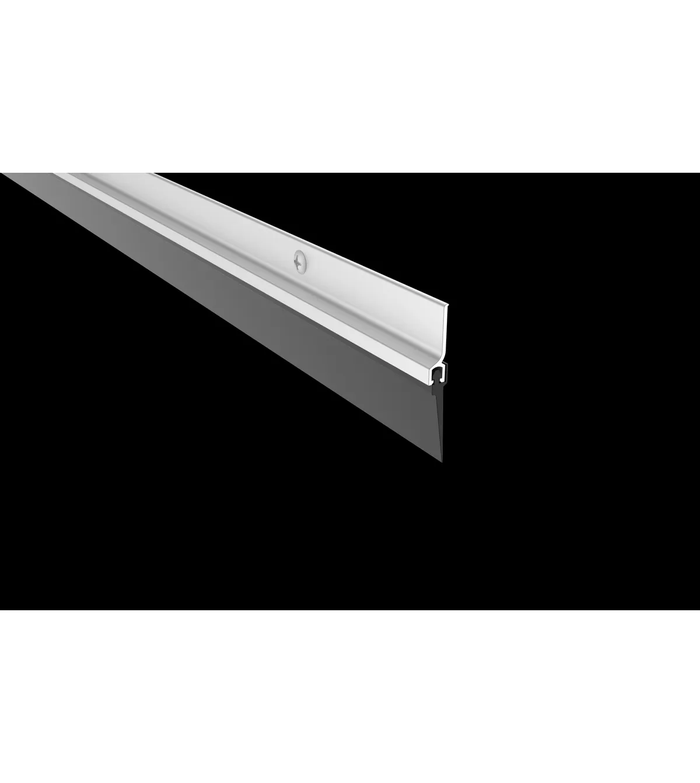

Pemko 307 Door Bottom, 36", PemkoPrene Insert, Mill Aluminum Finish

Pemko 307 Commercial Door Bottom Sweep with PemkoPrene Insert - 36" Length

(No reviews yet) Write a Review

Model: 307APK 36
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$17.22
$15.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko 307 Commercial Door Bottom Sweep with PemkoPrene Insert - 36"; Length

Professional Surface Plate Door Bottom Seal Solution

The Pemko 307 Door Bottom Sweep features a 36"; aluminum surface plate design with 1"; PemkoPrene insert for superior sealing performance in commercial applications. This professional-grade door bottom measures H: 1-7/8", W: 1/4"; and combines the flexibility of natural rubber with thermoplastic processing advantages. GREENGUARD Gold Certified with UL 1784 air leakage and UL 10C fire rating compliance for demanding commercial environments.

Professional Features & Benefits

  • Optimal Dimensions: 36"; length with H: 1-7/8", W: 1/4"; profile designed for standard commercial door applications.
  • Advanced PemkoPrene Insert: 1"; rubber-like material combines flexibility and durability of natural rubber with thermoplastic processing advantages.
  • Heavy-Duty Construction: Aluminum substrate provides exceptional durability and corrosion resistance for long-term commercial performance.
  • Chemical Resistance: Outstanding resistance to cleaning fluids and disinfectants for healthcare and institutional applications.
  • Multiple Certifications: GREENGUARD Gold Certified, UL 1784 air leakage tested, UL 10C fire rated, and ANSI/BHMA A156.22 compliant.
  • Low Operating Force: Everyday resilience with minimal impedance to door opening and closing operations.
  • Versatile Applications: Suitable for general purpose gaskets, weatherstripping, and commercial glazing seals.
  • Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Insert Type: PemkoPrene
  • Product Category: Door Trim and Accessories
  • Product Dimension: H: 1-7/8", W: 1/4";
  • Product Group: Door Trim and Accessories
  • Product Length: 36";
  • Product Model: 307
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Substrate: Aluminum
  • Product Type: Door Sweeps and Bottoms
  • Subcategory: Door Sweeps
  • UL Listing Type: Smoke Tested - UL1784, Fire Rated - UL10C, Underwriters Laboratory 4L10, GREENGUARD Gold Certified
  • Warranty: 5 Year

Professional Applications

  • Commercial Office Buildings
  • Healthcare Institutions
  • Educational Facilities
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Pemko Quality?

Pemko 307 Door Bottom Sweeps deliver professional-grade sealing performance with aluminum substrate construction and advanced PemkoPrene insert technology rated for UL 1784 air leakage and UL 10C fire testing. 5 Year warranty coverage and GREENGUARD Gold certification ensure reliable performance in demanding commercial environments. Engineered for applications requiring superior chemical resistance and low-maintenance operation where dependable door sealing is essential.

Product Specs

Insert Type:
PemkoPrene
Warranty:
5 Year
Subcategory:
Door Sweeps
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Sweeps and Bottoms
Commercial/Residential:
Commercial
UL Listing Type:
Smoke Tested - UL1784, Fire Rated - UL10C, Underwriters Laboratory 4L10, GREENGUARD Gold Certified
Product Model:
307
Product Length:
36"
Product Dimension:
H: 1-7/8", W: 1/4"
Product Category:
Door Trim and Accessories
Product Substrate:
Aluminum
Department:
Door Hardware

Pemko 307APK 36 – Frequently Asked Questions

1) Will the Pemko 307 door bottom sweep work on a fire rated door?
Yes. The Pemko 307 door bottom is Fire Rated to UL 10C and Smoke Tested to UL 1784, so it can go on a rated opening. That combination is what an inspector looks for on a labeled door: UL 10C covers the fire test, UL 1784 covers air leakage past the assembly. It is also GREENGUARD Gold Certified, which matters on schools and healthcare jobs with indoor air quality requirements.
2) How much clearance under the door do I need for a Pemko 307 sweep?
The 307 is a surface applied sweep with a profile measuring 1-7/8 by 1/4 inches, mounted to the face of the door near the bottom rail. The 1/4 inch is the depth it stands off the door face, so it needs a clear swing path over the threshold rather than a large undercut. The PemkoPrene insert bridges the gap between the door bottom and the floor or threshold, so measure your actual undercut before ordering to be sure the insert reaches without dragging.
3) What is the closest equivalent to a Pemko 307 door bottom sweep from another brand?
The Cal-Royal BTN-112 door bottom sweep is the nearest match in construction: it uses an extruded aluminum retainer with a neoprene insert, the same surface-plate-plus-flexible-insert arrangement as the Pemko 307, which pairs an aluminum substrate with a PemkoPrene insert. The NGP 197NA neoprene door sweep with an anodized aluminum housing is the other close counterpart. All three mount to the face of the door bottom and seal against the threshold with a flexible strip carried in an aluminum carrier. The difference is the insert compound: PemkoPrene on the 307 versus neoprene on the BTN-112 and the 197NA.
4) Which door sweep should I use instead of a Pemko 307 on a high heat or freezer door?
Use the NGP 200SA silicone door sweep with an anodized aluminum housing, which is rated for a temperature range of -100 F to 500 F. The Pemko 307 carries a PemkoPrene insert selected for chemical resistance to cleaning fluids and disinfectants, which is what makes it a healthcare and institutional seal; the 200SA silicone insert is the one specified by temperature. If the opening is a boiler room, kitchen line, or walk-in cooler, specify the 200SA and keep the 307 for interior corridor and office openings.
5) What is PemkoPrene and how is it different from a vinyl or neoprene door sweep insert?
PemkoPrene is a rubber-like insert material that combines the flexibility of natural rubber with thermoplastic processing. On the 307 it is a 1 inch insert carried in an aluminum retainer. Practically, it stays pliable and resists cleaning fluids and disinfectants, which is why it turns up on healthcare and institutional jobs where floors get mopped with harsh chemicals daily. A vinyl insert like the one on the NGP 101V is the more basic option; a neoprene insert like the NGP 197NA is the traditional commercial rubber. If you need extreme temperature range instead of chemical resistance, the NGP 200SA is a silicone sweep rated from -100 F to 500 F.
6) Is the Pemko 307 sweep suitable for a hospital or school door that gets cleaned with disinfectants?
That is one of the cases the PemkoPrene insert is built for. It resists cleaning fluids and disinfectants, so daily mopping and wipe-downs at the door bottom will not break it down the way some inserts do. Add the GREENGUARD Gold certification for indoor air quality and the UL 10C fire rating for rated corridor doors, and it covers what most healthcare and education facility specs are asking for at the door bottom.
7) What is the difference between a door bottom sweep and a door shoe?
A sweep like the Pemko 307 surface mounts to the face of the door near the bottom and its insert reaches down to the floor or threshold. A door shoe wraps the bottom edge of the door itself. The 307 is the surface plate type, which means you can install it on an existing hung door without pulling the door off the hinges, and you can adjust the height at install by where you set the plate. That is usually the faster retrofit on an occupied building.
8) I need to replace a worn out neoprene door sweep on a rated door. Can I use the Pemko 307?
Yes, provided the door bottom clearance suits it. The 307 is a face-mounted aluminum sweep at 1-7/8 by 1/4 inches with a 1 inch insert, and it carries UL 10C and UL 1784, so it holds the rating on a labeled door. Compared to a straight neoprene replacement such as the NGP 197NA, you are swapping to PemkoPrene, which adds the chemical resistance. If the existing sweep's mounting holes do not line up you will drill new ones, so plan on fresh fasteners rather than reusing the old pattern.
9) What is the difference between a vinyl door sweep and the Pemko 307 PemkoPrene sweep?
The NGP 101V is a vinyl door sweep in an aluminum alloy housing; the Pemko 307 uses a PemkoPrene insert, a rubber-like material that combines the flexibility and durability of natural rubber with thermoplastic processing advantages, in an aluminum surface plate measuring H 1-7/8 inch by W 1/4 inch. Vinyl is the plainer weatherstrip compound and is common on exterior and utility openings. PemkoPrene is the one to specify where the sweep will be washed down repeatedly, because the 307 is built for resistance to cleaning fluids and disinfectants in healthcare and institutional buildings, and it is GREENGUARD Gold certified for indoor air quality on projects that track it.
10) Does the Pemko 307 come in a painted or anodized finish, or just mill aluminum?
The 307 as stocked is an aluminum sweep in Mill Finish Aluminum, in the 36 inch length. Mill finish is the raw, unfinished aluminum look. If the job calls for a darker or anodized housing to match dark bronze or black frames, the NGP 197NA and NGP 200SA both use an anodized aluminum housing.
11) Will a surface mounted door sweep make the door harder to open or close?
The 307 is built for low operating force, so the insert gives minimal resistance as the door swings. That matters where doors are on closers with a set closing force, and on openings where an accessible opening force has to be maintained. The insert makes contact and seals without loading the door up the way an over-tight seal does.
12) Is the Pemko 307 rated for commercial use or is it a residential weatherstrip?
Commercial. The 307 is an aluminum substrate sweep with a fire and smoke rated listing, intended for commercial door hardware use rather than residential weatherstripping. It shows up on office buildings, healthcare, schools, retail, warehouse, multi-tenant residential, and municipal work.
13) Can I mix a Cal-Royal BTN-112 and a Pemko 307 on doors in the same building?
Both are surface-applied door bottom sweeps that fasten to the face of the door and seal down to the floor, so either one will work on a standard flat-bottom commercial door. The Cal-Royal BTN-112 uses an extruded aluminum retainer with a neoprene insert; the Pemko 307 uses an aluminum substrate with a PemkoPrene insert on a 1-7/8 inch high by 1/4 inch wide profile in a mill finish aluminum. Where they differ visibly is the retainer profile and finish, so on doors facing each other in the same corridor, run one part number for a matched look and keep the other for back-of-house.
14) Which neoprene door sweep is comparable to the Pemko 307 for an exterior opening?
The NGP 197NA neoprene door sweep with an anodized aluminum housing is the neoprene counterpart. Neoprene and the PemkoPrene insert on the Pemko 307 are both flexible rubber-type strips carried in an aluminum housing, and both install to the door face. The 197NA housing is anodized; the 307 comes in a mill finish aluminum with a 1-7/8 inch high by 1/4 inch wide profile in a 36 inch length. Specify by the housing finish you want at the opening and by the door width you are covering.
