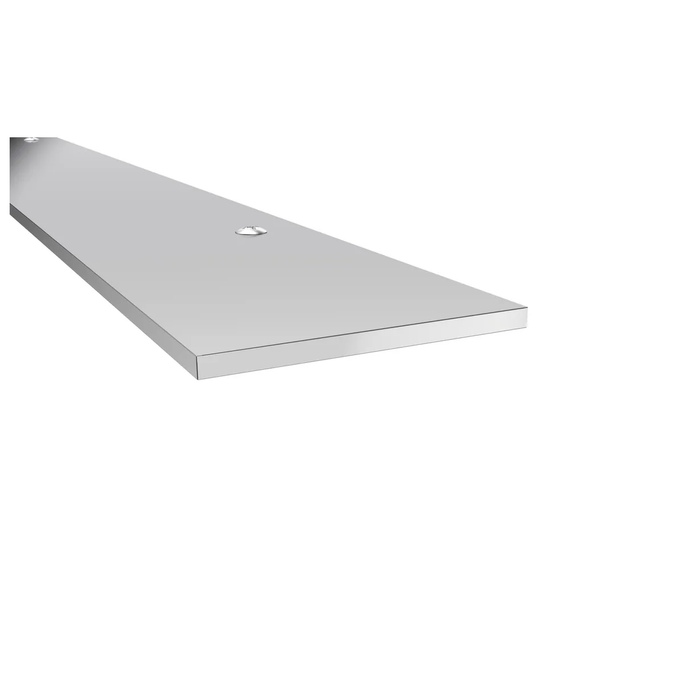

Pemko 357SPXTB 84" Fire Rated Overlapping Astragal with Thru-Bolt Mounting in Galvannealed Steel

Pemko 357SPXTB 84" Fire Rated Overlapping Astragal with Thru-Bolt Mounting in Galvannealed Steel

(No reviews yet) Write a Review

Model: 357SPXTB-84
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$87.19
$85.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko 84"; Fire Rated Overlapping Astragal with Thru-Bolt Mounting in Galvannealed Steel

Professional Fire Door Sealing Solution

The Pemko 84"; Fire Rated Overlapping Astragal provides essential sealing for pairs of fire doors with galvannealed steel construction and secure thru-bolt mounting. This UL 10C positive pressure fire rated astragal measures 84"; in length with 2"; width and 1/8"; height profile, specifically designed to maintain NFPA 80 compliance requirements for commercial fire door applications.

Professional Features & Benefits

  • Precise Dimensions: 84"; length with 2"; width and 1/8"; height profile designed for optimal overlapping door seal performance in fire door pairs.
  • Fire Door Compliance: UL 10C positive pressure fire rated and air infiltration tested to maintain NFPA 80 requirements for pairs of fire doors.
  • Durable Construction: Galvannealed steel substrate provides corrosion resistance and long-term durability in commercial applications.
  • Secure Mounting: Thru-bolt installation system ensures reliable attachment and maintains fire rating integrity throughout the door assembly.
  • Professional Testing: Underwriters Laboratory 4L10 certified with air infiltration testing for verified sealing performance in fire-rated applications.
  • Commercial Grade Engineering: Specifically designed for commercial door applications requiring fire safety compliance and reliable sealing performance.
  • Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection in demanding commercial environments.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Features: When Installing Pairs of Fire Doors Care Must be Taken to Maintain the Requirements of NFPA 80
  • Product Category: Door Trim and Accessories
  • Product Dimension: W: 2", H: 1/8";
  • Product Group: Door Trim and Accessories
  • Product Length: 84";
  • Product Model: 357
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Substrate: Aluminum
  • Product Type: Astragals
  • Subcategory: Astragals
  • UL Listing Type: Air Infiltration Tested; Fire Rated- UL10C- Positive Pressure; Underwriters Laboratory 4L10
  • Warranty: 5 Year

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Pemko Quality?

Pemko astragal products deliver professional-grade reliability with galvannealed steel construction and UL 10C positive pressure fire rating for demanding commercial applications. Backed by a 5 Year warranty and Underwriters Laboratory 4L10 certification, this astragal ensures NFPA 80 compliance where dependable fire door sealing performance is essential.

Product Specs

Features:
When Installing Pairs of Fire Doors Care Must be Taken to Maintain the Requirements of NFPA 80
Warranty:
5 Year
Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Astragals
Subcategory:
Astragals
Commercial/Residential:
Commercial
UL Listing Type:
Air Infiltration Tested; Fire Rated- UL10C- Positive Pressure; Underwriters Laboratory 4L10
Product Model:
357
Product Length:
84"
Product Dimension:
W: 2", H: 1/8"
Product Substrate:
Aluminum
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Pemko 357SPXTB-84 – Frequently Asked Questions

1) What is an overlapping astragal and do I need one on my double doors?
An overlapping astragal mounts to the face of one leaf and laps over the gap at the meeting stile, so the pair seals against smoke, light and air where the two doors come together. You need one on a pair of fire doors that don't have a mullion. If your pair is non-rated and you mainly want a weather seal, a T-astragal that sets into the gap, like the Cal-Royal EAST-501 with a vinyl insert, is the other approach. If you only want to shield the lock area rather than the full height, that's a lock astragal such as the Trimco 5001 or 5002, and it is a different part entirely.
2) Is a Trimco 5001 or 5002 lock astragal a substitute for the Pemko 357SPXTB?
No. The Trimco 5001 and 5002 are lock astragals in stainless steel, used with mortise or cylindrical locks in the 5001 case and with cylindrical locks in the 5002 case at 1-9/16 inch by 6 inch. Those are short pieces that cover the lock area of a meeting stile. The Pemko 357SPXTB is a full-height 84 inch overlapping astragal running the length of the door edge, 2 inches wide with a 1/8 inch height profile. They solve different problems and are not interchangeable.
3) How does the Pemko 357SP astragal attach to the door?
Thru-bolt mounting. Bolts pass all the way through the door leaf rather than relying on sheet metal screws into the door face, which is what holds the astragal in place under the pressures of a fire test. Plan for the door to be drilled through at the mounting hole pattern, and coordinate that with any existing lock or exit device prep on the same stile.
4) What else could I use instead of the Pemko 357 on an 84 inch pair of doors?
A few directions depending on what the opening needs. The NGP 109N is an overlapping astragal in the same 84 inch length with a neoprene seal, so you get a compressible contact at the meeting stile. The NGP 176A 84 is an 84 inch overlapping astragal in anodized aluminum if you want a finished aluminum look. The NGP 139SP is a steel astragal with 3/4 inch overlap coverage, and the NGP 139A is the solid anodized aluminum version. Match the one you pick to whether the opening is fire rated.
5) Will a 1/8 inch thick astragal clear my door closer and coordinator on a pair?
The 357 profile stands only 1/8 inch off the door face across a 2 inch width, so it adds very little projection at the meeting stile. On a pair with an overlapping astragal you still need a coordinator so the leaf carrying the astragal closes last, otherwise the doors will not latch in sequence, which is part of keeping the opening within NFPA 80.
6) Is this Pemko astragal rated for commercial use or is it a residential weatherstrip?
It's a commercial door hardware item, built for office buildings, schools, hospitals, retail, warehouses, multi-tenant residential and government facilities. It is not a residential-grade weatherstrip.
7) Does the Pemko 357 astragal help with air leakage, not just fire?
It's air infiltration tested in addition to the UL 10C positive pressure fire rating, so it's doing double duty on a stair or corridor pair where you want to cut drafts and smoke movement as well as satisfy the fire listing.
8) I need a metal astragal with no seal material. Is there one instead of the Pemko 357SPXTB?
The NGP 139A is a solid metal astragal in anodized aluminum construction, with no gasket insert. The Pemko 357SPXTB is an overlapping astragal at 84 inch length, 2 inches wide with a 1/8 inch height profile, and is air infiltration tested along with its UL 10C positive pressure fire rating. If the specification calls for a bare metal lap without a seal, the 139A is the straightforward choice; if the opening is rated, stay with the fire rated profile.
