Pemko EXT Series Aluminum Threshold Width Extenders, 3/4", 2", and 3" Widths

Pemko EXT Series Aluminum Threshold Width Extenders, 3/4", 2", and 3" Widths

(No reviews yet) Write a Review

Model: EXT2D 36
$41.25
$28.10
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$41.25
$28.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

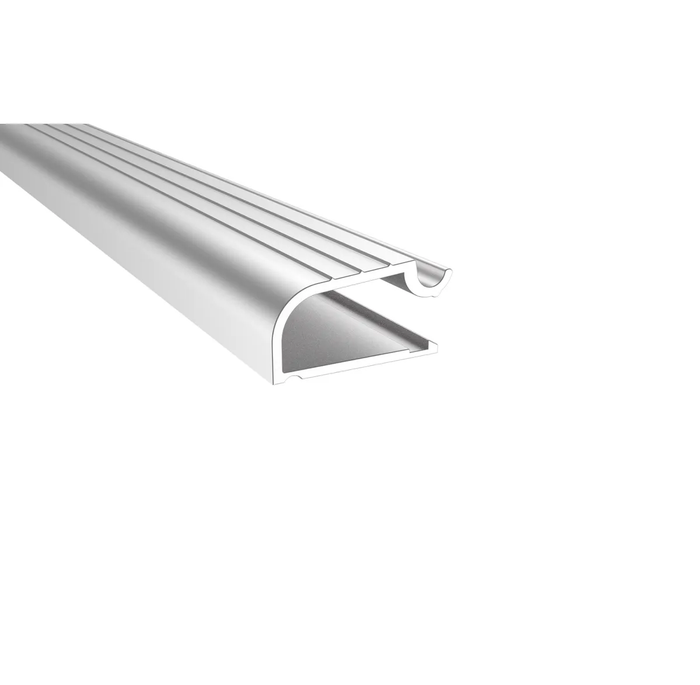

Pemko EXT Series Aluminum Threshold Width Extenders

Professional Threshold Extension Solution for Pre-Hung Doors

The Pemko EXT Series Aluminum Width Extenders hook directly onto Pemko thresholds to accommodate wider sill dimensions on pre-hung door openings. They fit all 4-7/8" and 5-3/4" wide extrusions and are available for jambs up to 8-3/4" wide. Choose from 3/4", 2", or 3" extension widths; lengths run from 6" minimum to 148" maximum with custom-cut capability. Supplied un-drilled, without screws or nails.

Features & Benefits

  • Three Extension Widths: 3/4", 2", and 3" options with custom-cut capability to match your sill dimension exactly.
  • Broad Extrusion Compatibility: Fits all 4-7/8" and 5-3/4" wide extrusions; extenders available for jambs up to 8-3/4" wide.
  • Flexible Length Range: 6" minimum to 148" maximum to cover single doors through wide commercial openings.
  • Durable Aluminum Construction: Corrosion-resistant aluminum base for long-term performance in residential and light commercial applications.
  • Secure Hook-On Design: Latching component at the lower end of the slope locks onto compatible Pemko thresholds without fasteners.
  • Low Profile: 1/2" overall height maintains proper door clearance after installation.
  • Two Finish Options: Mill Finish Aluminum (A) and Dark Bronze Anodized Aluminum (D) to match existing threshold and frame finishes.

Technical Specifications

  • Material: Aluminum
  • Extension Widths: 3/4", 2", 3"
  • Overall Height: 1/2"
  • Length Range: 6" to 148" (custom cut available)
  • Compatible Extrusion Widths: 4-7/8" and 5-3/4"
  • Maximum Jamb Width: 8-3/4"
  • Finishes: Mill Finish Aluminum (A), Dark Bronze Anodized Aluminum (D)
  • Fasteners: Furnished un-drilled, no screws or nails included
  • Series: EXT

Typical Applications

  • Pre-hung residential door installations
  • Multi-unit residential and light commercial entrances
  • Renovation and retrofit projects requiring sill width extension
  • Threshold repair and upgrade on existing Pemko sill systems

Product Specs

Subcategory:
Door Thresholds
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Thresholds
Product Type:
Residential Thresholds and Sills for Pre-Hung Openings
Product Model:
EXT
Product Dimension:
W: 3/4", 2", or 3"; H: 1/2"; L: 6" to 148"
Product Category:
Door Trim and Accessories
Department:
Door Hardware
Product Substrate:
Aluminum
Series:
EXT Series

Pemko EXT2D 36 – Frequently Asked Questions

1) Can I widen an existing threshold with the Pemko EXT extender, or do I have to pull the whole sill?
The sill stays. A latching component at the lower end of the extender's slope hooks onto the threshold extrusion, so the existing Pemko sill is not removed and the joint itself needs no fasteners. The requirement is the extrusion width: it has to be a 4-7/8 inch or 5-3/4 inch Pemko extrusion for the hook to engage. This is the usual fix on a pre-hung opening where the jamb turned out deeper than the threshold that shipped with it, and on renovation work where a new floor or a thicker jamb left the sill short of the exterior edge.
2) Will a Pemko EXT sill extender hook onto another brand of threshold?
No. The EXT extenders hook directly onto Pemko thresholds, and the latch on the underside of the slope is cut to engage those 4-7/8 inch and 5-3/4 inch Pemko extrusions. On a competitor's sill there is nothing for it to grab. If the threshold in the opening is not Pemko, the fix is a new full-width threshold sized to the jamb rather than an extender.
3) What length Pemko EXT extender do I need, and can one piece cover a double door opening?
Stock lengths are 36, 42, and 72 inches, and the series runs from a 6 inch minimum to a 148 inch maximum with custom cutting. A 72 inch piece spans a pair of 36 inch doors in one run, and the 148 inch maximum covers wide commercial entrances without a seam. On the short end, the 6 inch minimum is there for patching a section rather than doing a full opening. Order the extender to the same length as the threshold it is hooking onto, not to the door width, since the sill usually runs jamb to jamb.
4) Do Pemko EXT threshold extenders come with screws and pre-drilled holes?
Neither. The EXT extenders are furnished un-drilled with no screws or nails supplied, so plan on drilling and providing your own fasteners for whatever the sill sits on, concrete, wood subfloor, or a mudsill. The upside of an un-drilled extrusion is that you set the hole pattern to miss the anchors already in the existing threshold instead of fighting a factory pattern.
5) Can the EXT aluminum extender be cut down on site to match my sill?
Yes, and it is normal practice. The extrusion is aluminum and ships un-drilled, so it cuts with a standard non-ferrous blade and you lay out the fastener holes after the piece is fitted. Custom cut lengths are available down to a 6 inch minimum if you would rather have it arrive at size. When you cut, dry-fit the piece on the threshold hook first: the extender registers off the existing extrusion, so a square end cut is what keeps the outboard edge parallel to the sill.
6) How much height does a Pemko EXT extender add at the door opening?
The extender profile is 1/2 inch overall in height. That is the full section, hook to top surface, so it is a low ramp off the outboard edge of the threshold rather than a second step. Compare that half inch against the height of the threshold it hooks onto when you are checking clearance under a sweep or a door bottom, and against the finished exterior surface it lands on.
7) What finishes does the Pemko EXT extender come in, and can I get every width in dark bronze?
Two finishes: Mill Finish Aluminum (A) and Dark Bronze Anodized Aluminum (D). Both are offered across all three extension widths and all three stock lengths, so a 3 inch extender in dark bronze at 72 inches is a real combination, as is a 3/4 inch mill finish at 36 inches. Dark bronze anodized is the one that matches the bronze thresholds and dark frames common on multi-family and light commercial entrances; mill finish is the plain aluminum that pairs with an unfinished or clear-anodized sill.
8) What is the difference between the Pemko EXT3/4, EXT2, and EXT3?
Only the extension width. EXT3/4 adds 3/4 inch, EXT2 adds 2 inches, and EXT3 adds 3 inches to the outboard side of the threshold. Everything else is common across the three: aluminum extrusion, 1/2 inch overall height, the same hook that latches onto 4-7/8 inch and 5-3/4 inch Pemko extrusions, and the same 6 to 148 inch length range in either mill or dark bronze anodized. Pick the model by the gap you measured between the existing sill edge and the jamb.
9) Will an aluminum sill extender hold up on an exposed entry that gets weather?
Aluminum is the base material, and it does not rust the way a steel section would at a wet threshold. Between the two finishes, the dark bronze is anodized, which puts a hard oxide layer over the aluminum; mill finish is bare aluminum and will grey over time in the weather. For an exposed entrance on a rental property or a walk-up where appearance matters, the anodized bronze is the one that stays looking consistent with the frame.
