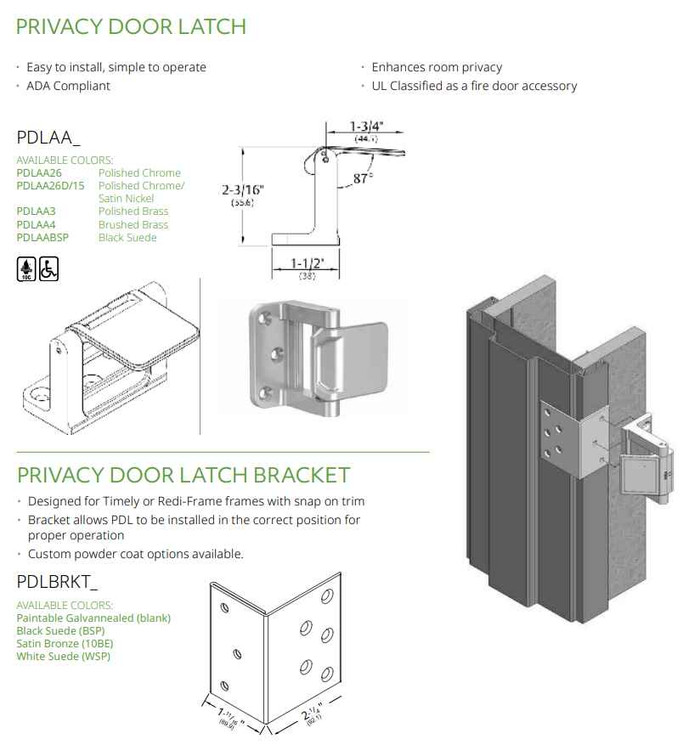

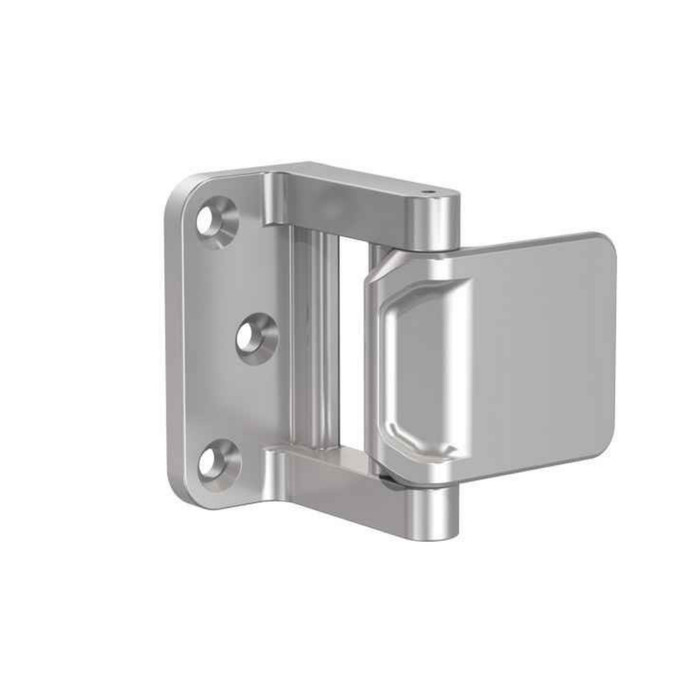

Pemko PDLAA Hospitality Privacy Door Latch with UL Fire Door Classification and ADA Compliance
Contemporary Privacy Solution for Hospitality and Residential Applications
The Pemko PDLAA Privacy Door Latch delivers a sleek, contemporary design for interior corridor openings in hotels, dormitories, and residential facilities. This UL Classified fire door accessory meets NFPA 80 Sections 5.2.4.2 and 5.2.13.3 requirements with 87-degree door opening capability and zinc alloy construction. The redesigned latch maintains compatibility with existing Pemko accessories while incorporating silicone bumpers for enhanced door protection and includes #12 x 1 3/4"; Phillips flat head screws for installation.
Professional Features & Benefits
- UL Fire Door Classification: UL Classified as a fire door accessory meeting NFPA 80-2016 requirements for safe operation without interfering with fire door function.
- ADA Compliant Design: Meets ADAAG-2010 and ANSI A117.1-2017 requirements for operation and reach range with proper installation.
- Enhanced Door Protection: Silicone bumpers provide additional protection against door and frame damage while preventing the door from being held open.
- Legacy Compatibility: Compatible with existing Pemko accessories and easily retrofittable with legacy Pemko PDL latch systems for seamless upgrades.
- Contemporary Styling: Sleek, modern design enhances interior aesthetics while maintaining simple operation for guest convenience.
- Privacy with Identification: Allows door to be opened for visitor identification while maintaining guest or resident privacy and security.
- NFPA 80 Compliance: Meets NFPA 80-2016 5.1.2.3.3 and 5.2.3.5.2(10) standards for auxiliary hardware items on fire-rated doors.
- Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection.
Professional Applications
- Hospitality and Hotel Properties
- University and Student Housing
- Military Housing Facilities
- Condominium Complexes
- Apartment Buildings
- Private Residential Properties
- Dormitory and Institutional Housing
Why Choose Pemko Quality?
Pemko PDLAA Privacy Door Latch products deliver professional-grade reliability with UL fire door classification and NFPA 80 compliance for demanding hospitality and residential applications. The contemporary design incorporates silicone bumpers and legacy compatibility while meeting ADA accessibility requirements with 5 Year warranty coverage. Engineered for reliable privacy protection where guest safety and code compliance are essential.
Product Documentation & Resources
Manufacturer Resources
Product Specs
- Product Group:
- Door Trim and Accessories
- Fasteners:
- Supplied with #12 x 1 3/4" Phillips Flat Head screws
- Warranty:
- 5 Year
- Product Subgroup:
- Door Latches and Catches
- Product Type:
- Hospital Latches
- Subcategory:
- Hospitallity Products
- ANSI/BHMA:
- Meets NFPA 80-2016 5.1.2.3.3
- Commercial/Residential:
- Commercial
- Lock Function:
- Privacy/Bed/Bath
- Product Model:
- PDLAA
- Product Function:
- Privacy/Bed/Bath
- Door Opening Size:
- 87 Degrees
- Product Category:
- Mechanical Locks
- Product Substrate:
- Zinc Alloy
- Department:
- Door Hardware
