Pemko PDLBRKT Privacy Door Latch Bracket

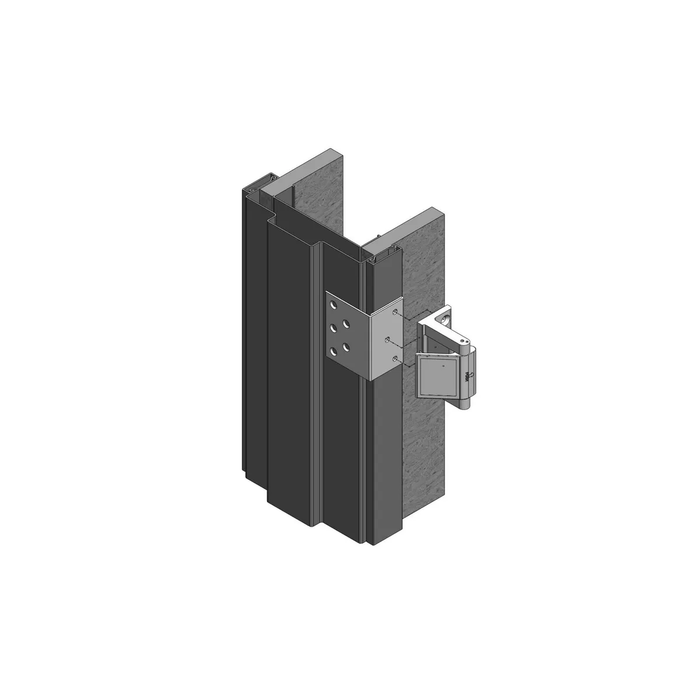

Professional Privacy Solution for Surface-Mounted Sliding Doors
The PDLBRKT Privacy Door Latch Bracket is designed for Timely or Redi-Frame frames with snap-on trim. Bracket allows PDLAA to be installed in the correct position by overcoming the backset created by trim.
Professional Features & Benefits
- Bracket allows PDL to be installed in the correct position for proper operation
- Designed for Timely or Redi-Frame frames with snap on trim
Technical Specifications
-
Base Material: Galvannealed steel
-
Door Type: Aluminum Doors, Wood, Metal
-
Height: 2 1/4"
-
Mounting Type: Screw applied
-
Weight: 0.25lbs.
-
Width: 1 11/16"
Manufacturer Resources
Product Specs
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Latches and Catches
- Product Type:
- Privacy Door Latches
- Commercial/Residential:
- Commercial
- Product Model:
- PDLBRKT
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
- Product Substrate:
- Galvannealed Steel
- Product Height:
- 2 1/4"
- Product Width:
- 1 11/16"
Pemko PDLBRKT – Frequently Asked Questions
1) What does the Pemko PDLBRKT privacy door latch bracket actually do?
The PDLBRKT is a mounting bracket that repositions a Pemko PDLAA privacy door latch on frames with snap-on trim. That trim creates a backset that would otherwise throw the latch out of position, and the bracket compensates for it so the PDL sits where it needs to for proper operation. It is not a latch itself, it is the adapter that lets the latch mount correctly.
2) Will the PDLBRKT work on a Timely frame?
Yes. The bracket is made specifically for Timely or Redi-Frame frames with snap-on trim. On a conventional hollow metal frame without that snap-on trim, you do not need the bracket at all, the PDLAA latch mounts directly.
3) Do I order the PDLBRKT instead of the privacy latch, or in addition to it?
In addition. The bracket is an accessory that carries the PDLAA privacy latch, so on a Timely or Redi-Frame opening with snap-on trim you order both. The bracket alone does nothing to secure the door.
4) What finishes does the Pemko PDLBRKT bracket come in?
Four: plain galvannealed steel, dark oxidized satin bronze equivalent, black suede powder coat, and white suede powder coat. Pick the one that matches the PDL latch and the frame trim, since the bracket sits exposed on the face of the frame.
5) How big is the PDLBRKT bracket and how much room do I need on the frame face?
The bracket measures 2-1/4 inches by 1-11/16 inches, so you need a flat area of at least that on the trim face to land it. It is screw applied, no adhesive and no welding.
6) Can the PDLBRKT be used on wood and aluminum doors, or is it metal frame only?
Pemko lists the bracket for use with aluminum, wood, and metal doors. What drives the need for it is the frame, not the door leaf: if the frame has snap-on trim creating a backset offset, you need the bracket regardless of what the door is made of.
7) Is the PDLBRKT bracket rust resistant enough for a commercial restroom or locker room?
The bracket is galvannealed steel, which is a zinc coated steel base, and three of the four versions add a powder coat or oxidized bronze finish over it. It is a commercial grade part rather than a residential one. For high humidity areas the powder coated versions give you the extra coating layer.
