Pemko S773 Fire and Smoke Door...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$157.05
$38.05
Pemko Pemko S773 Adhesive Backed Fire/Smoke Gasketing PMK-S773

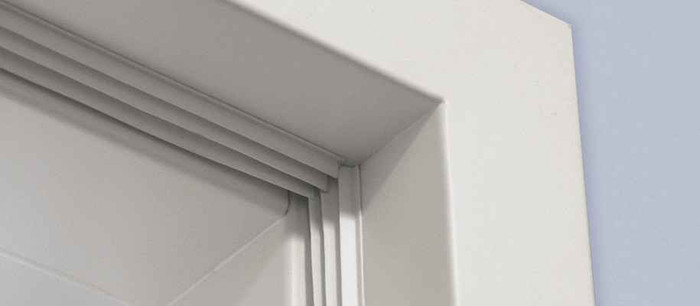

Pemko S773 Fire and Smoke Door Gasketing with Adhesive Backing - 3/8" x 1/2" High Temperature Silicone

(No reviews yet) Write a Review

Model: S773BL17
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$157.05
$38.05
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko S773 Fire and Smoke Door Gasketing with Adhesive Backing - 3/8"; x 1/2"; High Temperature Silicone

Professional Fire-Rated Door Sealing Solution

The Pemko S773 is a high-performance adhesive-backed fire and smoke gasketing designed for commercial door frame applications. This high temperature silicone gasket with 3/8"; height and 1/2"; width provides comprehensive sealing against smoke, fire, air, sound and weather while maintaining excellent compression properties for easy door latching. Rated for fire doors up to 3 hours on steel frames, up to 1-1/2 hours on wood and plastic covered composite doors, and up to 20 minutes on wood core fire doors with UL10C fire rating and UL1784 smoke testing certification.

Professional Features & Benefits

  • Fire Door Compatibility: Rated for steel frame fire doors up to 3 hours, wood and plastic composite doors up to 1-1/2 hours, and wood core doors up to 20 minutes for comprehensive fire protection applications.
  • Precision Dimensions: 3/8"; height by 1/2"; width profile provides optimal sealing performance for standard commercial door frame applications.
  • High Temperature Silicone Construction: Self-extinguishing and non-toxic material provides reliable performance under extreme conditions while maintaining safety standards.
  • Triple Fin Gasketing Design: Effectively blocks light and sound from infiltrating a room for enhanced acoustic and visual privacy.
  • Adhesive-Backed Installation: Ready-to-apply adhesive backing eliminates the need for additional fasteners and ensures secure mounting on door frames.
  • Multi-Purpose Sealing: Effectively seals against smoke, fire, air, sound and weather for comprehensive door perimeter protection.
  • Weather-Resistant Durability: Unaffected by sunlight, ozone and ultraviolet rays while remaining impervious to fungus and mildew for long-term outdoor performance.
  • Comprehensive Certifications: UL10C fire rated with positive pressure testing, UL1784 smoke tested, ASTM E90 sound tested, and Greenguard Gold certified for indoor air quality.
  • Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection.

Professional Applications

  • Commercial Fire Door Systems
  • Educational Facility Safety Compliance
  • Healthcare Institution Fire Protection
  • Industrial Facility Fire Barriers
  • Multi-Tenant Residential Fire Doors
  • Government and Municipal Building Safety
  • Hospitality Fire Code Compliance

Why Choose Pemko Quality?

Pemko S773 fire and smoke gasketing delivers professional-grade reliability with high temperature silicone construction rated for fire doors up to 3 hours on steel frames. The self-extinguishing, non-toxic material with triple fin design provides the longest-lasting commercial grade door seal performance with comprehensive UL10C fire rating and UL1784 smoke testing certifications. Backed by a 5 Year warranty and engineered for demanding commercial applications where dependable fire protection and multi-environmental sealing is essential.

Product Documentation & Resources

Manufacturer Resources

Product Specs

Features:
Triple Fin Gasketing Design Effectively Blocks Light and Sound From Infiltrating a Room
Application:
Doors
Warranty:
5 Year
Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gaskets
Subcategory:
Gaskets & Weatherstripping
ANSI/BHMA:
Air Infiltration Tested, Intertek Testing (Warnock Hersey), Sound Tested- ASTM E90, BHMA Certified, Smoke Tested- UL1784, Fire Rated UL10C- Positive Pressure, Underwriters Laboratory 4L10, Greenguard Gold Certified
Commercial/Residential:
Commercial
Product Model:
S773
Product Dimension:
H: 3/8", W: 1/2"
Product Category:
Door Trim and Accessories
Product Substrate:
Silicone
Department:
Door Hardware

Pemko S773BL17 – Frequently Asked Questions

1) What is the Pemko S773 adhesive-backed fire/smoke gasketing used for?
The S773 provides fire and smoke sealing for doors and frames. It creates an effective barrier when doors close, preventing smoke migration and maintaining fire ratings. Commonly used in commercial buildings, hospitals, and educational facilities.
2) What door types and frame materials is this gasketing compatible with?
Works with steel, wood, and aluminum doors and frames. Compatible with hollow metal doors, solid core wood doors, and composite fire doors. Verify surface is clean and smooth for proper adhesion.
3) How is the adhesive-backed design installed?
Peel backing and press firmly onto frame or door edge. Clean surface with degreaser first. Apply at room temperature for best adhesion. Position carefully as repositioning may reduce adhesive strength.
4) What finishes and colors are available for the S773?
Typically available in black or gray intumescent material. Color may vary by manufacturer production run. Contact supplier to verify current finish options for your specific application.
5) What fire rating does this gasketing provide?
Designed for use in fire-rated door assemblies. Specific rating depends on complete door system testing. Consult fire door manufacturer specifications and local code requirements for rating verification.
6) Does this meet building code requirements for fire doors?
Manufactured to support fire door assembly compliance when properly installed. Must be part of tested fire door system. Check with authority having jurisdiction for specific code requirements in your area.
7) Are there related gasket profiles or accessories available?
Pemko offers various gasket profiles and sealing solutions. Different thicknesses and configurations available for specific gap requirements. Corner pieces and splicing materials sold separately.
8) What gap size does the S773 accommodate?
Gap accommodation varies by gasket thickness and compression. Measure actual gap between door and frame when closed. Select thickness to ensure proper compression without binding door operation.
9) How do you maintain and service this type of gasketing?
Inspect regularly for gaps, damage, or detachment. Clean gently with mild detergent. Replace sections showing wear or poor adhesion. Avoid painting over gasket as this may affect fire performance.
10) What are similar models or alternatives to the S773?
Other Pemko intumescent gaskets include different profile shapes and mounting methods. Consider screw-in or kerf-mounted options if adhesive application is not suitable. Verify fire testing compatibility before substituting.
11) How does temperature and humidity affect installation?
Install at moderate temperatures for optimal adhesion. Avoid installation in freezing conditions or high humidity. Allow adhesive to cure before subjecting to door operation cycles.
