Pemko PK33 Fire-Rated Silicone...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$36.65
$23.12

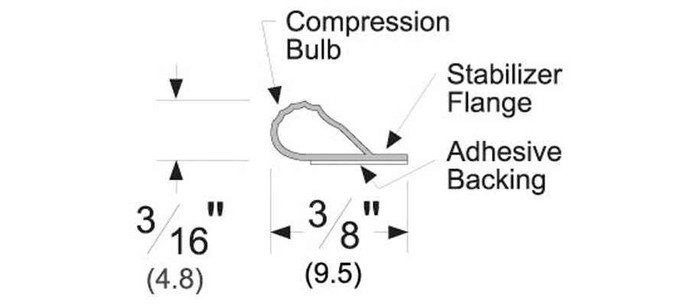

Pemko PK33 silicone perimeter gasketing cross-section diagram showing 3/8" width, 3/16" height, compression bulb, stabilizer flange, and adhesive backing

Pemko PK33 Fire-Rated Silicone Perimeter Gasketing 3/8" x 3/16" with Adhesive Backing

(2 reviews) Write a Review

Model: PK33BL17
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$36.65
$23.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko PK33 Fire-Rated Silicone Perimeter Gasketing with Adhesive Backing

The PK33 is a 3/8" wide by 3/16" high silicone perimeter gasket with pressure-sensitive adhesive backing, applied to door frames to seal the top and sides of the door. UL10C fire rated with positive pressure certification and UL1784 smoke tested to NFPA 105 requirements. Greenguard Gold certified. Rated for temperatures from -40 F to 250 F. Available in Black, Dark Brown, and White silicone in single-door lengths and bulk rolls.

Ratings and Certifications

  • Fire Rating: UL10C Positive Pressure
  • Smoke Rating: UL1784 (NFPA 105)
  • Air Infiltration Tested
  • Intertek / Warnock Hersey Listed
  • BHMA Certified
  • Underwriters Laboratories 4L10
  • Greenguard Gold Certified

Specifications

  • Profile: 3/8" W x 3/16" H
  • Material: Silicone
  • Temperature Range: -40 F to 250 F
  • Application: Door frame head and jambs (top and sides)
  • Mounting: Adhesive backing
  • Self-extinguishing, non-toxic
  • Warranty: 5 Year

Performance

  • Excellent compression characteristics with low closing force
  • High resistance to ozone and flex fatigue
  • Maintains flexibility across full rated temperature range

Typical Applications

  • Commercial office buildings
  • Educational facilities
  • Healthcare institutions
  • Government and municipal buildings
  • Industrial and warehouse facilities
  • Multi-tenant residential properties
  • Fire-rated door assemblies

Product Specs

Features:
Excellent Compression, Self-Extinguishing, Non-Toxic
Application:
Door Frames to Seal Top and Sides of Door
Warranty:
5 Year
Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gaskets
Subcategory:
Gaskets & Weatherstripping
ANSI/BHMA:
Air Infiltration Tested, Intertek Testing (Warnock Hersey), BHMA Certified, Smoke Tested- UL1784, Fire Rated UL10C- Positive Pressure, Underwriters Laboratory 4L10, Greenguard Gold Certified
Commercial/Residential:
Commercial
Product Model:
PK33
Product Dimension:
W: 3/8", H: 3/16"
Product Category:
Door Trim and Accessories
Product Substrate:
Silicone
Department:
Door Hardware

Pemko PK33BL17 – Frequently Asked Questions

1) Can Pemko PK33 perimeter gasketing be used on a fire-rated door opening?
PK33 silicone gasketing is fire rated to UL10C with positive pressure testing and smoke tested to UL1784-01, and it meets NFPA 105 for smoke door assemblies. It also carries Intertek (Warnock Hersey) testing and is BHMA certified. That is the pairing an inspector looks for on a rated opening: UL10C positive pressure on the fire side, UL1784 on smoke leakage. It is a commercial-duty seal, applied to the frame at the head and both jambs.
2) How wide a gap between the door and frame will Pemko PK33 gasketing actually close?
The PK33 bulb is 3/16 inch high and starts compressing at 3/16 inch, sealing gaps up to 1/16 inch. On a commercial opening the head and jamb clearance is normally around 1/8 inch, which sits inside that compression range. If your door is hung with a much wider gap than that, fix the hanging or shim the stop first, because no 3/16 inch seal will bridge it.
3) Does Pemko PK33 gasketing seal the bottom of the door, or do I still need a sweep?
PK33 goes on the frame only, sealing the top and both sides of the door. The gap at the floor is a separate item, so budget a door sweep or an automatic door bottom on the door itself, and a threshold if the opening is exterior. Perimeter gasketing plus a bottom seal is what makes a complete smoke or weather perimeter on a single door.
4) Can I add PK33 gasketing to an existing hollow metal frame that has no kerf slot?
Yes. PK33 is adhesive backed and sticks to the face of the frame stop, so there is no kerf to cut, no holes to drill and no screws. That makes it the retrofit choice on frames already installed and painted. Kerf-mounted gasketing is the alternative, but it needs a kerf groove in the frame, which is a factory or shop operation on new frames, not something you want to be routing in an occupied building. Wipe the stop clean and dry before you press the seal on, or the adhesive will let go at the corners.
5) Will perimeter gasketing stop my door from latching or make it hard to pull shut?
That is the usual worry with adding a seal to an opening that already has a closer, and PK33 is built around it. The seal takes very low closing force, and the bulb only begins to compress at 3/16 inch, so the door is not fighting the gasketing through its whole swing. Silicone also resists compression set at elevated temperature, so it does not flatten out and quit sealing after a summer in a mechanical room or a sunny exterior opening.
6) Will PK33 seal the meeting edge on a pair of doors?
No. PK33 handles the head and the two jambs, the frame perimeter. Where two door leaves meet there is no frame to stick it to, so a pair needs an astragal at the meeting stiles in addition to perimeter gasketing. Order the frame run and the astragal as separate items, and remember a double opening eats roughly twice the head length of a single.
7) Is PK33 silicone gasketing rated for exterior doors in cold climates or hot mechanical rooms?
Temperature range on the PK33 silicone runs -40 F to 250 F, so a walk-in cooler vestibule, an unheated northern exterior opening and a boiler room door are all inside the range. Silicone holds its flexibility across that span where a vinyl or foam seal stiffens and cracks in the cold. It also carries high ozone resistance and high resistance to flex fatigue, which is what a high traffic exterior opening cycling hundreds of times a day is really testing, and it is air infiltration tested for draft and energy loss.
8) Will PK33 gasketing fit a narrow frame stop?
The PK33 profile is 3/8 inch wide by 3/16 inch high, a low, narrow section meant for tighter door frames. Measure the flat face of your stop: you need 3/8 inch of clean, flat surface to land the adhesive on. Frames with a deeper stop take it fine, but if your stop face is under 3/8 inch the seal will hang over an edge and the adhesive bond will be short.
9) What colors does Pemko PK33 gasketing come in for matching painted or bronze frames?
Three colors: black, dark brown and white. Dark brown is the one that disappears on bronze and dark anodized frames, white on painted white or light frames, black on dark painted hollow metal and aluminum. All three are offered across every length from 17 feet through the 510 foot bulk roll, so standardizing one color across a building does not limit which run size you order.
10) Does PK33 gasketing meet low-emission material requirements for a school or hospital specification?
PK33 is Greenguard Gold certified, which is the indoor air quality certification most often written into school and healthcare specs. The silicone itself is non-toxic and self-extinguishing, so it satisfies both the emissions line and the fire behavior line that come up on institutional submittals. Pair that with the UL10C positive pressure fire rating and UL1784 smoke test data for a complete submittal on a rated opening.
How fast can I get the Pemko PK33BL17 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Pemko PK33BL17 come with a warranty?
Absolutely. The Pemko PK33BL17 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Pemko PK33BL17?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Pemko PK33BL17 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.

Product Reviews

  • 5
    Seals the Deal!

    Posted by Timothy on Sep 4th 2023

    The Pemko PK33 Adhesive Perimeter Gasketing is a lifesaver for drafty doors. It's a breeze to install, and the adhesive sticks like a champ. But keep in mind, it might not fit super snug on every door, so measure twice! Overall, it's a winner for keeping my home cozy.

  • 5
    Seal the Deal with This Gasketing!

    Posted by Sabrina on Aug 28th 2023

    Tried out the Pemko PK33 Adhesive Perimeter Gasketing from ZenSupply. Super pleased with how it seals out drafts, keeping my place cozy. Adhesive sticks well, even on uneven surfaces. Just a heads-up, cutting it to size can be a bit fiddly. But overall, a small effort for big gains in energy efficiency.

!
