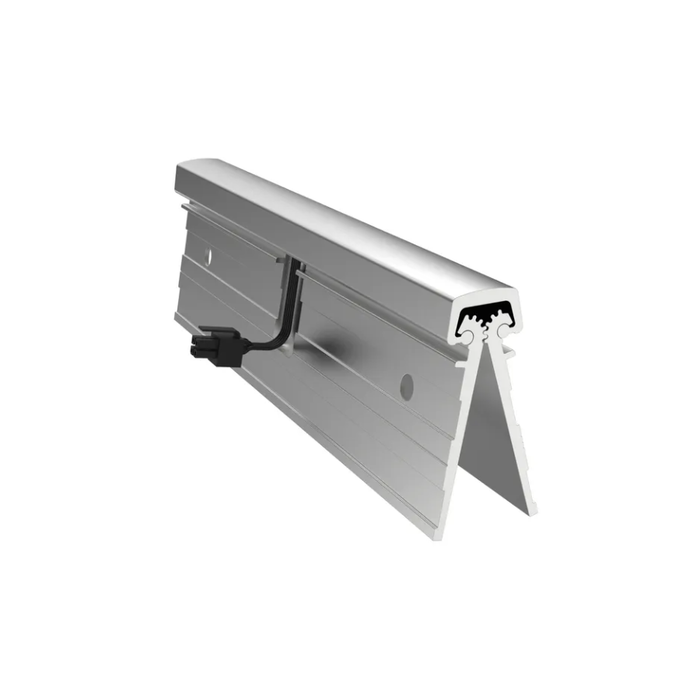

Pemko SER 8-Wire Serviceable Transfer Hinge Module with Grade 1 Aluminum Construction

Pemko SER 8-Wire Serviceable Transfer Hinge Module with Grade 1 Aluminum Construction

(No reviews yet) Write a Review

Model: CFM-SER8
Selected Wire Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$629.00
$436.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko SER 8-Wire Serviceable Transfer Hinge Module with Grade 1 Aluminum Construction

Professional Power Transfer Solution for Electrified Door Hardware

The Pemko SER 8-Wire Serviceable & Removable Transfer provides a professional solution for power transfer in electrified door applications. This Grade 1 aluminum construction module features a three-section design that allows current carrying cables to be serviced or replaced without removing the door from the frame. The non-handed design ensures universal compatibility with full mortise hinge installations for both left-hand and right-hand door configurations.

Professional Features & Benefits

  • Serviceable Three-Section Design: Allows current carrying cable service or replacement without removing door from frame for reduced maintenance downtime and operational efficiency.
  • Grade 1 Aluminum Construction: Professional-grade aluminum construction meets commercial durability standards for demanding applications and long-term reliability.
  • Installation Flexibility: Current carrying cables can be safely stored or delivered to electrician or security contractor prior to electrified hardware installation for improved project coordination.
  • Universal Application: Non-handed design provides installation flexibility for both left-hand and right-hand door configurations with full mortise hinge compatibility.
  • Wire Configuration Options: Available in 4, 8, or 12 wire configurations to accommodate various electrified hardware requirements and system specifications.
  • Contractor Coordination Benefits: Eliminates the necessity of electrician or security contractor presence when doors are being hung, improving project scheduling efficiency.
  • Removable Center Section: Serviceable and removable center section design enables field maintenance and cable replacement without door removal.
  • Custom Length Availability: Custom lengths available to accommodate specific door and frame requirements for specialized applications.

Technical Specifications

  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Grade: 1
  • Hinge Type: Full Mortise
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Continuous Hinges
  • Product Substrate: Aluminum
  • Product Type: Service/Removable Module
  • Subcategory: Electrified Options and Power Transfer

Professional Applications

  • Commercial Building Access Control Systems
  • Healthcare Facility Electrified Door Hardware
  • Educational Institution Security Systems
  • Government and Municipal Building Applications
  • Industrial Facility Controlled Access Points
  • Multi-Tenant Residential Electrified Doors
  • Retail Security and Loss Prevention Systems

Why Choose Pemko Quality?

Pemko SER transfer modules deliver professional-grade reliability with Grade 1 aluminum construction engineered for demanding commercial applications. The serviceable three-section design reduces maintenance costs and installation complexity while ensuring dependable power transfer performance. Engineered for demanding commercial applications where reliable electrified hardware operation is essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Continuous Hinges
Subcategory:
Electrified Options and Power Transfer
Grade:
Grade 1
Hinge Type:
Full Mortise
Door Hand Direction:
Non-Handed
Product Category:
Door Trim and Accessories
Department:
Door Hardware
Product Substrate:
Aluminum
Product Type:
Service/Removable Module

Pemko CFM-SER8 – Frequently Asked Questions

1) What is a Pemko SER transfer hinge module and how does it get power into an electrified door?
The Pemko SER is a full mortise hinge module that carries current-carrying cables from the frame into the door, so an electrified lock, exit device, or monitoring device gets power without a surface-mounted electric power transfer. It installs as part of the hinge line in a full mortise prep, and the 8-wire version gives you eight conductors to work with. The construction is aluminum and it is a Grade 1 module.
2) Do I have to order a left hand or right hand version of the Pemko SER transfer module?
No handing to specify. The SER module is non-handed, so the same part goes into a left hand or a right hand opening. That also means you can stock one part number across a building instead of splitting inventory by swing.
3) If a wire in the power transfer fails, do I have to pull the door off the frame to fix it?
No. That is the whole point of the SER three-section design: the center section is serviceable and removable, so the current-carrying cable can be serviced or replaced with the door still hung. On an occupied floor, a healthcare corridor, or a secured entry, that is the difference between a short service call and taking the opening out of use to unhang and rehang a door.
4) Do I need 4, 8, or 12 wires in my door power transfer?
Count the conductors your hardware actually needs, then leave spares. The SER comes in 4, 8, or 12 wire configurations; 8 wire is the middle option and covers a typical electrified lock plus a request-to-exit or latch monitor and a door position input without doubling up. Go to 12 when you are stacking an electrified exit device, REX, latch bolt monitor, and a card reader circuit on one leaf. Drop to 4 when it is a single powered lock and nothing else. Pulling extra conductors now is far cheaper than opening the hinge prep again later.
5) Will a Pemko SER module work with my existing hinge prep, or does the door need a different cutout?
It goes into a full mortise hinge prep, meaning a mortised leaf in the door edge and a matching mortised leaf in the frame rabbet, the same prep style as a standard butt hinge. If your openings are prepped for full mortise butts, that is the family this module belongs to. If the door is hung on a continuous geared hinge, half surface, or half mortise hardware, this is not the prep you have and a different transfer method applies.
6) Does the electrician have to be on site the day we hang the doors with a Pemko SER transfer?
No, and that is a scheduling reason to use this module. The current-carrying cables can be stored or handed off to the electrician or security contractor before the electrified hardware goes in, so the door crew hangs doors on their own schedule and the low-voltage trade comes back later to terminate. On a multi-door job that removes a trade-stacking problem from the hanging sequence.
7) Should I use a hinge-mounted power transfer or a separate electric power transfer device?
A hinge-position transfer like the SER puts the wire crossing where the door already pivots, so nothing extra is mounted on the face of the door or the frame soffit and there is no separate loop to protect or vandalize. It is the cleaner choice on public-facing and high-traffic openings. A separate electric power transfer mounted above the top hinge is what you use when the hinge line is already committed to a continuous hinge or when the door was never prepped for a modular hinge. The SER also differs from most transfer devices in that the wiring section is serviceable in place rather than requiring the door to come down.
8) Is an aluminum power transfer hinge module durable enough for a commercial entry or a school corridor?
It is a Grade 1 module in aluminum construction, which is the top commercial durability tier in the hardware grading system and the level specified for high-traffic and institutional openings. It is used on access-controlled commercial entries, healthcare and education security openings, government buildings, industrial controlled access points, multi-tenant residential, and retail loss-prevention doors.
9) I am standardizing electrified openings across a building. Can one SER part cover all of them?
For the hinge transfer itself, largely yes. The module is non-handed, so swing direction does not split the order, and the same full mortise module serves every opening prepped for full mortise hinges. What does vary building to building is conductor count: openings running only a powered lock can take the 4 wire, openings with lock plus monitoring take the 8 wire, and openings stacking an electrified exit device with REX and latch monitoring want the 12. Many facilities simply standardize on the higher wire count everywhere so the spare conductors are already in the door when the access control scope grows.
10) Can I get a Pemko SER transfer module in a non-standard length for an oversize frame?
Yes, custom lengths are available for door and frame conditions the standard module does not suit. That is the route for oversize or non-standard openings rather than trying to adapt a stock length.
