Pemko SPFM Series Grade 1 Heavy Duty Full Mortise Continuous Geared Hinge with 180-Degree Swing

Pemko SPFM Series Grade 1 Heavy Duty Full Mortise Continuous Geared Hinge with 180-Degree Swing

Professional Heavy Duty Continuous Hinge Solution

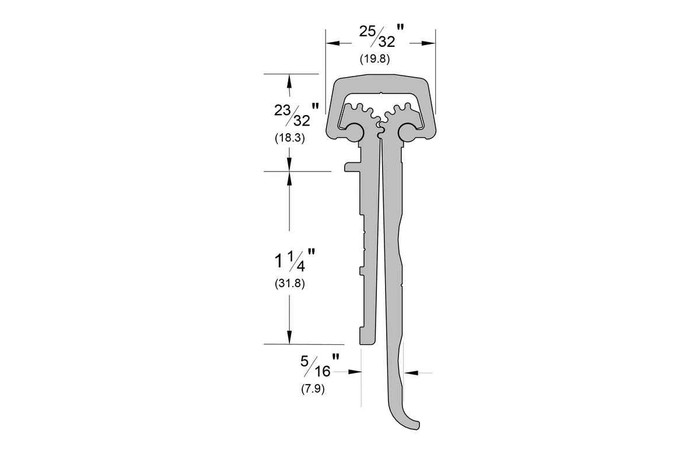

The Pemko SPFM Series Heavy Duty Special Full Mortise Continuous Geared Hinge is engineered for door and frame applications where standard hinge leaves may interfere with weatherstrip, thermo-break, or applied stop components. This Grade 1 aluminum hinge accommodates doors up to 1-3/4"; thick and 4' wide, with maximum hinge lengths up to 10' and minimum lengths of 79";. The full mortise design provides 180-Degree swing capability with 5/16"; minimum clearance and weighs 1.13 lbs per foot for reliable heavy-duty performance.

Professional Features & Benefits

• Door Compatibility: Accommodates doors up to 1-3/4"; thick and 4' wide with 180-Degree maximum swing capability for versatile installation options.
• Custom Length Options: Available in lengths from 79"; minimum up to 10' maximum with custom lengths available for specific project requirements.
• Heavy Duty Construction: Grade 1 aluminum construction with geared design rated for heavy weight applications and guaranteed for the life of the opening against material defects.
• Special Application Design: Full mortise configuration designed specifically for applications where hinge leaves may interfere with weatherstrip, thermo-break, or applied stop of the frame.
• Installation Flexibility: Non-handed design with Teks self-drilling fasteners eliminates need for special hinge reinforcements in door and frame.
• Fire Rating Compliance: UL 10C certified with special FirePins required only on 3-Hour (A-Label) assemblies for code compliance applications.
• Professional Certifications: ANSI/BHMA Standard A156.26 compliance and Health Product Declaration (HPD) certification for commercial applications.
• Manufacturer Warranty: Guaranteed for the life of the opening against defects in material for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Grade: Grade 1
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Model: SPFM
• Product Subgroup: Continuous Hinges
• Product Substrate: Aluminum
• Product Type: Continuous Hinges
• Series: SPFM Series
• Subcategory: Continuous Hinges

Professional Applications

• Commercial Office Buildings with Weatherized Entrances
• Educational Facilities with Thermal Break Systems
• Healthcare Institutions Requiring Fire Rated Assemblies
• Retail Establishments with Applied Stop Frames
• Industrial and Warehouse Facilities
• Government and Municipal Buildings
• Multi-Tenant Properties with Weather Sealing Requirements

Why Choose Pemko Quality?

Pemko SPFM Series continuous hinges deliver professional-grade reliability with Grade 1 aluminum construction and geared design engineered for heavy-duty commercial applications. The heavy duty version is guaranteed for the life of the opening against defects in material, providing long-term value and dependable performance. UL 10C and ANSI/BHMA A156.26 certifications ensure compliance with demanding commercial building requirements where reliable door operation is essential.
