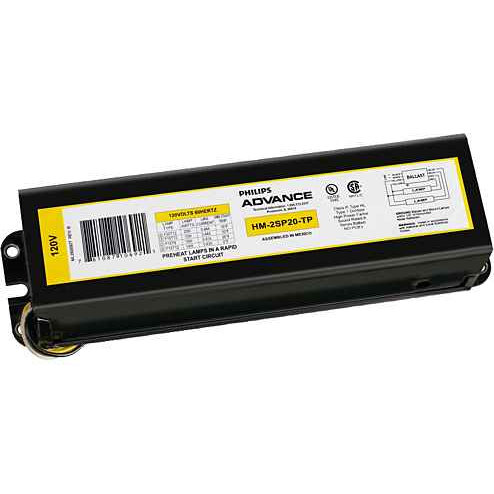

Philips Lighting 913700501071 2-Lamp F20T12 Preheat-Start Magnetic Fluorescent Ballast, 120V

Philips Lighting 913700501071 2-Lamp F20T12 Preheat-Start Magnetic Fluorescent Ballast, 120V

(No reviews yet) Write a Review

Model: 913700501071
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$140.41
$90.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting 2-Lamp F20T12 Preheat-Start Magnetic Fluorescent Ballast, 120V

The Philips Lighting 2-Lamp F20T12 Preheat-Start Magnetic Fluorescent Ballast is a magnetic fluorescent ballast rated 120V, 60 Hz that powers two F20T12 fluorescent lamps wired in series. Housed in a durable metal T1 enclosure measuring 6.5" x 2.38" x 1.5", it is CSA certified and suitable for outdoor use. This preheat-start ballast supports remote, tandem, and through wiring configurations for flexible fixture installation.

Key Features

  • Lamp Compatibility: Powers two F20T12 fluorescent lamps wired in series, each rated for 20W lamp power.
  • Input Rating: 120V, 60 Hz input with 0.49A nominal current and 36W nominal input power.
  • Ignition Method: Preheat starting with a nominal ignition time of 1 s.
  • Flexible Wiring: Supports remote, tandem, and through wiring configurations up to a maximum ballast-to-lamp distance of 30'.
  • Durable Housing: Metal T1 enclosure measuring 6.5" x 2.38" x 1.5" for dependable fixture mounting.
  • Outdoor Rated: Suitable for outdoor use in fluorescent fixture applications.

Certifications & Compliance

  • CSA Certificate
  • Suitable for Outdoor Use
  • FCC Non-Consumer EMC Immunity Standard

Technical Specifications

  • Automatic Restart: Yes
  • Base Model: RL2SP20TP
  • Crestfactor (Nom): 1.5
  • EAN/UPC Product: 7.81087E+11
  • Housing Type: T1
  • Hum and Noise Level: A
  • Ignition Time (Nom): 1 s
  • Material Nr (12NC): 9.13701E+11
  • Max Ballast Lamp Distance, Remote Wiring: 30'
  • Packs Per Outer Box: 10
  • Quantity Per Pack: 1
  • Order Code: 9.13701E+11
  • Order Product Name: STANDARD RL2SP20TPI
  • Remote Wiring Configuration Allowed: Yes
  • Suitable for Outdoor Use: Yes
  • Tandem Wiring Configuration Allowed: Yes
  • Through Wiring Configuration Allowed: Yes
  • Total Harmonic Distortion (USA): 10%
  • UL Recognized: No
  • Wire Striplength: 0.50/0.375 mm

Typical Applications

  • Fluorescent Fixture Ballast Replacement
  • Commercial and Industrial Lighting Retrofits
  • Outdoor and Two-Lamp F20T12 Fixture Applications
  • Remote, Tandem, and Through-Wired Fixture Installations

Why Philips Lighting?

Philips Lighting engineers this magnetic fluorescent ballast with a durable metal T1 housing and CSA-certified performance for dependable operation in commercial and industrial fluorescent fixtures. Flexible remote, tandem, and through wiring support up to 30' ballast-to-lamp distance for adaptable installation, while the preheat-start design and outdoor-use rating deliver reliable long-term service.

Manufacturer Resources

Product Specs

Approval Marks:
CSA certificate
Automatic Restart:
Yes
Ballast Factor Nom :
0.61
Ballast Type:
Magnetic Fluorescent
Base Model:
RL2SP20TP
Crestfactor Nom :
1.5
Ean Upc Product:
7.81087E+11
Emc Immunity Standard:
FCC Non-Consumer
Housing Dimensions:
6.5" x 2.38" x 1.5"
Housing Material:
Metal
Housing Type:
T1
Hum And Noise Level:
A
Ignition Method:
Preheat
Ignition Time Nom :
1 s
Input Current Nom :
0.49 A
Input Frequency:
60 Hz
Input Power Nom :
36 W
Input Voltage:
120 V
Lamp Connection:
Series
Lamp Type:
F20T12
Material Nr 12nc :
9.13701E+11
Max Ballast Lamp Distance Remote Wiring:
30'
Max Ballast Lamp Distance Tandem Wiring:
Any = 30'
Max Ballast Lamp Distance Through Wiring:
Any = 30'
Net Weight Piece :
1.139 kg
Number Of Lamps:
2 piece/unit
Numerator Packs Per Outer Box:
10
Numerator Quantity Per Pack:
1
Order Code:
9.13701E+11
Order Product Name:
STANDARD RL2SP20TPI
Power Factor Nom :
0.61
Rated Lamp Power:
20 W
Remote Wiring Configuration Allowed:
Yes
Suitable For Outdoor Use:
Yes
Tandem Wiring Configuration Allowed:
Yes
Through Wiring Configuration Allowed:
Yes
Total Harmonic Distortion Usa:
10%
Ul Recognized:
No
Wire Gauge Nom :
18AWG mm
Wire Length By Color:
See data sheet
Wire Striplength:
0.50/0.375 mm
Wire Type:
Solid
Product Type:
Fluorescent Ballast
Department:
Electrical

Philips Lighting 913700501071 – Frequently Asked Questions

1) Will this Philips magnetic ballast run two F20T12 lamps, or can I use it on a single lamp fixture?
The Philips RL2SP20TP magnetic ballast is built for two F20T12 lamps wired in series, each rated 20 W. Series wiring means both lamps are part of one circuit, so it is intended for a two lamp fixture, not a one lamp fixture. Lamp type matters as much as count here: F20T12 only, not T8 or T5.
2) Will this F20T12 ballast fit inside my existing fluorescent fixture channel?
The metal T1 housing measures 6.5 x 2.38 x 1.5 inches. Measure the channel on the fixture you are retrofitting against those three numbers before you pull the old ballast, since T12 magnetic cans vary in length and a longer original will leave the mounting holes off.
3) Can I mount this ballast remotely, away from the lamps?
Yes. Remote, tandem, and through wiring are all permitted, with a maximum ballast to lamp distance of 30 feet in any of those configurations. That covers remote mounting in a ceiling plenum or running one ballast across tandem fixtures, as long as you stay inside 30 feet of wire run.
4) Is this a 120V only ballast, or will it run on 277V?
120 V, 60 Hz only. Nominal input current is 0.49 A and nominal input power is 36 W for the pair of 20 W lamps. If your fixture is fed 277 V, this is the wrong ballast for that circuit.
5) What does preheat start mean on this ballast, and will it work with my lamp starters?
Preheat is the starting method, with a nominal ignition time of about 1 second. Preheat circuits heat the lamp cathodes before striking the arc, which on F20T12 fixtures normally means a starter in the circuit. If your fixture is a rapid start or instant start design, a preheat ballast is not the equivalent swap.
6) Can this Philips F20T12 ballast be used in an outdoor light fixture?
It is rated suitable for outdoor use and carries a CSA certificate. The ballast itself is outdoor rated, but the fixture and enclosure still have to be the weather rated part, since the ballast sits inside a metal T1 can and is not a weatherproof enclosure on its own.
7) Is this ballast quiet enough for an office or classroom?
Hum and noise level is rated A, the quietest sound class used for magnetic fluorescent ballasts. That suits offices, classrooms, and libraries. Magnetic ballasts still hum more than electronic ones, so in a very quiet space an electronic ballast will be noticeably quieter.
8) Does this Philips ballast restart on its own after a power interruption?
Yes, automatic restart is built in, so after a power blip or a circuit being cycled the lamps re-strike without anyone resetting the fixture. Useful on stairwells, exterior fixtures, and any circuit on a timer or photocell.
9) What wire is on this ballast and how much insulation do I strip for the wire nuts?
Leads are solid conductor at 18 AWG nominal, with a specified strip length of 0.50/0.375 mm. Solid 18 AWG pairs fine with standard small wire connectors for fixture whips.
10) How does the Philips F20T12 ballast ship, one at a time or in a case?
Each pack holds one ballast, and an outer box holds 10 packs. So a full case is 10 ballasts, which is the sensible buy if you are recoating a building's worth of two lamp F20T12 fixtures.
