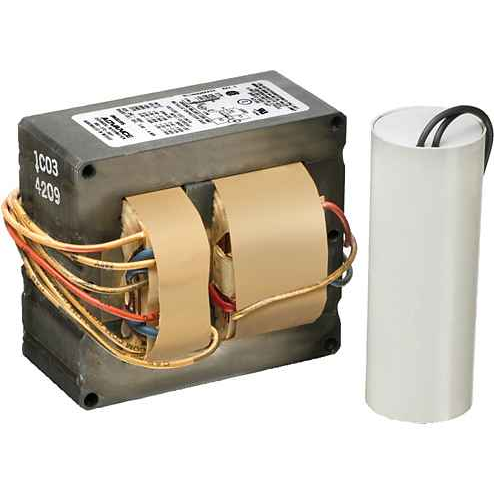

Philips Lighting 913710401201 Core & Coil CWA Magnetic HID Ballast, 1000W Metal Halide, Multi-Tap 120-480V

Philips Lighting 913710401201 Core & Coil CWA Magnetic HID Ballast, 1000W Metal Halide, Multi-Tap 120-480V

(No reviews yet) Write a Review

Model: 913710401201
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$464.61
$414.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting Core & Coil CWA Magnetic HID Ballast, 1000W Metal Halide, Multi-Tap 120-480V

The Philips Lighting Core & Coil HID ballast (71A6552001) drives a 1000W metal halide lamp, ANSI code M47, on a CWA magnetic circuit. It accepts multi-tap 120/208/240/277/480V input at 60Hz, delivering 1080W nominal power at a 1.0 ballast factor and 0.9 power factor. UL Recognized and outdoor rated.

Key Features

  • Lamp Compatibility: Drives a 1000W metal halide (MH) lamp, ANSI code M47.
  • Circuit Type: CWA magnetic ballast, 10% constant wattage deviation.
  • Multi-Tap Voltage: 120/208/240/277/480V input at 60Hz for flexible field wiring.
  • Rated Input Power: 1080W nominal power, 0.9 power factor, 1.0 ballast factor.
  • Capacitor: 24 MFD, rated 480V, 90°C temperature rating.

Certifications & Compliance

  • UL Recognized (Approval Mark: ULR)
  • Suitable for Outdoor Use

Technical Specifications

  • Ansi Code: M47
  • Approval Marks: ULR
  • Automatic Restart: No
  • Ballast Factor Nom: 1
  • Capacitor Catalog Number: MD2409000
  • Capacitor Diameter Oval Dimensions: 1.75 in
  • Capacitor Height: 3.90 in
  • Circuit Type: CWA
  • Constant Wattage Deviation: 10%
  • Ean Upc Product: 7.81087E+11
  • Hipot Test 1 Minute: 2000 V
  • Hipot Test 2 Seconds: 2500 V
  • Ignitor Catalog Number: NA
  • Ignitor Temperature Rating: NA
  • Input Current Nom: 9.2/5.8/4.8/4.1/2.4 A
  • Input Current Open Circuit: 4.96/3.84/2.77/2.35/1.37 A
  • Input Current Short Circuit: 4.36-6.64/2.14-3.2/2.1-3.14/1.82-2.74/1.04-1.56 V
  • Input Current Starting: 5.77/2.91/2.78/2.39/1.38 A
  • Material Nr 12nc: 9.1371E+11
  • Max Ballast Lamp Distance Remote Wiring: Determined by AWG used
  • Net Weight Piece: 11.762 kg
  • Number Of Lamps: 1 piece/unit
  • Numerator Packs Per Outer Box: 1
  • Numerator Quantity Per Pack: 1
  • Open Circuit Voltage: 430 V
  • Open Circuit Voltage Test Volts: 387-473 V
  • Order Code: 9.1371E+11
  • Order Product Name: CORE & COIL HID 71A6552001
  • Power Factor Nom: 0.9
  • Remote Wiring Configuration Allowed: Yes
  • Secondary Short Circuit Current: 5.22-6.38 A
  • Suitable For Outdoor Use: Yes
  • Temperature Marking: A/A/A/A/A
  • Ul Insulation Class: N(AC200°C)
  • Ul Recognized: Yes
  • Ul Temperature Code: 1029A
  • Wire Length By Color: 12"
  • Wire Striplength: 0.5 mm
  • Wire Type: Stranded

Typical Applications

  • Outdoor and Area Lighting Fixtures
  • High-Bay and Commercial HID Lighting Systems
  • Parking Lot and Site Lighting
  • HID Fixture Ballast Replacement and Retrofit

Why Philips Lighting?

Philips Lighting core & coil HID ballasts use magnetic CWA circuitry and UL Recognized components for dependable, code-compliant 1000W metal halide performance. Multi-tap voltage and remote wiring support simplify field installation and maintain consistent outdoor lamp performance.

Manufacturer Resources

Product Specs

Ansi Code:
M47
Approval Marks:
ULR
Automatic Restart:
No
Ballast Factor Nom :
1
Ballast Type:
Magnetic HID
Base Model:
71A6552
Capacitor Catalog Number:
MD2409000
Capacitor Diameter Oval Dimensions:
1.75 in
Capacitor Height:
3.90 in
Capacitor Requirements:
480V
Capacitor Temperature Rating:
90°C
Capacitor Value:
24 MFD
Circuit Type:
CWA
Constant Wattage Deviation:
10%
Ean Upc Product:
7.81087E+11
Hipot Test 1 Minute :
2000 V
Hipot Test 2 Seconds :
2500 V
Ignitor Catalog Number:
NA
Ignitor Temperature Rating:
NA
Input Current Nom :
9.2/5.8/4.8/4.1/2.4 A A
Input Current Open Circuit :
4.96/3.84/2.77/2.35/1.37 A
Input Current Short Circuit :
4.36-6.64/2.14-3.2/2.1-3.14/1.82-2.74/1.04-1.56 V
Input Current Starting :
5.77/2.91/2.78/2.39/1.38 A
Input Frequency:
60 Hz
Input Power Nom :
1080 W
Input Voltage:
120/208/240/277/480 V
Lamp Type:
1000W MH
Material Nr 12nc :
9.1371E+11
Max Ballast Lamp Distance Remote Wiring:
Determined by AWG used
Net Weight Piece :
11.762 kg
Number Of Lamps:
1 piece/unit
Numerator Packs Per Outer Box:
1
Numerator Quantity Per Pack:
1
Open Circuit Voltage:
430 V
Open Circuit Voltage Test Volts :
387-473 V
Order Code:
9.1371E+11
Order Product Name:
CORE & COIL HID 71A6552001
Power Factor Nom :
0.9
Rated Lamp Power:
1000 W
Recommended Fuse Value:
25/15/12/10/6 A
Remote Wiring Configuration Allowed:
Yes
Secondary Short Circuit Current:
5.22-6.38 A
Suitable For Outdoor Use:
Yes
Temperature Marking:
A/A/A/A/A
Ul Insulation Class:
N(AC200°C)
Ul Recognized:
Yes
Ul Temperature Code:
1029A
Wire Length By Color:
12"
Wire Striplength:
0.5 mm
Wire Type:
Stranded
Product Core Size:
4 1/4 x 6 (2 Coil)
Product Type:
HID Ballast
Department:
Electrical

Philips Lighting 913710401201 – Frequently Asked Questions

1) What supply voltages can this 1000W HID ballast be wired to?
Multi-tap: 120, 208, 240, 277 or 480V at 60 Hz, selected in the field by landing the incoming hot on the correct tap lead. That covers most commercial and site lighting services, so one part number works across a mixed-voltage property.
2) What size fuse and what line current should I size the circuit for on a 1000W metal halide ballast?
Nominal input current runs 9.2 A at 120V, 5.8 A at 208V, 4.8 A at 240V, 4.1 A at 277V and 2.4 A at 480V. Recommended in-line fuse values follow the same tap order: 25, 15, 12, 10 and 6 A. Total input power is 1080W nominal at 0.9 power factor, so budget that rather than the 1000W lamp rating when loading a circuit.
3) Does the capacitor come with this Philips CWA ballast, or do I order it separately?
A CWA circuit will not operate without its capacitor, and the required one is specified as catalog number MD2409000, 24 MFD rated 480V with a 90 degree C rating. It measures 1.75 inch oval diameter by 3.90 inches high, which is what you check against the space left in the ballast tray. Order the capacitor as a separate line item if your fixture does not already have a good one.
4) Can I mount this HID ballast remote from the fixture, up on a pole base or in a ground box?
Remote wiring is allowed. Maximum distance between ballast and lamp is governed by the wire gauge you run, so heavier AWG buys you more distance. The unit is also rated for outdoor use, so a remote enclosure on site lighting is a normal application for it.
5) Is a CWA magnetic ballast the right choice for a parking lot fixture with unstable line voltage?
That is exactly what CWA is for. Constant wattage autotransformer circuitry holds lamp wattage within 10 percent deviation as line voltage swings, which matters on long site runs and loaded services where a reactor style ballast would let lamp output wander. Ballast factor is 1.0, so you get the lamp's full rated output. Open circuit voltage is 430V.
6) Will a 1000W metal halide lamp restrike right away after a power blip with this ballast?
No. Automatic restart is not a feature of this ballast, so after a momentary outage the lamp has to cool before it will strike again, typically several minutes of dark. If instant restrike matters for a security or egress area, that is a reason to look at a different lamp technology for the opening rather than a different magnetic ballast.
7) Is this Philips HID ballast UL listed for use in a fixture I am rebuilding?
It carries a UL Recognized mark (ULR), which is a component recognition intended for installation inside a listed luminaire rather than as a standalone listed assembly. Insulation is UL class N, AC 200 degrees C, with a UL temperature code of 1029A and A temperature marking across all five taps.
8) How many ballasts come in a box when I order the Philips 71A6552 core and coil?
One ballast per pack, one pack per outer box, so each order line is a single ballast. The Philips order product name is CORE & COIL HID 71A6552001, base model 71A6552, if you are matching it to a spec sheet or a fixture nameplate.
