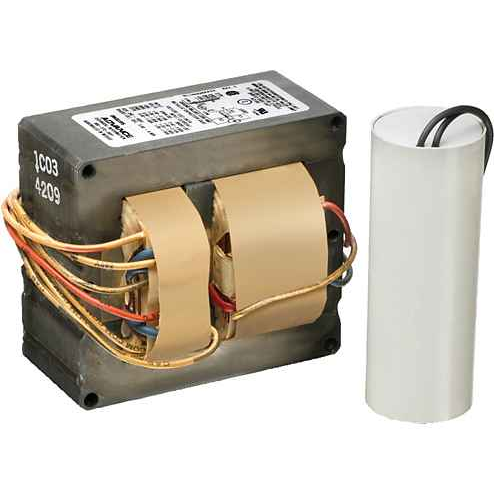

Philips Lighting 913710414801 Core & Coil CWA Magnetic HID Ballast for 400W HPS Lamp, Multi-Tap Voltage

Philips Lighting 913710414801 Core & Coil CWA Magnetic HID Ballast for 400W HPS Lamp, Multi-Tap Voltage

(No reviews yet) Write a Review

Model: 913710414801
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$375.24
$336.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting 913710414801 Core & Coil CWA Magnetic HID Ballast for 400W HPS Lamp, Multi-Tap Voltage

The Philips Lighting 913710414801 Core & Coil CWA Magnetic HID Ballast is engineered to drive a single 400W HPS lamp (ANSI S51-M169) with constant wattage deviation held within trapezoid limits. This magnetic CWA ballast accepts multi-tap 120/208/240/277/480V input at 60 Hz, is UL Recognized (ULR), and is suitable for outdoor HID fixture installations with remote wiring capability.

Key Features

  • Lamp Compatibility: Rated for a single 400W HPS lamp (ANSI S51-M169) at 460 W nominal input power and 0.9 power factor.
  • Multi-Tap Voltage: 120/208/240/277/480V input at 60 Hz supports flexible branch-circuit wiring.
  • Core & Coil Construction: 4 x 4 (2 coil) core size for a magnetic CWA circuit.
  • Capacitor & Ignitor: 7C550P24RA capacitor (55 MFD, 240V, 105°C) paired with an LI501-H4 ignitor (105°C).
  • Remote Wiring: Configuration allowed with a maximum ballast-to-lamp distance of 2'.
  • Outdoor Rated: Suitable for outdoor HID fixture use.
  • Wiring Details: Stranded wire with 12" leads by color and a 0.5 mm strip length.

Certifications & Compliance

  • UL Recognized (ULR)
  • UL Insulation Class H (180°C)
  • UL Temperature Code 1029D
  • Suitable for Outdoor Use

Technical Specifications

  • Approval Marks: ULR
  • Automatic Restart: No
  • Ballast Factor (Nom): 1
  • Base Model: 71A8453
  • Capacitor Diameter Oval Dimensions: 1.85 in
  • Capacitor Height: 3.70 in
  • Circuit Type: CWA
  • EAN/UPC Product: 7.81087E+11
  • Hipot Test (2 Seconds): 2500 V
  • Input Current (Nom): 3.85/2.2/1.95/1.75/0.95 A
  • Input Current (Open Circuit): 1.73/1.0/0.89/0.73/0.41 A
  • Input Current (Short Circuit): 2.48-3.72/1.4-2.1/1.24-1.86/1.07-1.61/0.62-0.94 A
  • Input Current (Starting): 2.91/1.67/1.42/1.26/0.72 A
  • Material Number (12NC): 9.1371E+11
  • Max Ballast Lamp Distance Remote Wiring: 2'
  • Numerator Packs Per Outer Box: 1
  • Numerator Quantity Per Pack: 1
  • Open Circuit Voltage Test (Volts): 176-214 V
  • Order Code: 9.1371E+11
  • Order Product Name: CORE & COIL HID 71A8453001D
  • Power Factor (Nom): 0.9
  • Remote Wiring Configuration Allowed: Yes
  • Secondary Short Circuit Current: 6.0-7.4 A
  • Suitable For Outdoor Use: Yes
  • Temperature Marking: C/C/D/D/C
  • UL Recognized: Yes
  • Wire Length By Color: 12"
  • Wire Striplength: 0.5 mm
  • Wire Type: Stranded

Typical Applications

  • HID Lighting Fixture Manufacturing
  • Outdoor Area and Roadway Lighting
  • HPS Fixture Ballast Replacement
  • Industrial and Commercial HID Lighting Systems

Why Philips Lighting?

Philips Lighting builds this Core & Coil CWA ballast around a UL Recognized capacitor and ignitor, precise CWA circuitry, and multi-tap voltage flexibility, delivering dependable, code-compliant HID lighting performance for commercial and industrial installations.

Manufacturer Resources

Product Specs

Ansi Code:
S51-M169
Approval Marks:
ULR
Automatic Restart:
No
Ballast Factor Nom :
1
Ballast Type:
Magnetic HID
Base Model:
71A8453
Capacitor Catalog Number:
7C550P24RA
Capacitor Diameter Oval Dimensions:
1.85 in
Capacitor Height:
3.70 in
Capacitor Requirements:
240V
Capacitor Temperature Rating:
105°C
Capacitor Value:
55 MFD
Circuit Type:
CWA
Constant Wattage Deviation:
Within Trapezoid
Ean Upc Product:
7.81087E+11
Hipot Test 1 Minute :
2000 V
Hipot Test 2 Seconds :
2500 V
Ignitor Catalog Number:
LI501-H4
Ignitor Temperature Rating:
105°C
Input Current Nom :
3.85/2.2/1.95/1.75/0.95 A A
Input Current Open Circuit :
1.73/1.0/0.89/0.73/0.41 A
Input Current Short Circuit :
2.48-3.72/1.4-2.1/1.24-1.86/1.07-1.61/0.62-0.94 A
Input Current Starting :
2.91/1.67/1.42/1.26/0.72 A
Input Frequency:
60 Hz
Input Power Nom :
460 W
Input Voltage:
120/208/240/277/480 V
Lamp Type:
400W HPS
Material Nr 12nc :
9.1371E+11
Max Ballast Lamp Distance Remote Wiring:
2'
Net Weight Piece :
7.743 kg
Number Of Lamps:
1 piece/unit
Numerator Packs Per Outer Box:
1
Numerator Quantity Per Pack:
1
Open Circuit Voltage:
190 V
Open Circuit Voltage Test Volts :
176-214 V
Order Code:
9.1371E+11
Order Product Name:
CORE & COIL HID 71A8453001D
Power Factor Nom :
0.9
Rated Lamp Power:
400 W
Recommended Fuse Value:
10/6/5/5/3 A
Remote Wiring Configuration Allowed:
Yes
Secondary Short Circuit Current:
6.0-7.4 A
Suitable For Outdoor Use:
Yes
Temperature Marking:
C/C/D/D/C
Ul Insulation Class:
H(180°C)
Ul Recognized:
Yes
Ul Temperature Code:
1029D
Wire Length By Color:
12"
Wire Striplength:
0.5 mm
Wire Type:
Stranded
Product Core Size:
4 x 4 (2 coil)
Product Type:
HID Ballast
Department:
Electrical

Philips Lighting 913710414801 – Frequently Asked Questions

1) Will this Philips core and coil ballast run a 400W metal halide lamp, or is it HPS only?
HPS only. The Philips 913710414801 core and coil CWA ballast is built for a single 400W high pressure sodium lamp carrying ANSI code S51-M169. A 400W metal halide lamp uses a different ANSI designation and a different ballast circuit, so it will not start or run correctly on this unit. Match the ANSI code printed on the lamp to S51-M169 before wiring it in.
2) What line voltages can this 400W HPS ballast be wired to?
It is a multi-tap unit: 120, 208, 240, 277 or 480 volts at 60 Hz. You pick the tap on the input leads to match the branch circuit, which means one part number covers a 277V commercial lighting circuit and a 480V industrial feed alike. Nominal input current runs 3.85 A at 120V, 2.2 A at 208V, 1.95 A at 240V, 1.75 A at 277V and 0.95 A at 480V.
3) What fuse size should I use on a 400W HPS core and coil ballast?
Recommended fuse values track the tap you land on: 10 A at 120V, 6 A at 208V, 5 A at 240V, 5 A at 277V and 3 A at 480V. Those allow for the starting current, which is 2.91 A at 120V down to 0.72 A at 480V. Nominal input power at full load is 460 W for the 400 W lamp, so size the branch circuit with that draw in mind, not the lamp wattage alone.
4) How far can the ballast be mounted from the lamp in a remote installation?
Remote mounting is permitted, but the maximum ballast to lamp distance is 2 feet. That is short, so a pole base or remote enclosure more than a couple of feet from the socket is out. For a pole light where the ballast sits at the base and the lamp is at the top, this ballast is the wrong choice.
5) Do I need to buy a capacitor and ignitor separately for this CWA ballast?
A CWA circuit needs both, and the matched components are specified: capacitor 7C550P24RA, 55 MFD rated 240V at 105 C, and ignitor LI501-H4 also rated 105 C. The capacitor body measures 1.85 in on the oval diameter and 3.70 in tall, which is the clearance you need inside the fixture housing or ballast tray. Substituting a different microfarad value will throw the lamp off its trapezoid.
6) Can this HID ballast be used in an outdoor parking lot or roadway fixture?
Yes, it is rated suitable for outdoor use in an HID fixture, with UL Insulation Class H (180 C) windings and UL temperature code 1029D. It is UL Recognized rather than UL Listed, so it is a component intended to be installed inside a fixture or enclosure, not a standalone weatherproof assembly.
7) Why choose a CWA magnetic ballast over a reactor or lag type for a 400W HPS fixture?
CWA (constant wattage autotransformer) holds lamp wattage steady through line voltage swings, with deviation kept within the trapezoid limits and a 0.9 power factor. A reactor or lag ballast is simpler and cheaper but lets lamp output drift with the line, and reactor types only work on one specific line voltage. This unit's multi-tap input and regulation make it the choice where the feed is long, loaded, or shared with motor loads.
8) Will the light come back on by itself after a power blip?
No. Automatic restart is not a feature of this ballast, and HPS lamps need to cool before they will restrike in any case. If your site needs instant light after a momentary outage, plan on quartz restrike within the fixture or a separate emergency source.
9) What open circuit voltage and short circuit current should I see when bench testing this ballast?
Nominal open circuit voltage is 190 V, with an acceptable test window of 176 to 214 V. Secondary short circuit current should read 6.0 to 7.4 A. Open circuit input current runs 1.73 A at 120V through 0.41 A at 480V. Hipot withstand is 2000 V for one minute or 2500 V for two seconds. Readings outside those bands point to a failed coil or a miswired tap.
10) How is this Philips ballast identified for cross-referencing an old kit I am replacing?
The base model is 71A8453 and the factory order description reads CORE & COIL HID 71A8453001D. If the ballast coming out of the fixture carries a 71A8453 base number and drives a 400W HPS lamp, this is the matching core and coil.
11) What are the lead wires like and how much slack do I have for wiring it into a ballast tray?
Leads are stranded, 12 inches long by color, with a 0.5 mm strip length specified. Twelve inches gives you enough to reach terminals inside a typical fixture housing but not much more, so position the ballast accordingly. Core size is 4 x 4 with 2 coils and the piece weighs 7.743 kg, so the mounting tray or bracket has to carry that load.
12) Does this ship as a single ballast or in a multi-pack?
One piece per pack, one pack per outer box, so an order quantity of one gets you a single ballast. It drives one lamp, so a fixture with two 400W HPS lamps needs two units plus two capacitor and ignitor sets.
