Klein Tools KTB5 Portable Power Station 546Wh with Pure Sine Wave AC Output

Klein Tools KTB5 Portable Power Station 546Wh with Pure Sine Wave AC Output

Professional portable power with digital display and versatile charging options

The Klein Tools KTB5 Portable Power Station delivers reliable 546Wh capacity with clean pure sine-wave power for sensitive electronics. This professional-grade lithium-ion power station features dual 120V AC outlets with 300W continuous output, multiple USB ports, and a digital display with real-time telemetry for monitoring power status and usage.

Professional Features & Benefits

• 546Wh High-Capacity Battery: Provides extended runtime for tools and devices with 24.8Ah at 22.02V for demanding applications
• Pure Sine Wave AC Output: Delivers clean 120V power at 300W continuous (600W peak) protecting sensitive electronics from power fluctuations
• Multiple Charging Options: Four USB ports (2x USB-A at 5V 2.4A, 2x USB-C at 5V 3.0A) plus dual AC outlets accommodate various device types simultaneously

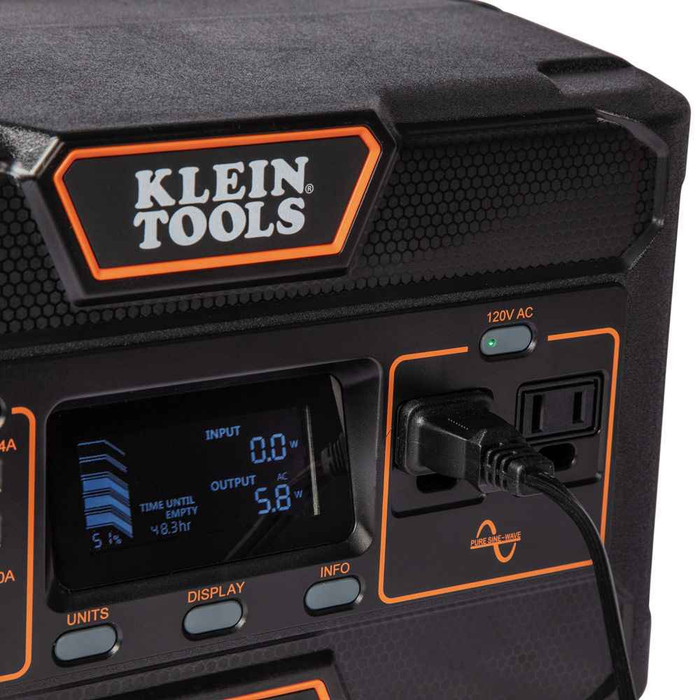

• Digital Display with Telemetry: Real-time monitoring of battery status, power consumption, and charging progress for informed power management
• Lithium-Ion Technology: High-energy density battery maintains 70% capacity after 500 cycles with proper use and care
• Portable Design: Comfort carry handle collapses for stacking while maintaining manageable 14.8 lb weight for job site mobility
• Professional Certifications: CE, UL, BC, and NOM listings ensure compliance with safety and performance standards

Technical Specifications

• Accessories: 29201, 29205,
• Battery Life: 70% Capacity After 500 Cycles (Depending Upon Use and Care)
• Battery Type: Lithium-Ion
• Battery Weight: 14.8 lb (6.71 kg)
• Capacity: 546Wh (24.8Ah / 22.02V)
• Department: Electrical
• Input Port: 8mm Round Port 25.2V DC / 3.5A
• Item Depth In : 11.5
• Item Height In : 7
• Item Weight Lbs : 13.125
• Item Width In : 7.5
• Material: Plastic, Steel
• Number Of Batteries: 1
• Number Of Lithium Ion Cells: 48
• Operating Temperature: 14� to 104�F (-10� to 40�C)
• Output Port: 2 x 120V AC; 2 x 5V USB-A; 2 x 5V USB-C
• Overall Height: 7.25" (18.4 cm)
• Overall Length: 7.5" (19.1 cm)
• Overall Width: 11.75" (29.8 cm)
• Product Details: USB-A, USB-C and AC
• Product Group: Tool Sets
• Product Subgroup: Tool Kits
• Product Type: USB-A, USB-C and AC
• Recharge Time: 8-10 Hours
• Shelf Life: Charge Every 3 Months
• Single Cell Equivalent Capacity: 3.67V / 148.8Ah
• Standard: CE, UL, BC, NOM
• Weight: 14.8 lb (6.71 kg)

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Construction and job site power for cordless tool charging
• Emergency backup power for essential electronics and devices
• Outdoor events and remote work locations requiring portable AC power
• Professional service calls where reliable clean power is essential
• Mobile workshops and field service applications
• Temporary power solutions for equipment testing and maintenance

Why Choose Klein Tools Quality?

Klein Tools KTB5 combines professional-grade lithium-ion technology with comprehensive safety certifications including CE, UL, BC, and NOM listings. The durable plastic and steel construction withstands demanding work environments while the 8-10 hour recharge time and 3-month shelf life maintenance schedule ensure reliable performance when you need it most.
