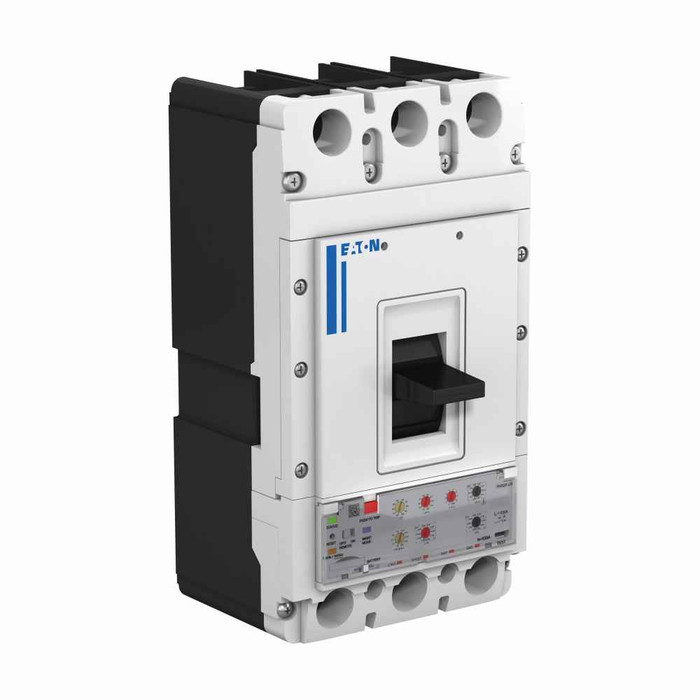

Eaton PDG34G0600E2ZJ Power Defense Globally Rated, Frame 3, Four Pole, 600A, 35kA/480V, PXR20 LSI w/ ZSI & Relays, Std Line Load Term (PDG3X4TA630)

Eaton PDG34G0600E2ZJ Power Defense Globally Rated, Frame 3, Four Pole, 600A, 35kA/480V, PXR20 LSI w/ ZSI & Relays, Std Line Load Term (PDG3X4TA630)

(No reviews yet) Write a Review

Model: PDG34G0600E2ZJ
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5,148.40
$5,098.40
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Power Defense Globally Rated, Frame 3, Four Pole, 600A, 35kA/480V, PXR20 LSI w/ ZSI & Relays, Std Line Load Term (PDG3X4TA630)

Manufacturer Resources

Product Specs

Amperage Rating:
600A
Certifications:
CCC Marked
Circuit Breaker Frame Type:
Complete breaker
Circuit Breaker Type:
PD3 Global
Class:
Class A
Compliances:
RoHS Compliant
Frame:
Frame 3
Interrupt Rating:
35 kAIC at 480 Vac
Interrupt Rating Range:
65 kAIC @240V (UL)
Max Rated Operation Voltage Ue Ac:
600
Number Of Poles:
Four-pole (100% N)
Product Height:
257.1 MM
Product Length Depth:
109.1 MM
Product Weight:
7.68 KG
Product Width:
182.9 MM
Protection:
100% neutral protection
Special Features:
ZSI / Relays
Switch Off Technique:
Electronic
Terminals:
Standard Line and Load
Trip Setting Amperage:
600A
Trip Type:
PXR 20 LSI
Voltage Rating:
600 Vac
Voltage Rating Max :
600 V
!
