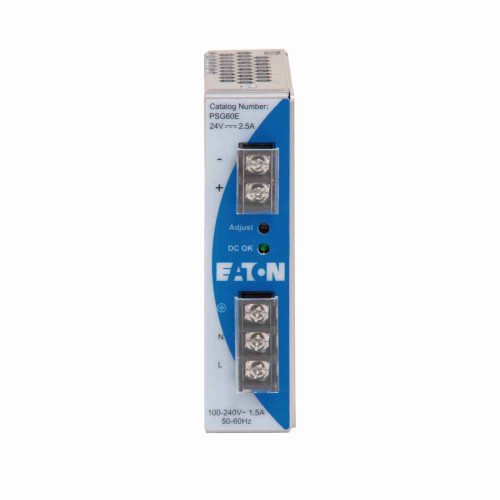

Power Supply, 60W, Single-phase, 100-240V input voltage, 24 Vdc ± 2% output voltage, 1.1A input current, 2.5A output current, 30A inrush current, 47-63 Hz, 85-264V, 120-375 Vdc, Aluminum enclosure, Heavy-duty screw terminals
Manufacturer Resources
Product Specs
- Catalog Notes:
- Ratings for single-phase are at 115V. 0 Hz at DC input.
- Certifications:
- cULus/UL 60950-1
- Compliances:
- CE Marked
- Enclosure Material:
- Aluminum
- Frequency Rating:
- 47-63 Hz
- Input Voltage:
- 100-240 Vac
- Operating Temperature Max:
- 75 °C
- Operating Temperature Min:
- -20 °C
- Output Voltage:
- 24 V
- Phase:
- Single-phase
- Power Consumption:
- 60 W
- Product Height:
- 4.72 in
- Product Length Depth:
- 4.76 in
- Product Weight:
- 2.25 lb
- Product Width:
- 1.26 in
- Rated Operational Current:
- 2.5 A output
- Series:
- PSG
- Special Features:
- Varistor transient surge voltage, surge voltage protection against internal surge, safety class 1 with ground connection, finger-safe cover
- Terminals:
- Heavy-duty screw
- Voltage Rating:
- 85-264 Vac, 100-375 Vdc
- Product Group:
- Electrical
