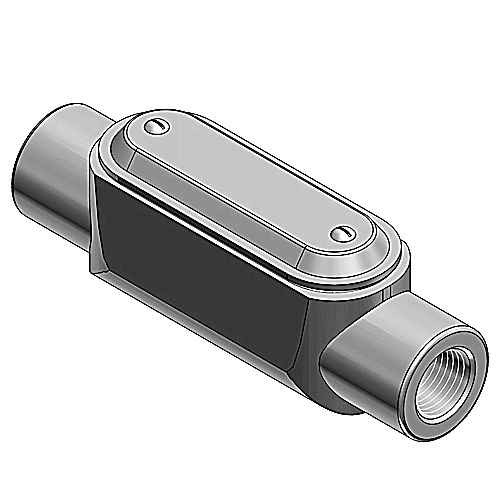

Thomas & Betts C67CG-TB Pre-Assembled Form 7 Conduit Body, Cover & Gasket

Thomas & Betts C67CG-TB Pre-Assembled Form 7 Conduit Body, Cover & Gasket

(No reviews yet) Write a Review

Model: C67CG-TB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$606.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Pre-Assembled Form 7 Conduit Body, Cover & Gasket

  • Features

    • T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton's Form 7 bodies and covers.
    • Triple-layer protection...including two layers of epoxy coating which stops corrosion in its tracks.
    • Bodies are designed with a flat back, allowing more cubic inch capacity.
    • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain.
    • Conduit bodies make 90 degree bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes.


C67CG-TB - spec sheet

Manufacturer Resources

Product Specs

Form:
7
Hub Size:
2 Inch
Outer Dimensions Inches :
1x1x1
Outer Quantity:
2
Product Group:
Electrical Boxes
Standard:
UL E2969, CSA
Unspsc:
39131708 Electrical conduit fitting body
Weight Uom:
5.82 lbs. Each
Department:
Electrical
Product Subgroup:
Box Covers
Product Type:
Pre-Assembled Form 7 Conduit Body, Cover & Gasket
Product Finish:
Zinc Plated with Epoxy Powder Coat
Product Details:
Pre-Assembled Form 7 Conduit Body, Cover & Gasket
Product Material:
Malleable Iron

Thomas & Betts C67CG-TB – Frequently Asked Questions

1) Will the Thomas & Betts C67CG-TB fit Crouse-Hinds or Appleton Form 7 conduit bodies and covers?
Yes. T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton Form 7 bodies and covers, so the C67CG-TB drops into a run already built with either of those brands. That matters on maintenance work where you are replacing one damaged body in an existing line rather than rebuilding the run.
2) Does the C67CG-TB come with the cover and gasket, or do I have to order those separately?
Body, cover and gasket ship pre-assembled as one unit, so there is nothing else to buy to close it up. That is the difference between this and buying a bare body where the cover and gasket are separate line items and often arrive short on the job.
3) Is this conduit body OK for a damp or corrosive outdoor location?
The C67CG-TB is malleable iron with a zinc plated base and epoxy powder coat over it, described as triple-layer protection including two layers of epoxy coating to stop corrosion. Combined with the gasketed cover that is the construction used for wet and corrosive exposure. It is not a stainless or non-metallic body, so for direct chemical immersion service check the plant's material spec.
4) Is the Thomas & Betts C67CG-TB UL listed?
Yes, it carries UL file E2969 and CSA. Both marks are on the product, which covers the usual inspection requirement on commercial and industrial conduit runs in the US and Canada.
5) Why use a conduit body instead of pulling a 90 degree bend in the conduit?
A conduit body makes the 90 degree turn without a field bend and leaves you a permanent access point at the corner for pulling and for future changes to the system. Conduit bodies also serve as mounting outlets for wiring devices and lighting fixtures. On a 2 inch run that is the practical choice, since bending 2 inch rigid takes a hydraulic bender and gives you no access later.
6) Does the flat-back design of the T&B Form 7 body actually help on a hard pull?
It does two things. The flat back gives more cubic inch capacity than a rounded back, and the smooth interior eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors while you are pulling. On a 2 inch run with heavy conductors that means less jacket damage and less strain on the installer.
7) How heavy is the C67CG-TB and how many come in a carton?
Each assembled unit weighs 5.82 lbs, and the outer carton holds 2. Worth knowing if you are ordering by the box for a large job or staging material up a lift.
8) What part number do I put on the purchase order for this T&B conduit body?
Order it as Thomas & Betts C67CG-TB. That single number covers the body, cover and gasket together as one assembled 2 inch Form 7 unit.
