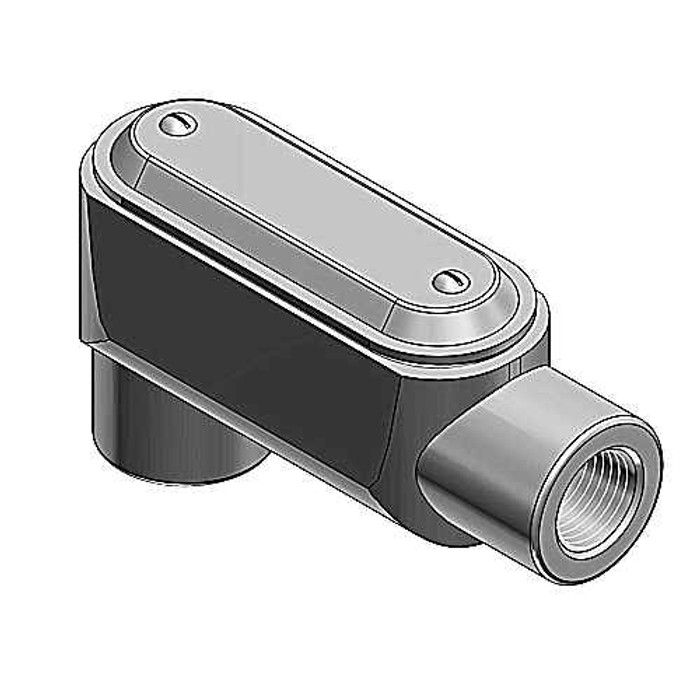

Thomas & Betts LB47CG-TB Pre-Assembled Form 7 Conduit Body, Cover & Gasket

Thomas & Betts LB47CG-TB Pre-Assembled Form 7 Conduit Body, Cover & Gasket

(No reviews yet) Write a Review

Model: LB47CG-TB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$275.96
$265.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Pre-Assembled Form 7 Conduit Body, Cover & Gasket

  • Features

    • Triple-layer protection...including two layers of epoxy coating which stops corrosion in its tracks.
    • T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton's Form 7 bodies and covers.
    • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain.
    • Bodies are designed with a flat back, allowing more cubic inch capacity.
    • Conduit bodies make 90 degree bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes.


LB47CG-TB - spec sheet

Manufacturer Resources

Product Specs

Form:
7
Hub Size:
1-1/4 Inch
Outer Dimensions Inches :
7.75x6.75x3.37
Outer Quantity:
2
Product Group:
Electrical Boxes
Standard:
UL E2969, CSA
Unspsc:
39131708 Electrical conduit fitting body
Weight Uom:
2.93 lbs. Each
Department:
Electrical
Product Subgroup:
Box Covers
Product Type:
Pre-Assembled Form 7 Conduit Body, Cover & Gasket
Product Finish:
Zinc Plated with Epoxy Powder Coat
Product Details:
Pre-Assembled Form 7 Conduit Body, Cover & Gasket
Product Material:
Gray Iron

Thomas & Betts LB47CG-TB – Frequently Asked Questions

1) Will the Thomas & Betts LB47CG-TB fit 1-1/4 inch rigid conduit?
Yes. The LB47CG-TB is built with 1-1/4 inch threaded hubs, so it lands on 1-1/4 inch rigid or IMC runs. It is an LB body, meaning the conduit enters straight and turns 90 degrees out the back opening, which is how you get out of a wall and continue along it without a field bend.
2) Can I use a Thomas & Betts Form 7 conduit body to replace a Crouse-Hinds or Appleton one?
You can. T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton Form 7 bodies and covers, so the LB47CG-TB drops into an existing Form 7 installation and its cover will mate with those brands' bodies of the same form and size.
3) Does the LB47CG-TB come with a cover and gasket, or do I have to order those separately?
Cover and gasket ship pre-assembled on the body, so it is one part number for the complete assembly. You still supply the conduit, any bushings, and the mounting hardware for the run.
4) Is this conduit body suitable for a wet or corrosive outdoor location?
The LB47CG-TB is gray iron with a zinc plated base and an epoxy powder coat over it, described as triple-layer protection with two epoxy layers for corrosion resistance, and it ships with the gasket already fitted under the cover. That combination is what you want for damp, wet, and corrosive exterior runs.
5) Is the Thomas & Betts LB47CG-TB UL listed?
Yes, it carries UL file E2969 and is CSA certified, which is what most inspectors and institutional specs look for on a metal conduit body.
6) Does a Form 7 body give me more wire room than a standard conduit body?
The T&B Form 7 design uses a flat back, which increases the cubic inch capacity compared to a rounded-back body, and the interior is smooth so cable jacket and insulation do not get cut on rough surfaces during a pull. That matters most on 1-1/4 inch runs with large conductors where you are pulling through the body.
7) Can I mount a light fixture or wiring device on this conduit body?
Yes. Besides making the 90 degree turn in a run, Form 7 conduit bodies serve as mounting outlets for wiring devices and lighting fixtures, and they give you access to the conductors later for maintenance or system changes.
8) How many LB47CG-TB conduit bodies come in a carton?
The standard outer carton holds 2 pieces of the LB47CG-TB. Useful if you are buying by the case for a multi-fixture or multi-penetration job.
