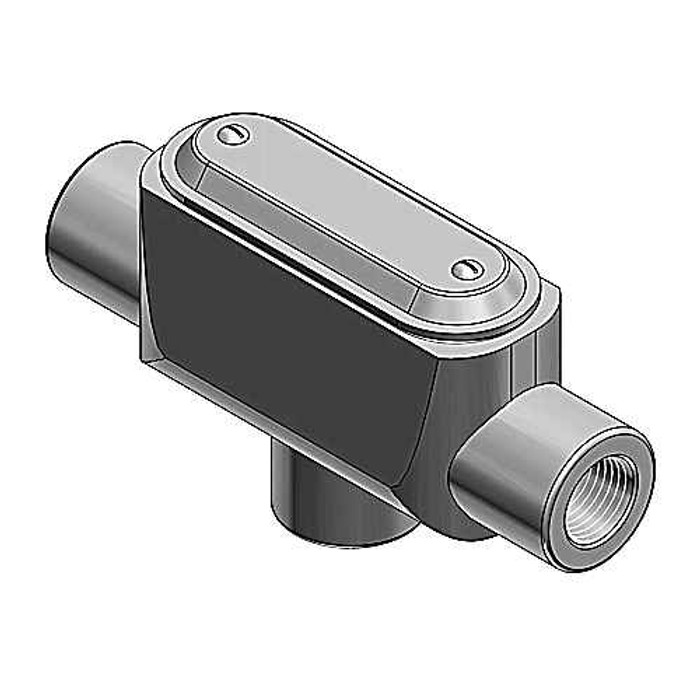

Pre-Assembled Form 7 Conduit Body, Cover & Gasket

  • Features

    • T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton's Form 7 bodies and covers.
    • Triple-layer protection...including two layers of epoxy coating which stops corrosion in its tracks.
    • Bodies are designed with a flat back, allowing more cubic inch capacity.
    • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain.
    • Conduit bodies make 90 degree bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes.


TB47CG-TB - spec sheet

Manufacturer Resources

Product Specs

Form:
7
Hub Size:
1-1/4 Inch
Outer Dimensions Inches :
7.75x6.75x3.37
Outer Quantity:
2
Product Group:
Electrical Boxes
Standard:
UL E2969, CSA
Unspsc:
39131708 Electrical conduit fitting body
Weight Uom:
3.22 lbs. Each
Department:
Electrical
Product Subgroup:
Box Covers
Product Type:
Pre-Assembled Form 7 Conduit Body, Cover & Gasket
Product Finish:
Zinc Plated with Epoxy Powder Coat
Product Details:
Pre-Assembled Form 7 Conduit Body, Cover & Gasket
Product Material:
Gray Iron

Thomas & Betts TB47CG-TB – Frequently Asked Questions

1) Will a Thomas & Betts Form 7 conduit body work with Crouse-Hinds or Appleton Form 7 fittings?
Yes. T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton Form 7 bodies and covers, so the TB47CG-TB can replace one of those on an existing run, and a T&B cover will land on a Crouse-Hinds or Appleton Form 7 body of the same size.
2) Does the TB47CG-TB come with the cover and gasket, or do I have to order those separately?
It ships pre-assembled: body, cover and gasket together as one item. Nothing else is needed to close it up, which is the practical difference between this and buying a bare body and then chasing the right cover and gasket to match.
3) Is the Thomas & Betts TB47CG-TB listed for use on an inspected commercial job?
It carries UL file E2969 and CSA certification, which is what most inspectors and spec writers are looking for on a metallic conduit body.
4) Is this conduit body suitable for a damp or corrosive outdoor location?
The casting is gray iron finished in zinc plate plus epoxy powder coat, described as triple-layer protection with two layers of epoxy coating for corrosion resistance, and the gasket is included with the cover. That combination is what you want for outdoor, washdown or industrial runs rather than a plain unfinished malleable body.
5) How much room do I need to allow for a 1-1/4 inch Form 7 conduit body in a tight chase?
Outer dimensions are 7.75 x 6.75 x 3.37 inches. Lay that against your chase or strut spacing before you commit, and remember the cover has to swing clear for pulling. The unit weighs 3.22 lbs each, so overhead mounting should be into structure or strut, not just a single anchor.
6) Why choose a Form 7 conduit body over a standard body for a cable pull?
The Form 7 body is made with a flat back, which gives more cubic inch capacity and removes the rough internal surfaces that can cut cable jacket, insulation and conductors while you are pulling. On long pulls with jacketed cable that is the reason to spec Form 7, and it cuts pull time and installer strain as well.
7) What is a conduit body like the TB47CG-TB actually used for on a job?
Three jobs: making 90 degree bends in a conduit run without bending pipe, serving as a mounting outlet for wiring devices and lighting fixtures, and giving access to conductors for maintenance or future changes. That last one is why crews put them at intervals on long runs even when no direction change is needed.
8) Is the TB47CG-TB sold individually or in a multi-pack?
The standard outer carton quantity is 2, and each unit is a complete pre-assembled body, cover and gasket weighing 3.22 lbs.
