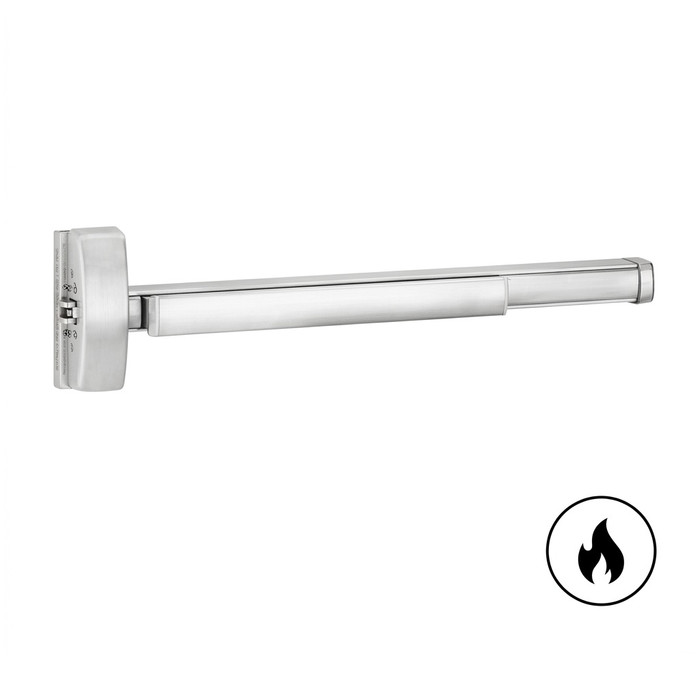

BEST 2101 Series Fire Rated Wide Stile Rim Exit Device 36"

BEST 2101 Series Fire Rated Wide Stile Rim Exit Device 36"

Professional Fire-Rated Exit Device Solution

The BEST 2101 Series Fire Rated Wide Stile Rim Exit Device delivers professional-grade emergency egress protection for 36" wide openings. This UL Listed fire exit hardware features a center driven cam design compatible with access control exterior trim, requiring minimum 50-degree tailpiece rotation for latch retraction. Constructed with heavy wrought brass, bronze, or stainless steel components and a stainless steel deadlocking latchbolt with 3/4" throw for reliable performance in commercial fire-rated applications.

Professional Features & Benefits

• Door Width Compatibility: Designed for 36" wide openings with doors 1-3/4" to 2-1/4" thick for versatile installation options.
• Fire-Rated Construction: UL Listed panic and fire exit hardware conforming to UL10C and UBC 7-2 standards for code compliance.
• Access Control Integration: Center driven cam design accommodates access control exterior trim with minimum 50-degree tailpiece rotation requirement.
• Heavy-Duty Construction: Cover, touchbar, device channel, lock/hinge side filler and end cap manufactured from heavy wrought brass, bronze, or stainless steel for exceptional durability.
• ANSI/BHMA Certification: BHMA certified for ANSI 156.3, Grade 1 performance standards for commercial applications.
• Reversible Design: Field reversible for all functions and trims with standard RHRB packaging for installation flexibility.
• Professional Latchbolt: Stainless steel deadlocking latchbolt with 3/4" throw provides secure latching performance.
• Wide Stile Configuration: Engineered for wide stile door applications with comprehensive ANSI preparation coverage including A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) mortise lock preparation.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: Yes
• Product Category: Exit Devices and Trim
• Product Group: Exit Devices and Trim
• Product Model: 2101
• Product Size: 36"
• Product Subgroup: Exit Devices - Rim
• Product Type: Exit Devices - Rim
• Series: 2100 Series
• Stile Type: Wide Stile
• Subcategory: Rim Exit Devices
• Wood Door Compatible: No

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2-1/4"), stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) mortise lock preparation.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion. Configure touchbar height at 39-15/16" from floor standard or as situation dictates.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST 2101 Series exit devices deliver professional-grade reliability with heavy wrought brass, bronze, or stainless steel construction rated for Grade 1 commercial performance. UL Listed fire exit hardware conforming to UL10C and UBC 7-2 standards with ANSI/BHMA certification ensures code compliance and dependable operation. Engineered for demanding commercial fire-rated applications where reliable emergency egress performance is essential.
