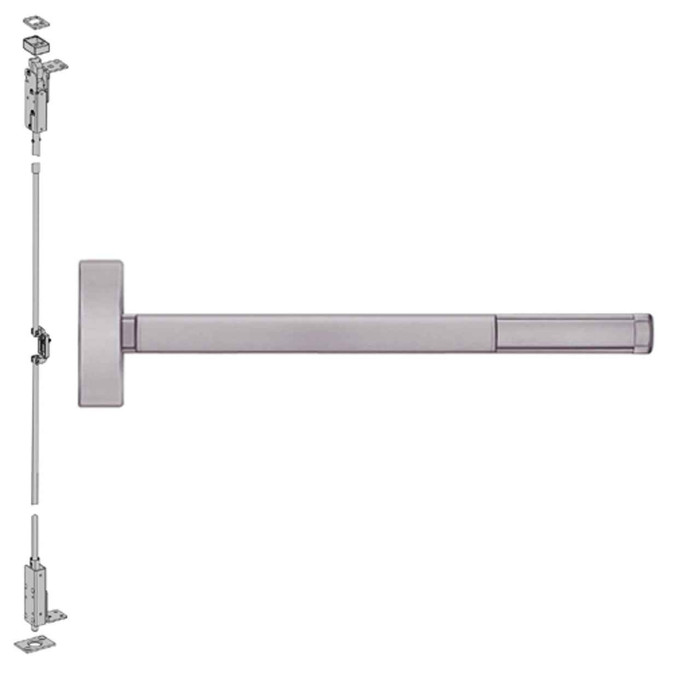

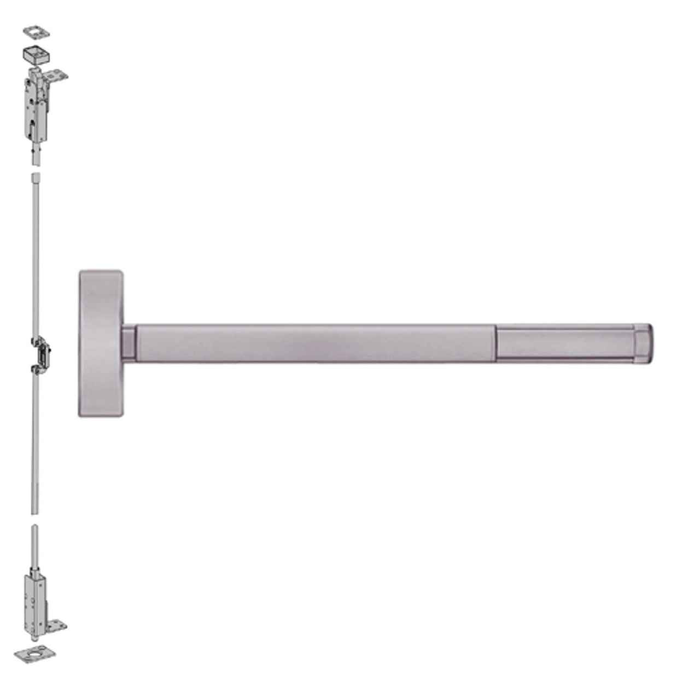

Precision 28 Series - Reversible
Features
Doors – For all types of single and double door applications. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide by 10'-0" high openings. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide by 6'-8"to 8'-0" high openings.
Functions – Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
Base Material – The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis – Lock Stile Assembly - Investment Cast Steel, Zinc Dichromated.
Vertical Rods – Steel, plated. Top Rod is adjustable from 6'-8" to 8'-0" or from 8'-1" to 10'-0".
Top Latchbolt – Stainless Steel, Deadlocking, 3/4" throw.
Bottom Bolt – Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.
Top Strike – No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.
Center Chassis – Steel plated, heavy wrought Steel Assembly with lock in place Top and Bottom Latch Adjustors. Adjustment accessible through the door after installation
Bottom Strike – No. S460, Flush mounted, Steel, Black Powder Coated.
Dogging – 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
Touchbar Height – 39-15/16" from floor standard. Specify required height if other than standard.
Reversible – Reversible for all functions and trims.Standard packaging RHRB.
UL Listed – Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE. Conforms to UL10C and UBC 7-2.
ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.
Finishes –
605 606 612 613 622
625 626W 628 630 690
