Precision Hardware Inc (PHI) 2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,449.00
$1,869.94
Brand:
Precision
Category:
Exit Devices and Trim
Series:
2700 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Concealed Vertical Rod
Subcategory:
Concealed Vertical Rod
Commercial/Residential:
Commercial
Handle Type:
Lever

Model: 2708 628 36

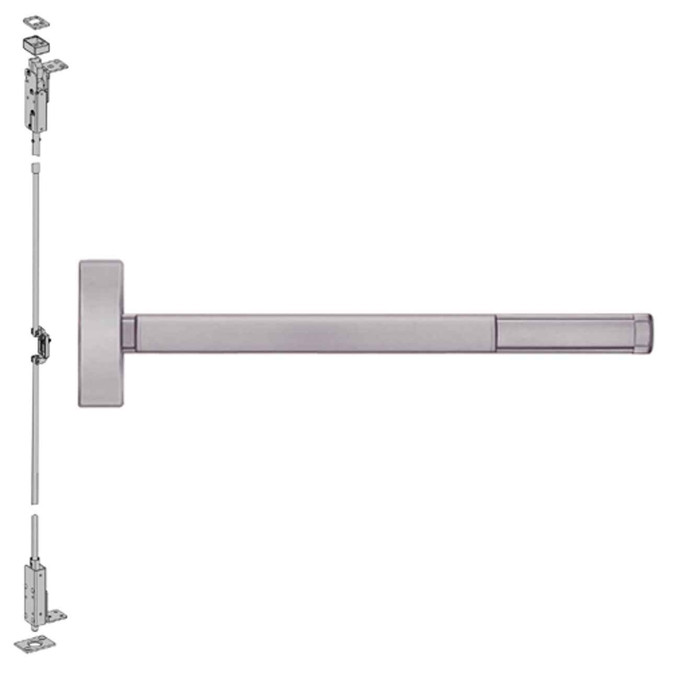

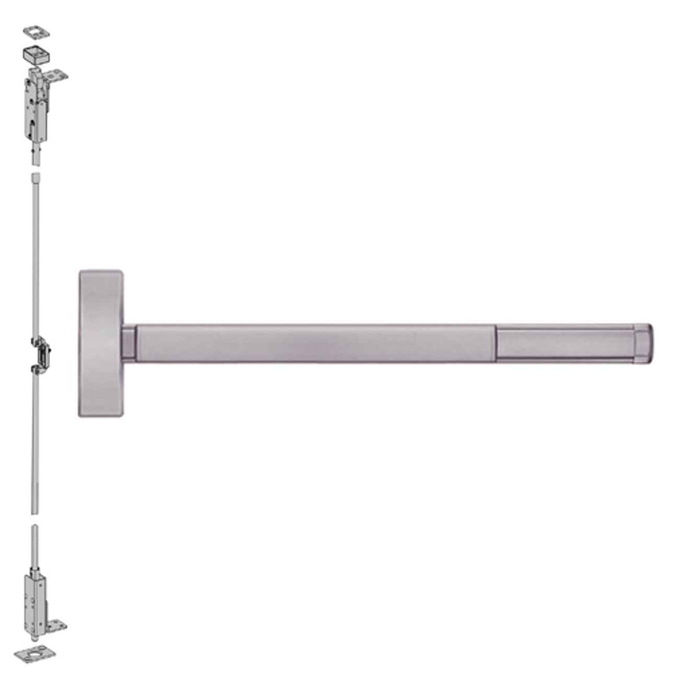

Precision Hardware Inc (PHI) 2708 Series - Key Controls Lever, Wide Stile Reversible Wood Door Concealed Vertical Rod Exit Device

(No reviews yet) Write a Review
$3,449.00
$1,869.94
Selected Finish is
Selected Trim Option is
Adding to cart… The item has been added
FREE SHIPPING for orders over $149
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
FREE KEYING services available on all locks
Brand:
Precision
Category:
Exit Devices and Trim
Series:
2700 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Concealed Vertical Rod
Subcategory:
Concealed Vertical Rod
Commercial/Residential:
Commercial
Handle Type:
Lever

Precision 27 Series - Reversible

Features

Doors – For all types of single and double door applications. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide by 10'-0" high openings. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide by 6'-8"to 8'-0" high openings.


Functions – A Universal Exit Device. Add Trim for desired function.


Base Material – Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.


Chassis – Lock Stile Assembly - Investment Cast Steel, Zinc Dichromated.


Vertical Rods – Steel, plated. Top Rod is adjustable from 6'-8" to 8'-0" or from 8'-1" to 10'-0". Additional adjustments are available through the lock front filler.


Top Latchbolt – Stainless Steel, Deadlocking, 3/4" throw.


Bottom Bolt – Steel plated, independent action 5/8" throw, with
adjustment range to suit 3/4" door undercut.


Top Strike – No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.


Bottom Strike – No. S460, Flush mounted, Steel, Black Powder Coated.


Dogging – 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.


Touchbar Height – 39-15/16" from floor standard. Specify required height if other than standard.


Reversible – Reversible for all functions and trims.Standard packaging RHRB.


UL Listed – Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE. Conforms to UL10C and UBC 7-2.

ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.

Finishes
605 606 612 613 622
625 626W 628 630 690

Cylinders – Rim Type, not furnished standard. Specify when
required. For cylinder details see page 19.
Stile Width – See Stile Information on page 37.

Less Bottom Rod (LBR) Option – Specify suffix “LBR” (e.g. 2703LBR).
