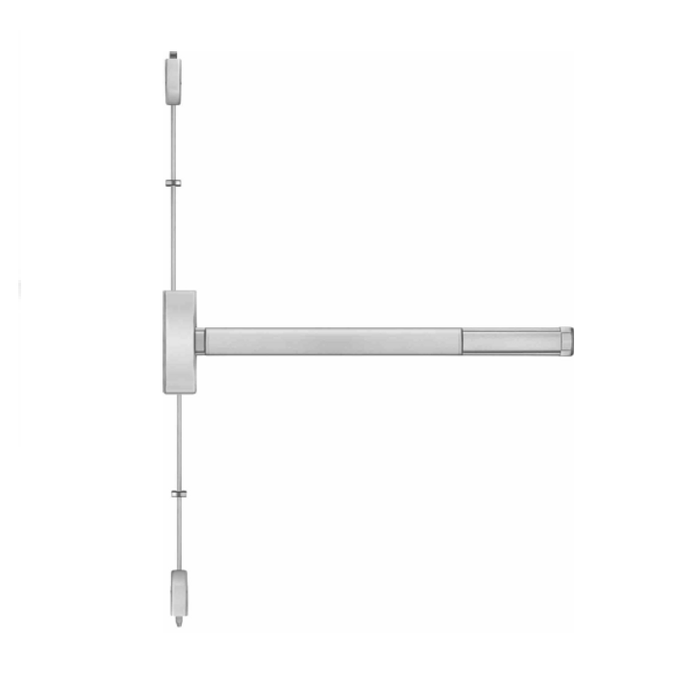

Precision Hardware Inc (PHI) 2208 Series - Key Controls Lever, Wide Stile Reversible Surface Vertical Rod Exit Device

(No reviews yet) Write a Review

Model: 2208 628 36
$2,788.00
$1,511.57
Selected Finish is
Selected Trim Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,788.00
$1,511.57
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

Precision 22 Series - Reversible
The 22 Series Device is designed to be compatible with many
manufacturers’ Access Control exterior trim. The device
incorporates a center driven cam to receive the tailpiece of the
access control product. The tailpiece rotation required to retract the
latch is a minimum of 50 degrees.

Features

Doors – For all types of single and double door applications. Available for 1-3/4" to 2-1/4" thick, up to 4-0" wide by 10'-0" high openings. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide by 7'- 0" high openings. Device – Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.


Functions – Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.


Base Material – The Covers, Touchbar, Device Channel, Lock/Hinge Side Filler, Vertical Rods and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.


Chassis – Investment Cast Steel, Zinc Dichromated.


Top Latchbolt – Stainless Steel, Deadlocking, 3/4" throw.


Bottom Bolt – Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.


Top Strike – No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard.


Bottom Strike – No. S460, Flush mounted, Steel, Black Powder Coated.


Dogging – 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Touchbar Height – 39-15/16" from floor standard.
Specify required height if other than standard.

Reversible – Reversible for all functions and trims. Standard packing RHRB.

UL Listed – Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Conforms to UL10C and UBC 7-2.

ANSI/BHMA – Devices are BHMA certified ANSI 156.3, Grade 1.

Finishes
605 606 612 613 622
625 626W 628 630 690
For Finish description see page 3.

Cylinders – Rim type, not furnished standard.

Less Bottom Rod (LBR) Option – Specify suffix “LBR” (e.g. 2208LBR).

Precision 2000 Sell Sheet

Precision 2000 Series Catalog

Precision 2000 FAQ



Manufacturer Resources

Product Specs

Category:
Exit Devices and Trim
Series:
2200 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Surface Vertical Rod
Subcategory:
Surface Vertical Rod
Commercial/Residential:
Commercial
Handle Type:
Lever
