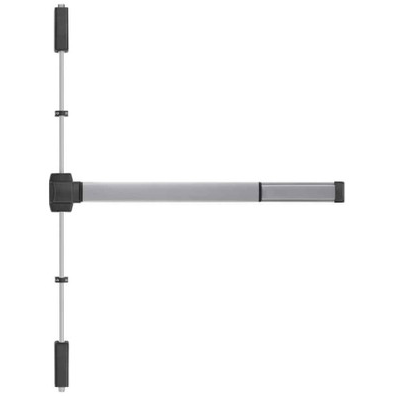

BEST Precision 5208 Series 48" Surface Vertical Rod Exit Device with Key Controls Lever

BEST Precision 5208 Series 48" Surface Vertical Rod Exit Device with Key Controls Lever

(No reviews yet) Write a Review

Model: 5208 689 48
$1,257.00
$1,090.64
Selected Finish is
Selected Trim is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,257.00
$1,090.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST Precision 5208 Series 48" Surface Vertical Rod Exit Device with Key Controls Lever

Professional Grade Exit Device for Commercial Applications

The BEST Precision 5208 Series delivers professional-grade exit device performance with surface vertical rod configuration for 48" wide openings. This reversible exit device accommodates doors from 1-3/4" to 2-1/4" thick and up to 4'-0" wide by 10'-0" high, featuring heavy wrought steel construction with zinc dichromate plating for exceptional durability. UL Listed for panic and fire exit hardware applications with ANSI/BHMA Grade 1 certification ensures reliable performance in demanding commercial environments.

Professional Features & Benefits

  • Door Compatibility: Designed for 48" wide openings with 1-3/4" to 2-1/4" door thickness range for versatile installation options.
  • Heavy-Duty Construction: Heavy wrought steel active case and touchbar sub-assembly with zinc dichromate plating provides exceptional durability for high-traffic applications.
  • Reversible Design: Field-reversible for all functions and trims with standard RHRB packaging allows flexible installation configuration.
  • Professional Grade Certification: UL Listed for panic and fire exit hardware with ANSI/BHMA Grade 1 certification meets stringent commercial building requirements.
  • Precision Latch Performance: Stainless steel deadlocking top latchbolt with 3/4" throw and independent action bottom bolt with 5/8" throw ensures reliable latching.
  • Dogging Capability: Standard 1/4 turn hex key dogging provides convenient maintenance access for non-fire applications.
  • Universal Cylinder Compatibility: Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation with through bolts for secure mounting.
  • Durable Strike Components: Investment cast stainless steel top strike (No. S300) and steel bottom strike (No. S460) with black powder coating for long-term performance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Fire Rating: No
  • Handle Type: Lever
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Surface Vertical Rod
  • Series: 5200 Series
  • Subcategory: Surface Vertical Rod

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose BEST Quality?

BEST Precision 5200 Series exit devices deliver professional-grade reliability with heavy wrought steel construction and zinc dichromate plating for exceptional durability. UL Listed for panic and fire exit hardware with ANSI/BHMA Grade 1 certification ensures dependable performance in demanding commercial applications. Engineered for demanding commercial applications where dependable performance is essential.

Product Specs

Series:
5200 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Surface Vertical Rod
Subcategory:
Surface Vertical Rod
Commercial/Residential:
Commercial
Handle Type:
Lever
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

BEST 5208 689 48 – Frequently Asked Questions

1) Will the BEST Precision 5208 exit device fit a 2-inch thick door?
Yes. The Precision 5208 surface vertical rod device covers a door thickness range of 1-3/4 inches through 2-1/4 inches, so a 2 inch door is within range. Maximum door size is 4 feet wide by 10 feet high, and this configuration is built for a 48 inch wide opening.
2) Do I have to order the 5208 vertical rod device handed?
No. The 5208 is field reversible for all functions and trims, and it ships packaged RHRB as standard. One part number covers either hand, so you can stock a single device for a building with doors swinging both ways and set the hand at install.
3) Will the 5208 latch into the strikes already on my opening?
Plan on using the strikes that come with it. The top latchbolt is deadlocking stainless steel with a 3/4 inch throw and the bottom bolt is independent action with a 5/8 inch throw, matched to the supplied No. S300 investment cast stainless top strike and No. S460 black powder coated steel bottom strike. If your existing strikes were cut for a different brand's rod device, the throws and locations will not line up.
4) What is the difference between hex dogging, cylinder dogging, and less dogging on the Precision 5208?
Dogging holds the touchbar depressed so the door pushes free during business hours. Standard on the 5208 is 1/4 turn hex key dogging, used for non-fire applications. Cylinder dogging swaps the hex socket for a keyed cylinder so the same key system controls it instead of a loose hex wrench, which is what most property managers want when maintenance staff turnover is a concern. Less dogging leaves the feature off entirely, which is what you order for a fire rated opening where dogging is not permitted.
5) Can I get the 5208 with a lever trim, or is it exit only?
Both. You can order the 5208 as device only, or with 808A keyed lever trim for outside access control. The device covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation, so it works with standard commercial door prep, and it mounts with through bolts.
6) The BEST Precision 5208 is not fire rated - what surface vertical rod device can I use on a fire door instead?
The BEST Precision 5208 Series carries a Fire Rating of No, so it is a panic device for non-fire openings. For a labeled fire door opening, fire rated surface vertical rod devices include the Adams Rite 3100 Series 30 inch device, the Arrow S1150 30 inch device supplied less trim, the Sargent 2727 reversible Grade 1 device, and the TownSteel 9700 Series EF9727 in 36 by 84 inch. All four are listed as fire rated, and fire rated devices do not include dogging, which is the tradeoff against the 5208 hex or cylinder dogging options.
7) What is the closest Grade 1 surface vertical rod equivalent to the BEST Precision 5208 from another manufacturer?
The BEST Precision 5208 is an ANSI/BHMA Grade 1 surface vertical rod device with a touchbar and field-reversible operation. Direct Grade 1 surface vertical rod counterparts include the Von Duprin 2227 wide stile non-handed device, the Corbin Russwin ED5400 wide stile device that accepts trim, the Falcon 25-V-EO wide stile device, and the TownSteel ED8927 wide stile device. All are Grade 1 surface vertical rod devices; the main difference from the 5208 is that the Falcon 25-V-EO is cataloged as exit only, while the 5208 can be ordered with 808A keyed lever trim.
8) I have a narrow stile aluminum storefront door - can I use the BEST Precision 5208?
The BEST Precision 5208 is a touchbar surface vertical rod device covering ANSI A115.2 (Type 161) or ANSI A115.18 cylinder prep and mounted with through bolts, sized for doors 1-3/4 to 2-1/4 inches thick. For a narrow stile aluminum storefront, devices specifically cataloged as narrow stile include the Von Duprin 3327A grooved case device, the Von Duprin 7527, the Corbin Russwin ED4400, the Falcon 19-V-EO, the Adams Rite 8200 Series, and the TownSteel ED3727. The Adams Rite 8200 and the narrow stile Von Duprin units are the usual choices where stile width will not accept a wide stile case.
9) Is the Sargent 12-8710 a substitute for the BEST Precision 5208?
No. The Sargent 12-8710 is cataloged with a Dummy function, meaning it is an inactive trim or device appearance unit rather than an operating panic device. The BEST Precision 5208 is a working surface vertical rod exit device with a stainless steel deadlocking top latchbolt at 3/4 inch throw and an independent action bottom bolt at 5/8 inch throw. Use the 12-8710 only on the inactive leaf of a pair where a matching look is wanted, not where egress hardware is required.
10) Which alternatives cover an opening wider than 36 inches like the BEST Precision 5208 48 inch does?
The BEST Precision 5208 in the 48 inch size is built for 4 foot wide openings up to 10 feet high. Most comparable surface vertical rod devices in the category are cataloged at 30, 33 or 36 inch bar lengths - for example the Von Duprin 2227 at 36 inches, the Corbin Russwin ED5400 at 36 inches, the Adams Rite 8100 at 30 inches, and the Design Hardware 1000V at 33 inches. If the leaf is a true 4 foot door, the 48 inch 5208 is the device sized to it.
11) What does the less bottom rod option on the 5208 actually change?
Less bottom rod deletes the bottom rod, bolt and floor strike, so the device latches only at the head. Contractors specify it where floor conditions make a bottom strike a problem: carpet transitions, uneven slabs, drainage, or a door that sweeps over a threshold. It also removes the trip hazard and the bottom bolt maintenance. The 5208 is orderable either way, in both hex and cylinder dogging.
12) Why use a surface vertical rod device instead of a rim device on my pair of doors?
A surface vertical rod device like the 5208 latches at the head and at the floor, so a pair of doors can be secured without a center mullion and both leaves swing clear. A rim device latches into a strike on the frame or a removable mullion, which means either a mullion in the middle of the opening or an inactive leaf. Choose the vertical rod when you need the full clear width for moving equipment or furniture. If floor latching is a problem, order the 5208 less bottom rod.
13) Is the Precision 5208 heavy enough for a school or hospital exit door?
It is built for that traffic. The active case and touchbar sub-assembly are heavy wrought steel with zinc dichromate plating, the top latchbolt is stainless steel and the top strike is investment cast stainless. It carries ANSI/BHMA Grade 1 certification, the top commercial grade, and it is a commercial-duty device rather than a residential one.
14) What is a simpler exit-only alternative if I do not need the keyed lever trim on the BEST Precision 5208?
The BEST Precision 5208 can be ordered as device only without trim, so the simplest route is that configuration. If you want a device cataloged strictly as exit only, options include the Arrow 3700 Series wide stile pushpad device, the Falcon 20 Series wide stile Grade 1 device, the Sargent 3727 Grade 1 device with a standard push bar, and the Orca OED56 standard duty device supplied less bottom rod in aluminum finish and non-handed. Note the Arrow 3700 and Orca OED56 use a pushpad or standard duty case rather than the heavy wrought steel touchbar of the 5208.
15) I need a crossbar-style device rather than the touchbar on the BEST Precision 5208 - what should I look at?
The BEST Precision 5208 uses a heavy wrought steel touchbar sub-assembly, so it will not match an existing crossbar aesthetic. The Corbin Russwin ED7400 is a narrow stile crossbar surface vertical rod device, Grade 1, that accepts operator trim. The Sargent 3727 uses a standard push bar and the Arrow 3700 Series uses a pushpad, both in wide stile. Match the actuator style to whatever is on adjacent doors if you are standardizing a building.
16) Which surface vertical rod devices are confirmed for wood doors if the BEST Precision 5208 is going on a wood leaf?
For wood door applications, the TownSteel EF9727, ED3727 and ED8927 are all listed as wood door compatible; the EF9727 is additionally fire rated and heavy duty. By contrast, the Von Duprin 7527 and 7827 are listed as not wood door compatible. The BEST Precision 5208 is a surface mounted device using through bolts and covering ANSI A115.2 (Type 161) or ANSI A115.18 cylinder prep, so verify the wood door manufacturer's blocking and prep against the device template before ordering.
17) What finishes does the BEST Precision 5208 come in?
Two: 689 aluminum painted and 695 dark bronze painted. Both are available across every dogging, trim and less-bottom-rod combination, so you can match 689 aluminum to existing aluminum storefront hardware or 695 to bronze openings without giving up any option.
18) Dexter ED1000 versus ED1500 versus the BEST Precision 5208 for a commercial surface vertical rod opening?
The Dexter ED1000 and ED1500 Series are both Grade 1 surface vertical rod devices, with the ED1500 listed as not fire rated. The BEST Precision 5208 is also Grade 1 and not fire rated, and adds a documented 1-3/4 to 2-1/4 inch door thickness range, field reversibility for all functions and trims with standard RHRB packaging, and a choice of hex key dogging, cylinder dogging or less dogging. Choose on dogging method and door thickness, since all three are Grade 1 surface vertical rod devices.
