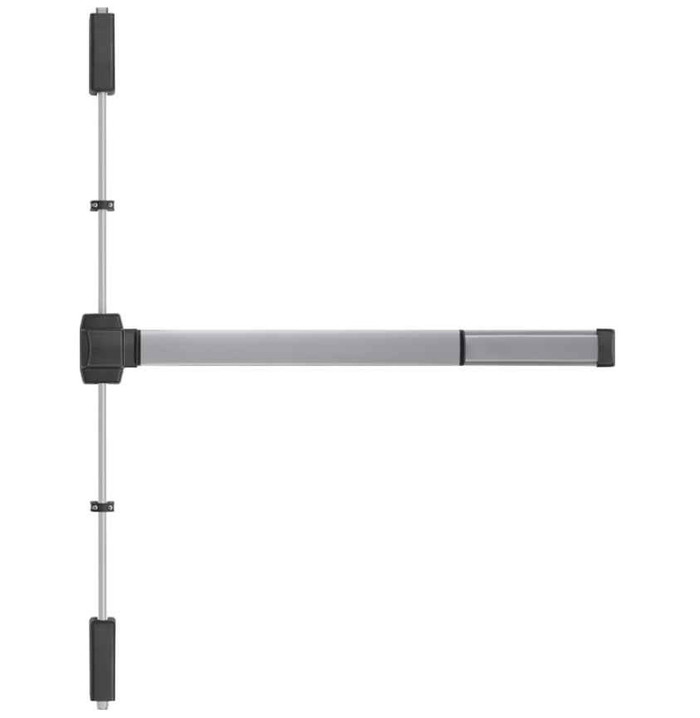

BEST Precision 5201 Series 36" Surface Vertical Rod Exit Device - Reversible

BEST Precision 5201 Series 36" Surface Vertical Rod Exit Device - Reversible

Professional Grade 1 Exit Device Solution

The BEST Precision 5201 Series Surface Vertical Rod Exit Device delivers Grade 1 performance for commercial door applications up to 36" wide. Designed for doors 1-3/4" to 2-1/4" thick and up to 10'-0" high, this UL Listed panic and fire exit hardware features reversible operation for flexible installation. The device includes heavy wrought steel construction with powder coated finish and stainless steel deadlocking latchbolt with 3/4" throw for reliable security.

Professional Features & Benefits

• Door Compatibility: Accommodates doors 1-3/4" to 2-1/4" thick, up to 36" wide by 10'-0" high for versatile commercial applications.
• Heavy-Duty Construction: Zinc dichromate plated heavy wrought steel active case and powder coated heavy wrought steel touchbar assembly provide exceptional durability.
• Reversible Design: Field reversible for all functions and trims with standard RHRB packaging for installation flexibility.
• Grade 1 Performance: BHMA certified for ANSI 156.3, Grade 1 specifications ensuring commercial-grade reliability.
• UL Listed Compliance: UL Listed for both panic and fire exit hardware applications meeting code requirements.
• Precision Hardware: Stainless steel deadlocking top latchbolt with 3/4" throw and steel bottom bolt with 5/8" throw and adjustment range.
• Professional Strikes: Investment cast stainless steel top strike (S300) and steel bottom strike (S460) with black powder coat finish.
• Standard Dogging: 1/4 turn hex key dogging standard for operational convenience (not available for fire exit hardware).

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: No
• Product Category: Exit Devices and Trim
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Surface Vertical Rod
• Series: 5200 Series
• Subcategory: Surface Vertical Rod

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2-1/4"), width (up to 36"), and height (up to 10'-0") compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, ensuring proper alignment with ANSI A115.2 or ANSI A115.18 cylinder lock preparation.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for vertical rod exit device installation.
4. Install active case, vertical rods, and strike hardware securing all components to door and frame per manufacturer torque specifications.
5. Adjust touchbar height (standard 40-5/16" from floor) and configure reversible operation for proper handing and smooth operation throughout the full range of motion.
6. Test device operation including latchbolt engagement, vertical rod action, and dogging function to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST Precision 5200 Series exit devices deliver professional-grade reliability with heavy wrought steel construction and BHMA Grade 1 certification for demanding commercial applications. UL Listed for panic and fire exit hardware with reversible design for installation flexibility. Engineered for dependable performance where code compliance and operational reliability are essential.
