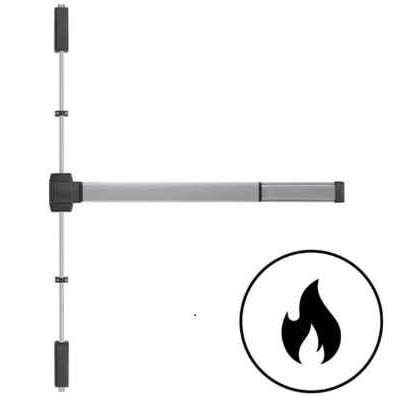

BEST Precision 5201 Series Fire Rated 48" Surface Vertical Rod Exit Device

BEST Precision 5201 Series Fire Rated 48" Surface Vertical Rod Exit Device

Professional Fire-Rated Exit Hardware Solution

The BEST Precision 5201 Series Surface Vertical Rod Exit Device delivers Grade 1 commercial performance for fire-rated applications up to 48" wide doors. This UL Listed fire exit hardware accommodates door thicknesses from 1-3/4" to 2-1/4" with reversible operation for flexible installation. Heavy wrought steel construction with powder coated finish ensures long-term durability in demanding commercial environments.

Professional Features & Benefits

• Fire-Rated Performance: UL Listed for panic and fire exit hardware applications with ANSI/BHMA Grade 1 certification for maximum reliability.
• Wide Door Compatibility: Designed for doors up to 48" wide and 10'-0" high, accommodating 1-3/4" to 2-1/4" thick door construction.
• Heavy-Duty Construction: Zinc dichromate plated heavy wrought steel active case and powder coated steel touchbar assembly for exceptional durability.
• Reversible Design: Field-reversible for all functions and trims with standard RHRB packaging for installation flexibility.
• Precision Hardware: Stainless steel deadlocking top latchbolt with 3/4" throw and independent action bottom bolt with 5/8" throw.
• Professional Strikes: Investment cast stainless steel top strike (S300) and flush-mounted steel bottom strike (S460) with black powder coat finish.
• Standard Touchbar Height: 40-5/16" from floor standard with custom height options available for specific applications.
• Cylinder Compatibility: Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation for universal trim compatibility.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: Yes
• Product Category: Exit Devices and Trim
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Surface Vertical Rod
• Series: 5200 Series
• Subcategory: Surface Vertical Rod

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2-1/4"), width (up to 48"), and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for ANSI A115.2 or A115.18 cylinder preparation.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for vertical rod mounting points.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring proper alignment of top and bottom strikes.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, setting touchbar height at 40-5/16" from floor or specified custom height.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST Precision 5200 Series exit devices deliver professional-grade reliability with heavy wrought steel construction and ANSI/BHMA Grade 1 certification. UL Listed for fire exit hardware applications with investment cast stainless steel components for long-term performance. Engineered for demanding commercial applications where dependable fire-rated exit hardware performance is essential.
