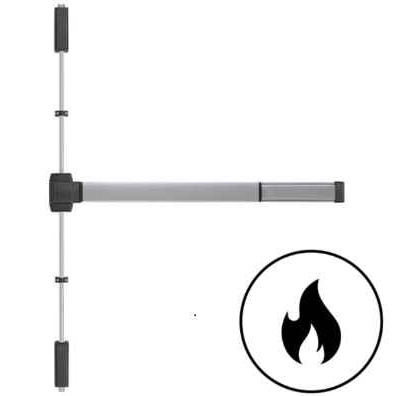

BEST Precision 5202 Series Fire Rated Surface Vertical Rod Exit Device with 48" Dummy Trim

BEST Precision 5202 Series Fire Rated Surface Vertical Rod Exit Device with 48" Dummy Trim

Professional Fire-Rated Exit Device Solution

The BEST Precision 5202 Series delivers professional-grade fire-rated exit device performance for commercial applications requiring reliable emergency egress. This surface vertical rod configuration accommodates doors from 1-3/4" to 2-1/4" thick and up to 4'-0" wide by 10'-0" high openings, with UL Listed Panic and Fire Exit Hardware certification and ANSI/BHMA Grade 1 compliance for demanding commercial installations.

Professional Features & Benefits

• Fire-Rated Performance: UL Listed for both Panic and Fire Exit Hardware applications ensuring code compliance and life safety protection.
• Versatile Door Compatibility: Accommodates doors from 1-3/4" to 2-1/4" thick and up to 4'-0" wide by 10'-0" high openings for flexible installation options.
• Grade 1 Durability: ANSI/BHMA certified for ANSI 156.3 Grade 1 performance providing maximum durability for high-traffic commercial applications.
• Heavy-Duty Construction: Zinc dichromate plated heavy wrought steel active case and powder coated heavy wrought steel touchbar assembly for exceptional durability.
• Reversible Design: Field-reversible for all functions and trims allowing adaptation to various door configurations and handing requirements.
• Precision Hardware: Stainless steel deadlocking top latchbolt with 3/4" throw and steel bottom bolt with 5/8" throw for secure latching performance.
• Professional Installation: Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation with active case through bolts for streamlined installation.
• Standard Touchbar Height: 40-5/16" from floor standard with custom height options available for specific application requirements.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: Yes
• Keyed: No
• Keyed Function: Non-Keyed
• Lock Function: Dummy
• Product Category: Exit Devices and Trim
• Product Function: Dummy
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Surface Vertical Rod
• Series: 5200 Series
• Subcategory: Surface Vertical Rod

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2-1/4"), width (up to 4'-0"), and height (up to 10'-0") compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations for ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation accurately on door and frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for the active case and vertical rod mounting points.
4. Install the active case assembly and secure with through bolts, then mount the top and bottom strikes (S300 investment cast stainless steel top strike and S460 steel bottom strike).
5. Adjust touchbar height to standard 40-5/16" from floor or specified custom height, and configure reversible operation for proper door handing.
6. Test device operation including touchbar activation, latchbolt retraction (3/4" throw), and bottom bolt operation (5/8" throw) to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and fire-rated assembly requirements.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST Precision 5202 Series exit devices deliver professional-grade reliability with zinc dichromate plated heavy wrought steel construction and powder coated components rated for ANSI/BHMA Grade 1 performance. UL Listed for both Panic and Fire Exit Hardware applications with reversible field configuration capability. Engineered for demanding commercial applications where dependable emergency egress performance and fire safety compliance are essential.
