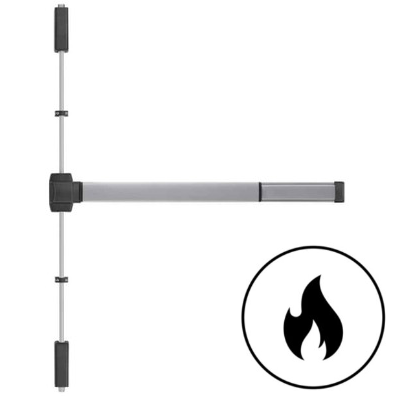

BEST Precision 5202 Series Fire Rated Surface Vertical Rod Exit Device with Dummy Trim - 36" Door Width

BEST Precision 5202 Series Fire Rated Surface Vertical Rod Exit Device with Dummy Trim - 36" Door Width

Professional Fire-Rated Exit Device Solution

The BEST Precision 5202 Series delivers UL Listed fire-rated exit device performance for commercial applications requiring reliable emergency egress. This surface vertical rod configuration accommodates doors from 1-3/4" to 2-1/4" thick and up to 4'-0" wide by 10'-0" high openings, with ANSI/BHMA Grade 1 certification for heavy-duty commercial use. The reversible design provides installation flexibility while maintaining ANSI A115.2 and A115.18 cylinder lock preparation compatibility.

Professional Features & Benefits

• Door Compatibility: Accommodates 1-3/4" to 2-1/4" thick doors up to 4'-0" wide by 10'-0" high for versatile commercial applications.
• Fire-Rated Performance: UL Listed for both Panic and Fire Exit Hardware applications ensuring code compliance and safety.
• Heavy-Duty Construction: Zinc dichromate plated heavy wrought steel active case and powder coated steel touchbar assembly for exceptional durability.
• Grade 1 Certification: ANSI/BHMA certified for ANSI 156.3 Grade 1 performance in demanding commercial environments.
• Universal Reversibility: Field-reversible for all functions and trims with standard RHRB packaging for installation flexibility.
• Precision Hardware Components: Investment cast stainless steel top strike (S300) and steel bottom strike (S460) with 3/4" throw deadlocking latchbolt.
• ANSI Preparation Compatibility: Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation without additional machining.
• Adjustable Bottom Bolt: 5/8" throw with adjustment range to accommodate 3/4" door undercut for proper fit.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: Yes
• Keyed: No
• Keyed Function: Non-Keyed
• Lock Function: Dummy
• Product Category: Exit Devices and Trim
• Product Function: Dummy
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Surface Vertical Rod
• Series: 5200 Series
• Subcategory: Surface Vertical Rod

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2-1/4"), width (up to 4'-0"), and height (up to 10'-0") compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for ANSI A115.2 or A115.18 preparation.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for vertical rod configuration.
4. Install active case assembly and secure touchbar sub-assembly to door per manufacturer torque specifications with proper through-bolt installation.
5. Mount top strike (S300) and bottom strike (S460) ensuring proper alignment with vertical rod travel and 3/4" latchbolt throw.
6. Adjust bottom bolt for 5/8" throw and proper clearance with 3/4" door undercut, then test full range of vertical rod operation and latchbolt engagement.
7. Verify touchbar height at 40-5/16" from floor (or specified height) and test complete exit device operation. Refer to manufacturer documentation for complete installation details and fire-rated assembly requirements.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST Precision 5200 Series exit devices deliver professional-grade reliability with heavy wrought steel construction and investment cast stainless steel components rated for ANSI/BHMA Grade 1 performance. UL Listed for both panic and fire exit hardware applications with universal reversibility for demanding commercial installations. Engineered for demanding commercial applications where dependable emergency egress performance is essential.
