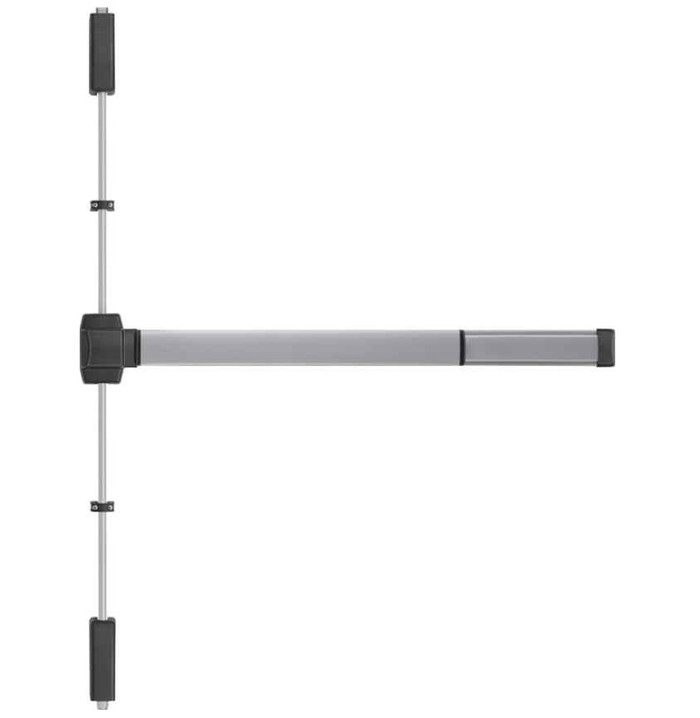

BEST Precision 5208 Series 36" Surface Vertical Rod Exit Device with Key Controls Lever

BEST Precision 5208 Series 36" Surface Vertical Rod Exit Device with Key Controls Lever

Professional Grade Exit Device for Commercial Applications

The BEST Precision 5208 Series Surface Vertical Rod Exit Device delivers Grade 1 performance for commercial door applications up to 36" wide. This reversible exit device accommodates door thicknesses from 1-3/4" to 2-1/4" and openings up to 4'-0" wide by 10'-0" high. UL Listed for both panic and fire exit hardware applications with ANSI/BHMA Grade 1 certification for demanding commercial environments.

Professional Features & Benefits

• Door Compatibility: Designed for 1-3/4" to 2-1/4" thick doors with openings up to 4'-0" wide by 10'-0" high for versatile commercial applications.
• Grade 1 Durability: ANSI/BHMA certified Grade 1 performance ensures reliable operation in high-traffic commercial environments.
• Heavy-Duty Construction: Zinc dichromate plated heavy wrought steel active case and powder coated heavy wrought steel touchbar assembly provide exceptional durability.
• Reversible Design: Field reversible for all functions and trims with standard RHRB packaging for installation flexibility.
• Precision Latch System: Stainless steel deadlocking top latchbolt with 3/4" throw and steel bottom bolt with 5/8" throw and adjustment range for 3/4" door undercut.
• UL Fire Rating: UL Listed for both panic and fire exit hardware applications ensuring code compliance for critical egress paths.
• Professional Dogging: Standard 1/4 turn hex key dogging for authorized personnel control (not available for fire exit hardware).
• Quality Strike Hardware: Investment cast stainless steel top strike (S300) and steel bottom strike (S460) with black powder coat finish for long-term reliability.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: No
• Handle Type: Lever
• PDF:Precision 5000 Exit Devices and Trims: https://zensupply.com/content/pdf/best/PH-0197_PRECISION-_5000_FAQ-01-22.pdf
• PDF:Precision 5000 Series: https://zensupply.com/content/pdf/best/PH-0296_PRECISION-5000_Sell_Sheet-01-22.pdf
• Product Category: Exit Devices and Trim
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Surface Vertical Rod
• Series: 5200 Series
• Subcategory: Surface Vertical Rod

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2-1/4"), width compatibility, and handing for this reversible device.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, ensuring proper alignment with ANSI A115.2 or ANSI A115.18 cylinder lock preparation.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions, noting that active case through bolts work with ANSI A115.18 preparation without additional machining.
4. Install all mounting hardware including vertical rods, strikes, and active case assembly, securing the device to door and frame per manufacturer torque specifications.
5. Adjust touchbar height (standard 40-5/16" from floor) and operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation including latchbolt throw (3/4" top, 5/8" bottom), dogging function if applicable, and verify proper function with connected trim hardware. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST Precision 5200 Series exit devices deliver professional-grade reliability with heavy wrought steel construction and stainless steel latch components rated for ANSI/BHMA Grade 1 performance. UL Listed for both panic and fire exit hardware applications with reversible design for maximum installation flexibility. Engineered for demanding commercial applications where dependable egress performance and code compliance are essential.
