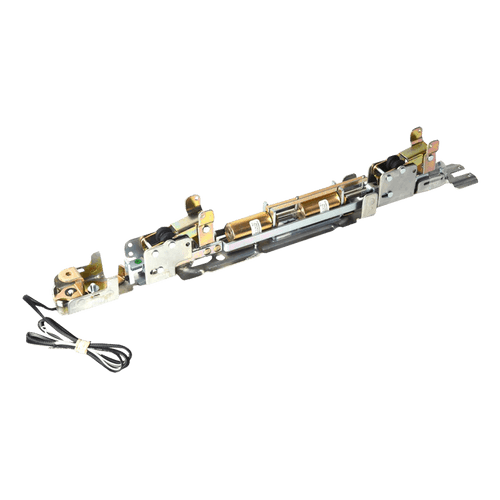

PRECISION Precision Hardware Inc (PHI) ELRKF Wide Stile - ELR Conversion Kit PHI-ELRKF-3

BEST ELRKF Wide Stile Electric Latch Retraction Conversion Kit for 2000 Series Exit Devices

(No reviews yet) Write a Review

Model: ELRKF-3

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,313.00
$1,103.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST ELRKF Wide Stile Electric Latch Retraction Conversion Kit for 2000 Series Exit Devices

Professional Retrofit Solution for Electric Latch Retraction

The BEST ELRKF Wide Stile Electric Latch Retraction Conversion Kit enables retrofit of standard Precision 2000 Series exit devices to electric latch retraction functionality. This conversion kit requires an ELR150 Series Power Supply and operates at 3.6 VDC with 0.8 Amp continuous current and 4.75 Amp pulse current for 2 seconds maximum. Designed specifically for wide stile applications, this kit provides professional-grade electronic access control integration.

Professional Features & Benefits

  • Series Compatibility: Exclusively designed for Precision 2000 Series exit devices for reliable retrofit integration.
  • Wide Stile Configuration: Engineered for wide stile door applications with proper clearance and mounting specifications.
  • Electrical Specifications: 3.6 VDC operation with 0.8 Amp continuous current and 4.75 Amp pulse capability for reliable solenoid operation.
  • Power Supply Integration: Requires ELR150 Series Power Supply for complete system functionality and proper voltage regulation.
  • Flexible Power Options: Compatible with 4-wire continuous circuit hinge power supply (furnished by others) for versatile installation configurations.
  • Professional Conversion Solution: Transforms standard mechanical exit devices into electric latch retraction systems without device replacement.

Technical Specifications

Current Pulse (2 seconds max.) ....................... 4.75 Amp.
Continuous ......................................... 3.6 VDC / 0.8 Amp

Installation & Operation

  1. Verify electrical requirements match ELR150 Series Power Supply specifications. Confirm 3.6 VDC and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the conversion kit components in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the 4.75 Amp pulse and 0.8 Amp continuous current requirements.
  5. Configure operational settings per application requirements and integrate with ELR150 Series Power Supply.
  6. Restore power and test all functions including normal operation, electric latch retraction, and integration with connected access control systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Access Control
  • Healthcare Facility Electronic Entry
  • Retail Loss Prevention Systems
  • Industrial Facility Monitoring
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties

Why Choose BEST Quality?

BEST conversion kits deliver professional-grade reliability with precision-engineered solenoid specifications rated for 4.75 Amp pulse operation and 3.6 VDC continuous service. Designed specifically for Precision 2000 Series compatibility, these kits provide dependable electric latch retraction functionality for demanding commercial access control applications where reliable electronic integration is essential.

Manufacturer Resources

Precision 2000 Series Catalog

Product Specs

Series:
ELR Series
Subcategory:
Conversion Kit
Product Group:
Electronic Access Controls
Product Subgroup:
Conversion Kit
Commercial/Residential:
Commercial
Electronic:
Yes
Product Type:
Conversion Kit
Stile Type:
Wide Stile
Product Category:
Electronic Access Controls
Department:
Door Hardware

BEST ELRKF-3 – Frequently Asked Questions

1) Can I add electric latch retraction to an existing Precision 2000 Series exit device without replacing the device?
That is exactly what the BEST ELRKF conversion kit does. It retrofits a standard Precision 2000 Series exit device to electric latch retraction, so the device stays on the door and you convert it in place. It is built for the 2000 Series only, so a 2000 Series device is the prerequisite before you order.
2) Will the BEST ELRKF electric latch retraction kit work on a narrow stile aluminum storefront door?
No. The ELRKF is the wide stile version of the kit, engineered for wide stile door applications and their mounting clearances. A narrow stile aluminum door needs the narrow stile equivalent, not this one. Check the stile configuration of the 2000 Series device already on the door before ordering.
3) What power supply do I need for the BEST ELRKF electric latch retraction kit?
An ELR150 Series Power Supply. The kit does not include it and will not operate correctly without it, because the ELR150 provides the regulated 3.6 VDC the solenoid needs. Budget the power supply as a separate line on the order.
4) What voltage and current does a BEST ELRKF electric latch retraction conversion draw?
3.6 VDC continuous at 0.8 Amp, with an inrush pulse of 4.75 Amp for a maximum of 2 seconds when the latch retracts. Size the power supply and the wire gauge for that 4.75 Amp pulse, not the 0.8 Amp holding draw. That pulse figure is per device, so a pair of doors doubles it.
5) Which size ELRKF conversion kit do I order for my door?
The kit comes in a 3 FT and a 4 FT size, matched to the width of the 2000 Series exit device already mounted on the door. Measure the existing device, not the door leaf, and order the size that matches it.
6) How does power get from the frame to the door for an electric latch retraction exit device?
The ELRKF works with a 4-wire continuous circuit hinge or power transfer, which is furnished by others and is not part of the kit. That is the piece installers most often forget on an ELR conversion: the kit and the ELR150 power supply handle the device and the voltage, but the transfer from frame to door leaf is a separate item you have to buy and prep the frame for.
7) Can I tie a Precision 2000 exit device with the ELRKF kit into a card reader or access control system?
Yes. Electric latch retraction is what lets an access control system pull the latch back remotely, so a credential read, a push button, or a scheduled unlock retracts the latch and the door pushes open from the outside without turning trim. It is a commercial-duty electronic device and it is used this way in schools, hospitals, retail, government buildings, and multi-tenant residential.
8) I want latch retraction on a pair of doors. What do I order?
One ELRKF kit per exit device. Two leaves with a 2000 Series device on each means two kits, each sized to its own device at 3 FT or 4 FT, plus a power transfer to each leaf. The ELR150 Series Power Supply has to carry both, so add the 4.75 Amp pulse loads together when you size it.
9) Is the ELRKF conversion kit something a maintenance tech can install, or does it need an electrician?
The mechanical side is a device retrofit, but the job involves low-voltage wiring: routing conductors sized for a 4.75 Amp pulse, landing them on an ELR150 power supply, and following the manufacturer wiring diagrams. Power comes off before the work starts and all applicable electrical codes apply. Most facilities put this with a locksmith or integrator who does access control, not general maintenance.
