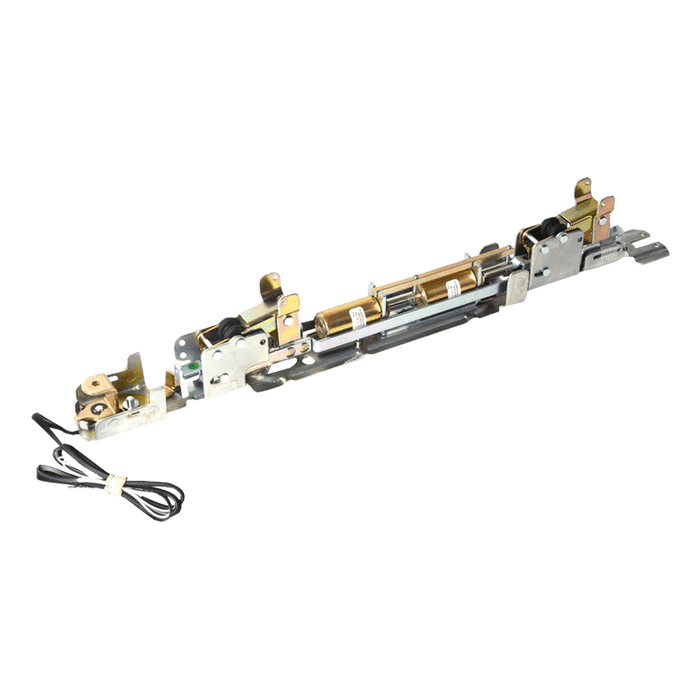

PRECISION Precision Hardware Inc (PHI) ELRK Wide Stile - ELR Conversion Kit PHI-ELRK-3

BEST PHI ELRK-3 Electric Latch Retraction Conversion Kit for Wide Stile Exit Devices

(No reviews yet) Write a Review

Model: ELRK-3

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,385.00
$781.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEST PHI ELRK-3 Electric Latch Retraction Conversion Kit for Wide Stile Exit Devices

Professional Retrofit Solution for Electric Latch Retraction

The BEST PHI ELRK-3 Electric Latch Retraction Conversion Kit enables retrofit of standard Precision 2000 Series exit devices to electric latch retraction functionality. This wide stile conversion kit operates at 3.6 VDC with 0.8 amp continuous draw and 4.75 amp pulse current for 2 seconds maximum. The kit requires a PHI ELR150 Series Power Supply for proper operation and is specifically designed for wide stile door configurations.

Professional Features & Benefits

  • Series Compatibility: Designed exclusively for Precision 2000 Series devices for reliable retrofit integration.
  • Electrical Specifications: 3.6 VDC operation with 0.8 amp continuous current and 4.75 amp pulse capability for dependable solenoid operation.
  • Wide Stile Design: Engineered specifically for wide stile exit device configurations with proper clearance and mounting.
  • Power Supply Integration: Requires PHI ELR150 Series Power Supply for complete system functionality and proper voltage regulation.
  • Flexible Power Options: Power may be supplied through a 4-wire continuous circuit hinge for clean installation without visible wiring.
  • Professional Retrofit Solution: Converts standard mechanical devices to electric latch retraction without complete device replacement.

Technical Specifications

Current Pulse (2 seconds max.) ....................... 4.75 Amp.
Continuous ......................................... 3.6 VDC / 0.8 Amp

Installation & Operation

This conversion kit is designed for use with compatible Precision 2000 Series exit devices. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Building Access Control Systems
  • Educational Facility Security Upgrades
  • Healthcare Institution Access Management
  • Retail Security System Integration
  • Industrial Facility Controlled Access
  • Government Building Security Systems
  • Multi-Tenant Commercial Properties

Why Choose BEST Quality?

BEST electric latch retraction conversion kits deliver professional-grade reliability with precision solenoid specifications rated for 4.75 amp pulse operation and continuous 0.8 amp draw. Engineered specifically for Precision 2000 Series compatibility, these kits provide dependable retrofit solutions for demanding commercial access control applications where reliable electric latch retraction is essential.

Manufacturer Resources

Precision 2000 Series Catalog

Product Specs

Series:
ELR Series
Subcategory:
Conversion Kit
Product Group:
Electronic Access Controls
Product Subgroup:
Conversion Kit
Commercial/Residential:
Commercial
Electronic:
Yes
Product Type:
Conversion Kit
Stile Type:
Wide Stile
Product Category:
Electronic Access Controls
Department:
Door Hardware

BEST ELRK-3 – Frequently Asked Questions

1) Will the BEST PHI ELRK-3 kit work on my existing exit device, or does it only fit Precision 2000 Series?
The ELRK-3 conversion kit is built for Precision 2000 Series exit devices only. It converts a standard mechanical 2000 Series device to electric latch retraction in place, so you keep the existing device and door prep instead of replacing the whole thing. If the device on your door is another series or another brand, this kit is not the part.
2) What power supply do I need to order with an electric latch retraction conversion kit for a Precision 2000 device?
A PHI ELR150 Series Power Supply is required with the ELRK-3 kit. It isn't optional; the kit depends on it for correct voltage regulation, and the solenoid draws 4.75 amps on a pulse of up to 2 seconds before settling to 3.6 VDC at 0.8 amp continuous. Size the supply run for that inrush, not the continuous figure.
3) Does the ELRK-3 fit narrow stile aluminum storefront doors?
No. The ELRK-3 is the wide stile version of the ELR conversion kit, built around wide stile exit device clearance and mounting. On a narrow stile aluminum door you need the narrow stile ELR kit instead, not this one.
4) Do I have to replace the whole exit device to add electric latch retraction, or is there a retrofit?
On a Precision 2000 Series device you retrofit. The ELRK conversion kit adds electric latch retraction to a device already hung on the door, so you keep the existing chassis, trim and door prep and avoid re-prepping the opening. Match the kit to the device length (3 ft or 4 ft) and the stile type; the ELRK-3 is the wide stile kit.
5) What is the difference between the 3 foot and 4 foot ELR conversion kits?
The two sizes match the length of the exit device you are converting: a 3 ft kit for a 3 foot device and a 4 ft kit for a 4 foot device. Measure the device already on the door (or check the device size on the order it came from) and order the kit to match, since the kit's components run the length of the pushbar chassis.
6) How do I get power to an electric latch retraction exit device without running visible wire on the door?
Power to the ELRK-3 can be run through a 4-wire continuous (electrified) hinge, which carries the circuit from the frame into the door leaf with no surface wiring. That is the usual clean install on a retrofit; you will need the electrified hinge and the ELR150 power supply as separate line items.
7) Can I tie a Precision 2000 exit device into card access with this kit?
That is what electric latch retraction is for. The ELRK-3 pulls the latch back on a signal from your access control system, so a reader, intercom, or push button unlocks the door for free pull while the mechanical egress function of the device stays intact. It is a commercial-duty electronic device, and it is commonly used in schools, hospitals, retail, government and multi-tenant buildings where doors are scheduled to unlatch during business hours.
8) Is 3.6 volts enough, or does the ELR kit need a 24V supply?
The solenoid in the ELRK-3 runs on 3.6 VDC at 0.8 amp continuous, which is why the ELR150 Series supply is specified rather than a generic 12V or 24V access control power supply. The 4.75 amp pulse for up to 2 seconds during retraction is the number that drives conductor size and supply capacity, so plan the wire run around the inrush.
