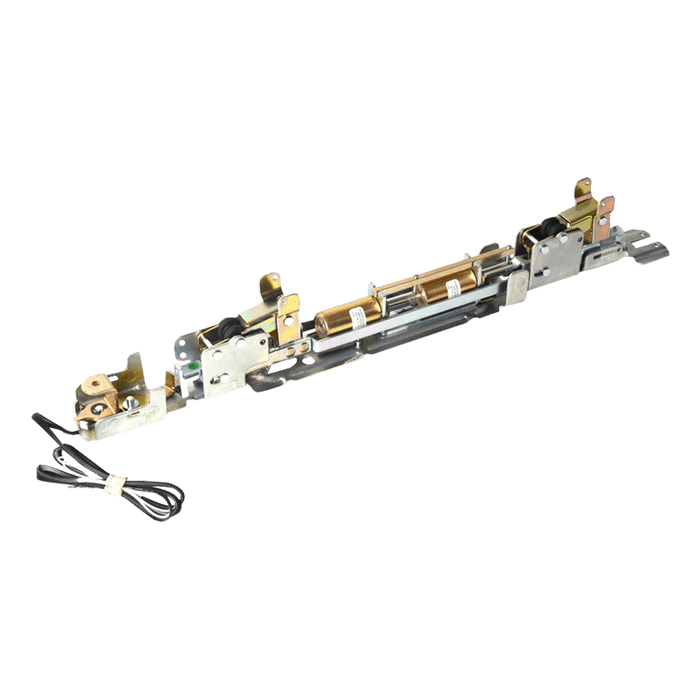

BEST NELRKF Electric Latch Retraction Conversion Kit for Narrow Stile Precision 2000 Series Exit Devices

BEST NELRKF Electric Latch Retraction Conversion Kit for Narrow Stile Precision 2000 Series Exit Devices

Professional Retrofit Solution for Electric Latch Retraction

The BEST NELRKF Electric Latch Retraction (ELR) Conversion Kit enables retrofit of standard Precision 2000 Series narrow stile exit devices to electric latch retraction operation. This conversion kit operates at 3.6 VDC with 0.8 Amp continuous current and requires the PHI ELR150 Power Supply for proper operation. Designed specifically for narrow stile applications, this kit provides professional-grade electronic access control functionality.

Professional Features & Benefits

• Series Compatibility: Exclusively designed for Precision 2000 Series devices ensuring proper fit and reliable operation.
• Narrow Stile Design: Engineered specifically for narrow stile exit device configurations with optimized component sizing.
• Low Power Operation: 3.6 VDC operation with 0.8 Amp continuous current for efficient power consumption and system compatibility.
• High Pulse Capability: 4.75 Amp pulse current capacity for 2 seconds maximum provides reliable solenoid activation.
• Flexible Power Options: Power may be supplied through a 4-wire continuous circuit hinge for clean installation without visible wiring.
• Professional Retrofit Solution: Converts standard mechanical devices to electric latch retraction without complete device replacement.
• Required Power Supply Integration: Works with PHI ELR150 Power Supply for complete system functionality and proper voltage regulation.

Technical Specifications

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 3.6 VDC operation and ensure PHI ELR150 Power Supply is available before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the conversion kit components in the exit device ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the 4.75 Amp pulse and 0.8 Amp continuous current requirements.
5. Configure operational settings and integrate with PHI ELR150 Power Supply per application requirements.
6. Restore power and test all functions including normal operation, electric latch retraction, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Educational Institution Access Control
• Healthcare Facility Electronic Access
• Retail Security Integration
• Industrial Facility Monitoring
• Government Building Access Control
• Multi-Tenant Commercial Properties

Why Choose BEST Quality?

BEST conversion kits deliver professional-grade reliability with precision-engineered components designed for demanding commercial applications. The NELRKF kit provides efficient 3.6 VDC operation with robust 4.75 Amp pulse capability for reliable solenoid activation. Engineered specifically for Precision 2000 Series compatibility where dependable electronic access control performance is essential.
