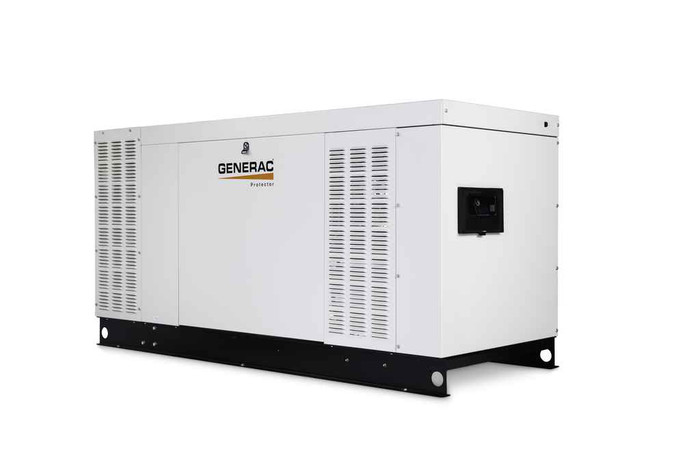

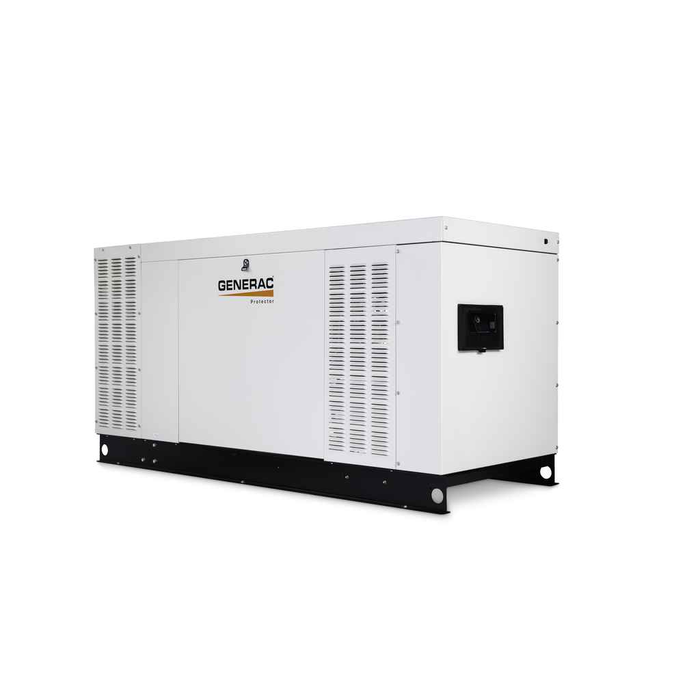

GENERAC RG06045GNAX Protector 60kW Automatic Standby Generator 120/208 3Ø

No. The RG06045GNAX ships as the generator only, with no transfer switch included. You have to specify and order a separate ATS sized for the service, and it needs to match the 120/208V three-phase output and the load you intend to carry. Budget that into the job before you price the install.

It is a 120/208 volt three-phase unit rated 60kW, or 60,000 watts. That is a commercial wye configuration, so it is the wrong machine for a single-phase 120/240 residential or light-commercial service. If your panel is single phase, you want a 120/240 single-phase Protector instead.

The enclosure measures 97 inches long, 38 inches wide, and 49 inches high, so size the concrete pad around that footprint. Generac states this liquid-cooled unit can be set as close as 18 inches from a structure, which is what makes it workable on tight lot lines. Confirm local code separation for fuel and exhaust on your site.

Both. The RG06045GNAX is a dual-fuel-capable unit configured for either liquid propane or natural gas, using Generac's dual-valve ultra-low-pressure fuel delivery system on a 4.5L Generac engine. Your gas contractor sizes the supply line and regulator for whichever fuel you commit to.

Rated at 200 A. Size the main line circuit breaker, transfer switch, and conductors for that current at 120/208V three phase. It also sets the minimum ampacity your ATS needs to handle.

1,912 pounds assembled. That is a crane or a heavy forklift and an engineered pad, not something a two-man crew sets by hand. Plan rigging and pad reinforcement accordingly when you schedule the set.

Liquid cooled, with a 4.5L Generac engine. At 60kW that is the right class for continuous commercial standby duty and heavy motor starting loads such as rooftop AC or process equipment. Air-cooled units top out well below this and are not built for sustained three-phase commercial load.

Yes. True Power technology holds total harmonic distortion under 5 percent, which is utility-grade quality for servers, medical equipment, elevators controls, and VFD-driven gear. Automatic voltage regulation is also standard on this unit.

It is UL Listed, ETL Listed, and CSA Certified. For a facility submittal, that covers the usual AHJ questions on a permanently installed standby unit. The generator is engineered and built in the USA.

Yes, it is an automatic standby unit with automatic start and an automatic override start type. Paired with a transfer switch, it senses the outage, starts, and takes the load without anyone on site. The 60kW rating is both the rated and the surge wattage, so plan the load schedule against 60,000 watts rather than expecting headroom above it.

The Evolution controller with LCD sits on the outside of the enclosure, so maintenance intervals and status can be read without opening it up. Mobile Link remote monitoring is standard. Protection and tracking include low oil shutdown, overload protection, an hour meter, and a programmable exercise cycle. Quiet-Test runs the weekly, bi-weekly, or monthly exercise at reduced RPM for five or twelve minutes.

The enclosure is all aluminum with a RhinoCoat powder-coated finish in bisque, chosen for corrosion resistance in outdoor weather. Aluminum will not rust the way a steel enclosure does, which matters on coastal, rooftop, and marine-adjacent sites.
