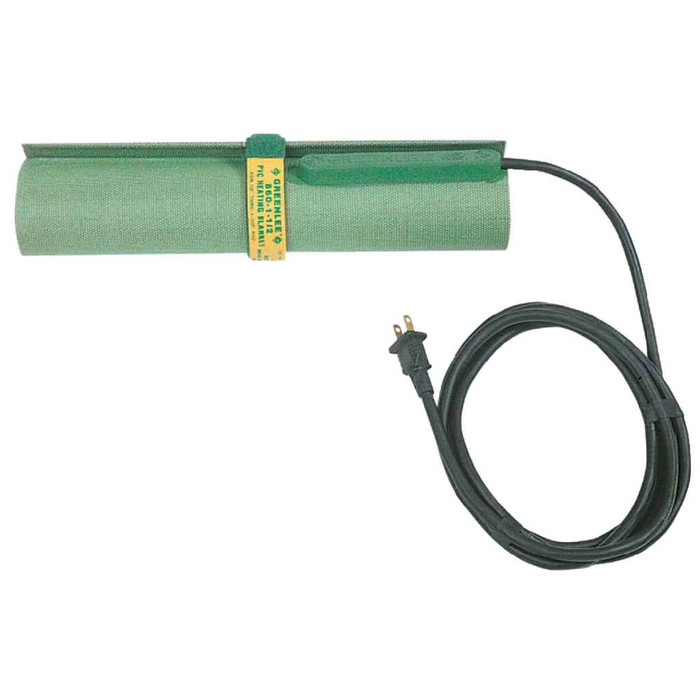

Greenlee 50314882 PVC Heating Blanket for 2"-3"

Greenlee 50314882 PVC Heating Blanket for 2"-3"

(No reviews yet) Write a Review

Model: 50314882
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,326.09
$1,276.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
PVC Heating Blanket for 2"-3"

  • Features

    • Make bends, offsets or saddles in PVC fast and easy Easy to use: wrap blanket around PVC, secure with hook and loop strap Built-In stiffeners help keep the blanket tight to the PVC surface Remove blanket and form bend by hand Controlled, even heating for uniform bending Heavy-Duty cord and thermostat for long life Temperature over 300 DEG F(149 DEG C)

Manufacturer Resources

Product Specs

Bend Radius:
16"
Capacity:
3 1/2" to 4" PVC
Construction:
PVC
Country Of Origin:
US
Power Source:
120 VAC
Product Height:
3.800 IN
Product Length:
40.500 IN
Product Material:
Silicon Rubber compound
Product Size:
38.000'' X 16-1/4'' (965.200 MM X 412.800 MM)
Product Type:
PVC Bending Blanket
Product Wattage:
1300 WATT
Product Width:
6.250 IN
Voltage Rating:
120V
Volume:
961.875 CI
Department:
Electrical
Product Subgroup:
Conduit Benders
Product Group:
Electrical Installation Tools
Application:
PVC Bending

Greenlee 50314882 – Frequently Asked Questions

1) What bend radius can I get with the Greenlee 50314882 heating blanket?
The blanket is set up for a 16 inch bend radius. That is what determines how tight a sweep you can form by hand once the PVC is heated, so check it against the radius called out on your drawing before you commit. If the spec needs a tighter or longer radius than that, a heated blanket of this size is not the tool for the job.
2) How long a section of PVC does the Greenlee heating blanket cover?
The heated area measures 38 by 16-1/4 inches (965.2 mm x 412.8 mm), so it wraps a run of pipe roughly three feet long. Overall the unit is listed at 40.500 inches long, 6.250 inches wide and 3.800 inches high rolled up for transport.
3) Is the Greenlee 50314882 a bender or just a heater?
It is a heater only. The 50314882 softens the PVC; you form the bend by hand or against a template once the blanket comes off. There is no shoe, no ram and no mechanical bending action, so if your crew needs repeatable angles they should still have a bending form or marked layout to work against.
4) Can I use the Greenlee heating blanket on metal conduit or other pipe?
No. It is built for PVC bending only. EMT, rigid and IMC are bent cold with a mechanical bender, and heat will not help you there. Other thermoplastics are not what this blanket is rated for either.
5) What is the Greenlee PVC bending blanket made of, and will it mark the conduit?
The heating element surface is a silicon rubber compound, which is what lets it hold an even temperature against the pipe and flex around the diameter without hard spots. Combined with the built-in stiffeners keeping full contact, the heat spreads rather than scorching one line down the conduit. It is made in the US.
6) What part number do I order for the Greenlee PVC heating blanket?
Order Greenlee model 50314882. That is the manufacturer part number as well, so it is the only number you need to give a supplier or put on a purchase order.
