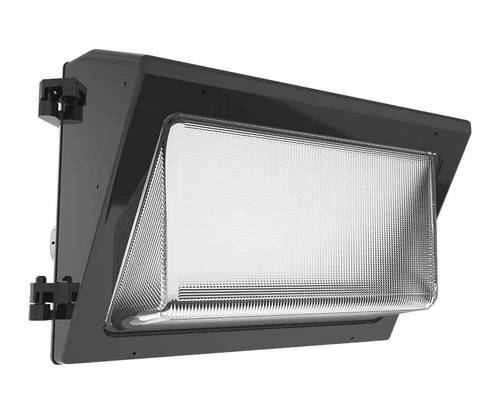

RAB 29W LED Wall Pack with Field-Adjustable CCT 3000K-5000K Bronze Finish Professional Lighting System

RAB 29W LED Wall Pack with Field-Adjustable CCT 3000K-5000K Bronze Finish Professional Lighting System

(No reviews yet) Write a Review

Model: WP1FA29

In Stock (leaves warehouse same day if ordered before 3pm ET)

$147.71
$137.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB 29W LED Wall Pack with Field-Adjustable CCT 3000K-5000K Bronze Finish Professional Lighting System

Professional field-adjustable LED lighting with versatile color temperature control

The RAB 29W LED Wall Pack delivers professional-grade exterior lighting with field-adjustable color temperature technology, allowing selection between 3000K, 4000K, and 5000K to match specific application requirements. This bronze-finished wall pack features constant current LED driver technology and DLC Premium certification, providing reliable performance for commercial and industrial lighting applications with 100,000-hour lamp life and high efficacy ratings up to 148.2 lumens per watt.

Professional Features & Benefits

  • 29W LED Technology: Energy-efficient LED system delivers up to 4,204 lumens while consuming only 29 watts, reducing operating costs and maintenance requirements.
  • Field-Adjustable CCT: Selectable color temperatures (3000K/4000K/5000K) provide flexibility to optimize lighting appearance for different environments and applications.
  • DLC Premium Certification: DLC 5.1 Premium listing ensures utility rebate eligibility and validates superior energy performance for commercial installations.
  • Constant Current Driver: Professional-grade driver technology ensures stable LED performance and extends fixture lifespan across varying voltage conditions.
  • Bronze Finish: Durable bronze finish provides corrosion resistance and professional appearance suitable for exterior architectural applications.
  • 100,000-Hour Life: Extended lamp life reduces replacement frequency and maintenance costs in commercial and industrial settings.
  • Multi-Voltage Operation: Compatible with 120V through 277V systems with optimized amperage draw for each voltage level.

Technical Specifications

  • Amps 120: 0.30A
  • Amps 208: 0.20A
  • Amps 240: 0.15A
  • Amps 277: 0.10A
  • Dlc Id: PLMZOTHA3J3K
  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Efficacy: 136.7/148.2/138.1
  • Input Watts: 29.3/28.4/29.5
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Lamp Lumens: 4010/4204/4076
  • Product Finish: Bronze
  • Product Height: 10.24
  • Product Length: 12.09
  • Product Watts: 29
  • Product Weight: 6.61
  • Product Width: 10.71

Professional Applications

  • Commercial Building Exterior Lighting
  • Industrial Facility Perimeter Security
  • Retail and Office Building Entrances
  • Warehouse and Distribution Centers
  • Educational Institution Campuses
  • Healthcare Facility Exterior Areas
  • Municipal and Government Buildings

Why Choose RAB Quality?

RAB LED wall packs combine DLC Premium certification with 100,000-hour lamp life and constant current driver technology, ensuring reliable performance and utility rebate eligibility. The bronze finish and professional construction deliver long-term durability for demanding commercial and industrial lighting applications.

Manufacturer Resources

Product Specs

Amps 120:
0.30A
Amps 208:
0.20A
Amps 240:
0.15A
Amps 277:
0.10A
Dlc Id:
PLMZOTHA3J3K
Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant Current
Efficacy:
136.7/148.2/138.1
Input Watts:
29.3/28.4/29.5
Lamp Hours:
100000
Product Finish:
Bronze
Product Height:
10.24
Product Length:
12.09
Product Weight:
6.61
Product Width:
10.71
Department:
Electrical
Product Group:
Flood/Security Lights
Light Technology:
LED
Lumens:
4010/4204/4076
Product Wattage:
29

RAB WP1FA29 – Frequently Asked Questions

1) How do I set the color temperature on the RAB WP1FA29 wall pack, and what are the output levels at each setting?
Color temperature is selected in the field on the fixture, with three positions: 3000K, 4000K and 5000K. Output and draw shift slightly with the setting: 4010 lumens at 29.3W, 4204 lumens at 28.4W, and 4076 lumens at 29.5W, giving efficacy of 136.7, 148.2 and 138.1 lumens per watt. That means one stocked part covers a warm entrance, a neutral campus walkway and a cool security application without ordering three SKUs.
2) Will a RAB 29W LED wall pack run on 277V, or do I need a separate version for 120V?
One fixture covers the range. The WP1FA29 operates on 120V through 277V, drawing 0.30A at 120V, 0.20A at 208V, 0.15A at 240V and 0.10A at 277V. For an electrician that means the same unit works on single-phase 120V building power and on 277V lighting circuits in a commercial panel, so you can standardize across a property with mixed voltages.
3) Does this RAB wall pack qualify for a utility rebate?
It is listed DLC Premium under DLC version 5.1, DLC ID PLMZOTHA3J3K. Most utility prescriptive programs require a DLC listing and many pay a higher incentive for Premium specifically, so that ID is the number to hand your utility or energy consultant when filing the rebate paperwork.
4) Do I need to add a photocell for dusk-to-dawn operation on the RAB WP1FA29?
No separate control is needed. The WP1FA29 is built with a selectable photocell, so it switches on at dusk and off at daylight without a wall timer, contactor or external photo eye on the circuit. Wire it to an unswitched hot and it runs itself, which is what most property managers want on a back door or alley wall.
5) Is a 29W LED wall pack bright enough to replace an old 100W or 150W HID wall pack?
At up to 4,204 lumens from 29 watts, this fixture is aimed at the service-door, entrance and perimeter duty that small HID wall packs used to cover. Because the LED output is directed down and out rather than scattered from a lamp inside a refractor, usable light on the wall and walkway is far better per lumen. For large parking areas or high-mount wall washing you want a higher-lumen flood instead of a 29W pack.
6) How often will crews have to go back up a ladder to service these?
The LED array is rated 100,000 hours. On a dusk-to-dawn schedule of roughly 4,200 hours a year that is well over a decade of operation, and there is no lamp or ballast to change in the interim. For MRO and multi-family maintenance budgets, the relamping line item effectively goes away; the driver becomes the service part rather than the lamp.
7) Will the bronze finish on this RAB wall pack match the other exterior fixtures on my building?
The WP1FA29 comes in bronze only. Bronze is the common default for commercial exterior packs and generally blends with dark bronze storefront framing and anodized door hardware, but it will not match a white or architectural-black fixture family. If your property is standardized on white packs, this is the wrong finish to add to the fleet.
8) What kind of driver is in the RAB WP1FA29 and why does it matter on a long circuit run?
It uses a constant current driver. Constant current regulation holds LED output steady as line voltage sags, which is what you want at the end of a long exterior branch circuit or on a run shared with other loads. It also keeps junction current within spec, which is the main factor in the fixture reaching its rated life.
