RAB FlexFlood LED Flood Light ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,629.53

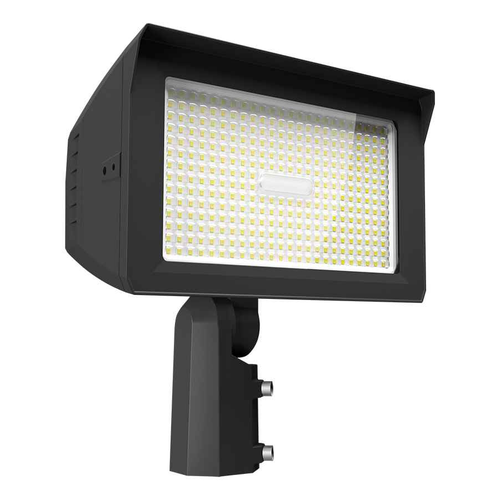

RAB FlexFlood LED Flood Light with Field-Adjustable Power & CCT - 5000K Professional Lighting System

RAB FlexFlood LED Flood Light with Field-Adjustable Power & CCT - 5000K Professional Lighting System

(No reviews yet) Write a Review

Model: FXLEDMSF/480/7PR
$2,629.53
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,629.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB FlexFlood LED Flood Light with Field-Adjustable Power & CCT - 5000K Professional Lighting System

Professional field-adjustable LED flood lighting with premium performance

The RAB FlexFlood LED Flood Light delivers professional-grade illumination with field-adjustable power and CCT capabilities at 5000K. This versatile LED flood light system features constant current driver technology and DLC Premium certification, providing reliable performance for demanding commercial and industrial applications with optional 7-pin receptacle and 480V compatibility.

Professional Features & Benefits

  • Field-Adjustable Power & CCT: Customize light output and color temperature on-site for optimal performance in any application
  • 5000K Color Temperature: Delivers crisp, daylight-balanced illumination ideal for security, area lighting, and commercial spaces
  • DLC Premium 5.1 Certification: Ensures maximum energy efficiency and utility rebate eligibility for cost-effective operation
  • 100,000-Hour LED Life: Provides exceptional longevity with minimal maintenance requirements for reduced total cost of ownership
  • Constant Current Driver: Maintains consistent LED performance and extends fixture life through stable power delivery
  • 480V Compatibility: Supports high-voltage applications for industrial and large commercial installations
  • Optional 7-Pin Receptacle: Enables flexible installation and connection options for various mounting configurations

Technical Specifications

  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Lamp Hours: 100000
  • Lamp Info: LED

Professional Applications

  • Commercial Building Perimeter Lighting
  • Industrial Facility Area Illumination
  • Parking Lot and Garage Security Lighting
  • Warehouse and Distribution Center Lighting
  • Retail and Shopping Center Exterior Lighting
  • Municipal and Public Safety Applications
  • Sports and Recreation Facility Lighting

Why Choose RAB Quality?

RAB FlexFlood LED technology combines field-adjustable versatility with DLC Premium certification and 100,000-hour LED life for reliable, energy-efficient performance. The constant current driver ensures consistent operation while optional 480V compatibility and 7-pin receptacle provide installation flexibility for professional lighting applications.

Manufacturer Resources

Product Specs

Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant Current
Lamp Hours:
100000
Department:
Electrical
Product Group:
Floodlights
Light Technology:
LED

RAB FXLEDMSF/480/7PR – Frequently Asked Questions

1) What wattages does the RAB FlexFlood LED flood light cover?
The FlexFlood is built in four housing sizes, and each one is field-adjustable across a set of wattage steps: 80/60/40W, 168/132/97/69W, 346/213W, and 534/445W. You pick the housing that brackets your target load, then set the actual wattage at the fixture during install. That means one housing can cover several photometric targets, so you can standardize on fewer SKUs across a site and dial each pole or wall location in to what the layout calls for.
2) Can I run this RAB flood light on 480V?
Yes. The FlexFlood comes with either a 120-277V driver or a 480V driver, both with 0-10V dimming. The 480V build is the one to order for industrial services and large commercial sites running high-leg distribution. Voltage is fixed by the driver you order, so it is not a field change - specify it up front against your panel schedule.
3) Should I order the trunnion or the slipfitter mount on the FlexFlood?
Trunnion is the yoke-style bracket for flat surfaces - wall faces, parapets, ceilings, and bar-mount applications where you aim the fixture on the yoke. Slipfitter is for going onto a round tenon at the top of a pole or on a pole-mounted arm. Pick trunnion if you are attaching to a structure, slipfitter if you are landing on a pipe tenon. Both are ordered options on the FlexFlood, not accessories you add later.
4) Does the FlexFlood work with photocells or a networked lighting control system?
There is an ordering option for a 7-pin receptacle, which is what you want if you are dropping in a twist-lock photocontrol or a networked control node with dimming leads. If you do not need it, the No Option build leaves it off. Every driver, 120-277V and 480V alike, includes 0-10V dimming, so you can also dim from a standard 0-10V controller without the receptacle.
5) What do I have to specify when ordering a RAB FlexFlood?
Five choices go on the order: housing size (80/60/40W, 168/132/97/69W, 346/213W, or 534/445W), driver voltage (120-277V or 480V, both 0-10V dimming), finish (bronze or white), mounting (slipfitter or trunnion), and whether you want the 7-pin receptacle. Wattage and CCT within the housing's range are not order choices - those get set at the fixture during install.
6) Is the RAB FlexFlood eligible for utility rebates?
It is listed as DLC Premium under DLC version 5.1, which is the higher of the two DesignLights Consortium tiers and the one most utility programs tie their larger incentive to. Pull the fixture's DLC listing for your submittal and check it against your utility's current qualified products requirement before you file the rebate paperwork.
7) What color temperature is this RAB flood light, and can it be changed?
The FlexFlood is a field-adjustable CCT fixture supplied at 5000K. 5000K reads as a crisp daylight white and is the usual pick for security lighting, parking areas, and industrial yards where you want good contrast on camera. Because CCT is set at the fixture, you can bring it in line with adjacent lighting on site instead of reordering.
8) Can I standardize one flood light across a whole property instead of stocking several models?
That is the main argument for the FlexFlood on a multi-building property. Wattage and color temperature are both set in the field, so a single housing size covers every step in its range - the 168/132/97/69W body, for instance, handles four different output targets. Stock one or two housing sizes in one finish and one mounting style, and adjust each fixture at install to suit the wall, pole, or dock it is going on.
9) How long do the LEDs last on the RAB FlexFlood?
Rated LED life is 100,000 hours. For a dusk-to-dawn exterior run at roughly 4,000 hours a year, that is on the order of 25 years of service, which is why these get spec'd on poles and high walls where relamping means a lift. The constant current driver holds output steady over that life rather than letting drive current drift.
10) What finishes does the RAB FlexFlood come in?
Bronze and white. Bronze is the default on most commercial exteriors and poles because it disappears against dark facades and existing site lighting; white is the one to match light-colored stucco, canopies, and interior industrial ceilings where you want the fixture to blend up. Finish is set at order, so match it to the rest of the site before you release the PO.
