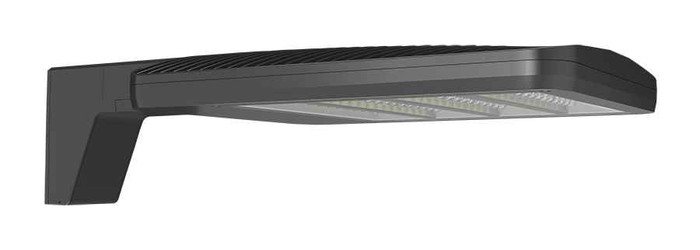

RAB ALED Series LED Area Light with DLC Premium 5.1 Certification and Universal Mount

RAB ALED Series LED Area Light with DLC Premium 5.1 Certification and Universal Mount

(No reviews yet) Write a Review

Model: ALEDM3TW
$1,708.97
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,708.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB ALED Series LED Area Light with DLC Premium 5.1 Certification and Universal Mount

Professional LED area lighting with versatile mounting options

The RAB ALED Series LED Area Light delivers reliable outdoor illumination with universal mounting capability and DLC Premium 5.1 certification. This professional-grade LED fixture operates on 120-277V input voltage with constant current driver technology, providing consistent performance across commercial and industrial applications. The universal mount design offers flexible installation options for diverse lighting requirements.

Professional Features & Benefits

  • DLC Premium 5.1 Certification: Ensures maximum energy efficiency and utility rebate eligibility for cost-effective operation.
  • 120-277V Input Voltage: Compatible with standard commercial electrical systems for versatile installation applications.
  • 100,000 Hour LED Life: Provides long-term reliability with minimal maintenance requirements and reduced replacement costs.
  • Constant Current Driver: Delivers stable LED performance and consistent light output throughout the fixture's operational life.
  • Universal Mount Design: Accommodates multiple mounting configurations for flexible installation in various outdoor environments.
  • 3000K-5000K Color Temperature Range: Offers warm to cool white light options to match specific application requirements and preferences.

Technical Specifications

  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Input Voltage: 120-277V
  • Lamp Hours: 100000
  • Lamp Info: LED

Professional Applications

  • Commercial Building Perimeters
  • Industrial Facility Lighting
  • Parking Lot Illumination
  • Retail Center Exterior Lighting
  • Municipal and Public Spaces
  • Security and Safety Lighting
  • Warehouse and Distribution Centers

Why Choose RAB Quality?

RAB ALED Series LED Area Lights combine proven LED technology with DLC Premium certification and constant current driver reliability. The 100,000-hour LED life rating ensures long-term performance with minimal maintenance, while universal mounting capability provides installation flexibility for diverse commercial and industrial lighting applications.

Manufacturer Resources

Product Specs

Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant Current
Input Voltage:
120-277V
Lamp Hours:
100000
Department:
Electrical
Product Group:
Flood/Security Lights
Light Technology:
LED

RAB ALEDM3TW – Frequently Asked Questions

1) Will the RAB ALED area light run on my 277V building service, or do I need a separate driver?
The ALED Series accepts 120-277V input on a constant current driver, so the same fixture wires to 120V, 208V, 240V or 277V without ordering a voltage-specific version. For a parking lot or building perimeter fed at 277V off a commercial panel, that means one part number covers the whole site even where the service voltage differs between buildings.
2) Which RAB ALED wattage should I use for a parking lot versus a building wall perimeter?
The ALED comes in four housing sizes and the wattage tracks the housing: Small at 80W, 60W or 50W, Medium at 150W, 90W or 78W, Large at 260W, 220W or 170W, and Extra Large at 385W, 345W or 300W. Building perimeter and small lots generally sit in the Small and Medium range; open parking fields and distribution yards on tall poles are where the Large and Extra Large output belongs. Pick the housing first, because it sets which wattages you can order at all.
3) What distribution type do I order on a RAB ALED for a pole at the edge of a parking lot?
Distribution is a required choice on the ALED and there are five: Type II, Type III, Type IV, Type V, and an Auto Dealership Optic. A pole at the lot edge or against a property line wants Type IV, which throws forward and holds light off the neighboring property. Type II and Type III suit roadway and drive-aisle runs, Type V spreads light in all directions for a pole in the middle of the lot, and the Auto Dealership Optic is the high-vertical-illuminance option for a car display lot. Order the optic with the fixture, it is not a field-swapped part on your end.
4) Does the RAB ALED qualify for a utility rebate?
The ALED carries DLC Premium listing under DLC version 5.1, which is the tier most utility programs tie their higher rebate amounts to. Premium is the stricter of the two DLC tiers, so a fixture that only needed DLC Standard would still pass the program while this one reaches the upper bracket. Rebate amounts themselves are set by your utility, but the certification the application asks for is on the fixture.
5) Do I have to specify anything besides wattage when ordering a RAB ALED?
Four things get locked in at order on the ALED: housing size (which sets the available wattages), distribution type (Type II, III, IV, V or Auto Dealership Optic), color temperature (4000K or 5000K), and finish (bronze or white). Miss the optic and you get a fixture that lights the wrong part of the lot even though the wattage is correct. The voltage does not need calling out, since one 120-277V driver covers the range.
6) What color temperature should I spec on RAB ALED area lights for a retail center?
Two color temperatures are orderable on the ALED, 4000K neutral and 5000K cool. 4000K reads as a softer white and is the usual pick where the lot fronts a retail or hospitality building and you do not want the harsh look. 5000K is the brighter, bluer white typically used for security lighting, industrial yards and warehouse aprons. Standardize on one across a site, since mixing the two on adjacent poles is obvious at night.
7) Can I match the finish on new RAB ALED fixtures to the bronze poles already on my property?
Bronze and white are the two finishes the ALED is offered in. Bronze is the standard match for the dark bronze poles and arms found on most commercial and multi-family sites, and white is used where the fixture mounts to a light-colored facade or canopy and the owner wants it to disappear against the building. Finish is fixed at order, so a mid-lot replacement needs to be ordered in the same finish as what is on the other poles.
8) Will the RAB ALED mount on my existing square pole, or do I need a separate adapter?
The ALED uses a universal mount, so a single fixture arrangement covers multiple mounting configurations rather than forcing you to pick a mount-specific SKU. That is the point of the design on a retrofit: you are replacing metal halide shoebox fixtures on poles of varying make and you do not want to order a different mount per pole. Confirm the drilling pattern on your specific poles when you take the old head off, because the mount is what has to land on the existing holes.
9) How long do RAB ALED LED area lights last before they need relamping?
The LED source is rated at 100,000 hours, and there is no lamp to change, the LEDs are integral to the fixture. On a dusk-to-dawn schedule of roughly 4,000 hours a year, that rating works out to about 25 years of service, which is why these get specified on poles where a lift rental is the real cost of maintenance rather than the part itself.
10) Is a constant current driver better than constant voltage for an outdoor area light?
The ALED runs a constant current driver, which regulates current to the LED array so output stays stable as the fixture heats up and as line voltage moves around. Constant voltage drivers are the ones used for LED tape and strip, where loads get cut to length. For a pole-mounted area light on a commercial service that can sag under load, constant current is the arrangement that keeps light levels consistent across the run of poles.
