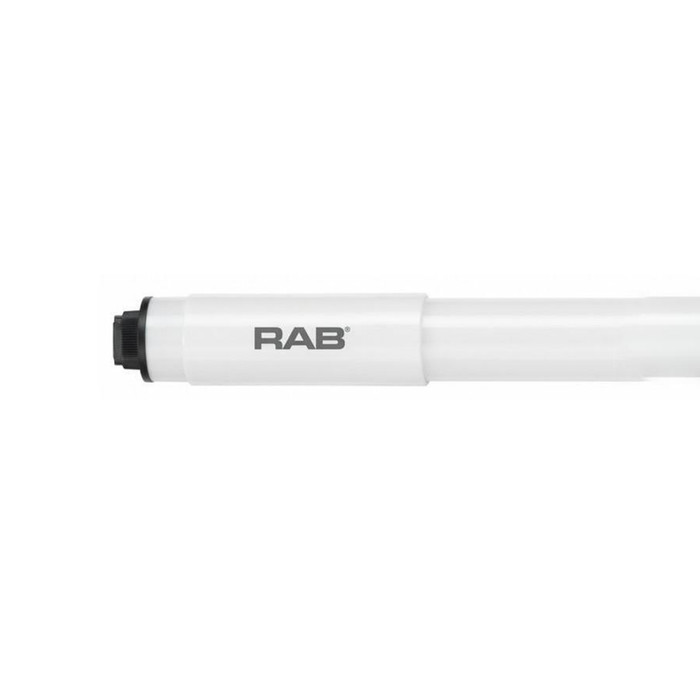

RAB T8HO LED Linear Tube – 8-Foot, 40W, R17d Base, Double-Ended Ballast Bypass

RAB T8HO LED Linear Tube - 8-Foot, 40W, R17d Base, Double-Ended Ballast Bypass System

(No reviews yet) Write a Review

Model: T8HO-40-96G-R17D-830-DE-BYP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$35.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB T8HO LED Linear Tube - 8-Foot, 40W, R17d Base, Double-Ended Ballast Bypass System

Professional LED lighting solution for high-output applications

The RAB T8HO LED Linear Tube delivers professional-grade illumination with 40W power consumption and 5500 lumens output in an 8-foot configuration. This double-ended ballast bypass system features R17d base compatibility and operates on 120-277V input voltage with constant current driver technology for reliable performance in commercial and industrial lighting applications.

Professional Features & Benefits

  • 40W High-Output Performance: Delivers 5500 lumens with energy-efficient LED technology for superior illumination in demanding applications.
  • 120-277V Universal Input: Compatible with standard commercial voltage systems for versatile installation flexibility.
  • 50,000-Hour Rated Life: Extended operational lifespan reduces maintenance costs and replacement frequency in professional environments.
  • Double-Ended Ballast Bypass: Eliminates ballast dependency for improved reliability and reduced system complexity.
  • R17d Base Configuration: Ensures secure connection and proper electrical contact in high-output fixture applications.
  • Constant Current Driver: Provides stable LED performance and consistent light output throughout operational life.
  • 0.5 Flicker Rating: Minimizes visual fatigue and provides comfortable lighting for extended work periods.

Technical Specifications

  • Amps 120: 0.4A
  • Driver Info: Constant Current
  • Flicker: 0.5
  • Input Voltage: 120-277V
  • Input Watts: 40
  • Lamp Hours: 50000
  • Lamp Info: LED
  • Lamp Lumens: 5500
  • Product Finish: Clear
  • Product Height: 1.09
  • Product Length: 93.7
  • Product Watts: 40
  • Product Weight: 0.88
  • Product Width: 1.09

Professional Applications

  • Commercial Office Buildings
  • Industrial Facilities
  • Warehouse and Distribution Centers
  • Retail Establishments
  • Educational Institutions
  • Healthcare Facilities
  • Manufacturing Plants

Why Choose RAB Quality?

RAB LED linear tubes provide dependable performance with 50,000-hour rated life and constant current driver technology. The clear finish and professional-grade construction ensure consistent light output and reliable operation in demanding commercial and industrial environments.

Manufacturer Resources

Product Specs

Amps 120:
0.4A
Driver Info:
Constant Current
Flicker:
0.5
Input Voltage:
120-277V
Input Watts:
40
Lamp Hours:
50000
Product Finish:
Clear
Product Height:
1.09
Product Length:
93.7
Product Weight:
0.88
Product Width:
1.09
Department:
Electrical
Product Group:
Linear Tubes
Light Technology:
LED
Lumens:
5500
Product Wattage:
40

RAB T8HO-40-96G-R17D-830-DE-BYP – Frequently Asked Questions

1) Do I have to remove the ballast to install this 8-foot R17d LED tube?
Yes. It is a double-ended ballast bypass lamp, so the existing ballast has to be disconnected and removed, with line voltage wired to one end of the socket pair and neutral to the other. There is no ballast-compatible (Type A) mode. Plan on a licensed electrician for the rewire and relabeling of the fixture.
2) Which color temperature should I order for a warehouse versus an office?
Three color temperatures are offered: 3000K (part T8HO-40-96G-R17D-830-DE-BYP), 4000K (T8HO-40-96G-R17D-840-DE-BYP), and 5000K (T8HO-40-96G-R17D-850-DE-BYP). 5000K is the usual pick for warehouses, shops, and parking structures where crisp visibility matters. 4000K is the common neutral choice for offices, schools, and retail. 3000K is warm and gets used where the lighting needs to match incandescent-era spaces. Order one temperature per building area so the rows don't read mismatched.
3) What is the actual length of this 8-foot tube, and will it drop into my existing lampholders?
The lamp measures 93.7 inches long and 1.09 inches in both height and width, so it is a nominal 8-foot T8 diameter body. Sockets on an 8-foot HO strip are spaced for that length, but if your fixture has spring-loaded lampholders, measure socket face to socket face before ordering a full pallet.
4) Can I put the RAB T8HO LED tube on a dimmer or an occupancy sensor?
It runs on a constant current driver and there is no dimming rating stated for it, so treat it as a non-dimming lamp and wire it switched. Line-voltage occupancy sensors and relay-based controls that simply open and close the circuit are fine; a 0-10V or phase-cut dimmer is not what this lamp is built for.
5) Is this tube a good choice for an office or classroom where people work under it all day?
Flicker is rated at 0.5, which is low enough that it isn't a concern for extended desk or classroom work. That plus the 4000K option is why these get specified in offices, schools, and healthcare corridors rather than just warehouses.
