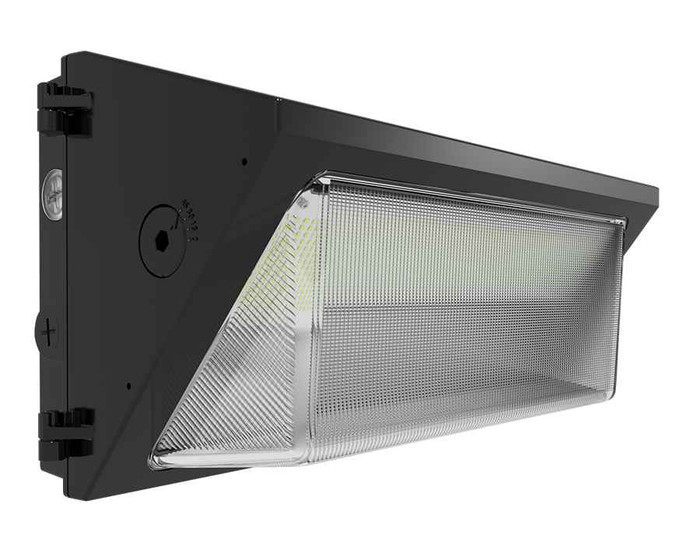

RAB W22-L-150 LED Wall Pack 150W Bronze Finish with Constant Driver

RAB W22-L-150 LED Wall Pack 150W Bronze Finish with Constant Driver

(No reviews yet) Write a Review

Model: W22-L-150
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$428.87
$403.28
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB W22-L-150 LED Wall Pack 150W Bronze Finish with Constant Driver

Professional LED Wall Pack Lighting for Commercial & Industrial Applications

The RAB W22-L-150 LED Wall Pack delivers reliable 150W LED lighting performance with selectable wattage options and professional bronze finish. This commercial-grade wall pack features constant driver technology and delivers up to 20,920 lumens with exceptional 100,000-hour lamp life for long-term reliability in outdoor and security lighting applications.

Professional Features & Benefits

  • 150W Maximum Power with Selectable Wattage: Offers flexible power options (150/125/100/75W) to match specific lighting requirements and energy efficiency goals.
  • High Lumen Output: Delivers 10,103-20,920 lumens for excellent illumination coverage and visibility in commercial applications.
  • Exceptional Efficacy Rating: Achieves 121.5-161.6 lumens per watt for superior energy efficiency and reduced operating costs.
  • 100,000-Hour LED Life: Provides long-term reliability with minimal maintenance requirements for continuous operation.
  • Constant Driver Technology: Ensures stable LED performance and consistent light output throughout the fixture's operational life.
  • Professional Bronze Finish: Durable bronze coating provides corrosion resistance and professional appearance for commercial installations.
  • Compact Design: 19.09" x 10.47" x 10.28" dimensions offer versatile mounting options while maintaining robust construction.

Technical Specifications

  • Amps_120: 1.50A
  • Amps_208: 0.80A
  • Amps_240: 0.70A
  • Amps_277: 0.60A
  • Department: Electrical
  • Driver_Info: Constant
  • Efficacy: 121.5-161.6
  • Input_Watts: 74.5-147.2
  • Lamp_Hours: 100000
  • Lamp_Info: LED
  • Lamp_Lumens: 10,103-20,920
  • Product Finish: Bronze
  • Product Height: 10.28
  • Product Length: 10.47
  • Product Wattage: 150/125/100/75
  • Product Weight: 13.007
  • Product Width: 19.09

Professional Applications

  • Commercial Building Perimeter Lighting
  • Industrial Facility Security Lighting
  • Warehouse and Loading Dock Illumination
  • Retail Center Exterior Lighting
  • Office Complex Wall Mounting
  • Municipal and Government Buildings
  • Educational Institution Exterior Areas

Why Choose RAB Quality?

RAB LED wall packs provide professional-grade reliability with 100,000-hour lamp life and constant driver technology for consistent performance. The durable bronze finish and selectable wattage options deliver long-term value and operational flexibility for demanding commercial lighting applications.

Manufacturer Resources

Product Specs

Amps 120:
1.50A
Amps 208:
0.80A
Amps 240:
0.70A
Amps 277:
0.60A
Department:
Electrical
Driver Info:
Constant
Efficacy:
121.5-161.6
Input Watts:
74.5-147.2
Lamp Hours:
100000
Lamp_Info:
LED
Lamp_Lumens:
10,103-20,920
Product Finish:
Bronze
Product Height:
10.28
Product Length:
10.47
Product Wattage:
150/125/100/75
Product Weight:
13.007
Product Width:
19.09

RAB W22-L-150 – Frequently Asked Questions

1) What voltage does the RAB W22-L-150 wall pack run on, and can it be dimmed?
The W22-L-150 runs on a 120-277V universal input and the driver supports 0-10V dimming, so it drops onto 120V, 208V, 240V or 277V branch circuits without a separate part number. Current draw is 1.50A at 120V, 0.80A at 208V, 0.70A at 240V and 0.60A at 277V, which is what you size the circuit and count fixtures per breaker from.
2) How does the selectable wattage on the RAB W22 wall pack work and what do I get at each setting?
The fixture is field-selectable at 150, 125, 100 or 75W. Actual input draw across those settings runs 74.5 to 147.2 watts, and output tracks from 10,103 lumens at the low end to 20,920 lumens at the top. Efficacy sits between 121.5 and 161.6 lumens per watt depending on where you set it. That means one SKU can cover a low-traffic back door and a loading dock, and you can trim wattage after install if the site comes in brighter than the photometric plan called for.
3) Is a 150W LED wall pack enough to replace a 400W metal halide fixture on a building perimeter?
At its top setting the RAB W22-L-150 puts out 20,920 lumens while drawing 147.2 watts, which is the output band a 400W HID perimeter fixture typically occupied once lamp depreciation is accounted for. If you only need to cover a 250W-class HID position, step the selector down to 100W or 75W rather than buying a different fixture. Note that LED wall packs throw light down and out rather than in all directions, so lay out spacing from the photometrics, not from the old fixture's wattage.
4) Can I put the RAB W22 wall pack on a photocell or occupancy control?
The driver accepts a 0-10V dimming signal, so it will work with an external 0-10V control layer such as a lighting panel or a dimming occupancy sensor wired to the control leads. For simple dusk-to-dawn switching, the fixture is fed from a 120-277V circuit and can be switched by a line-voltage photocell ahead of it. Order the photocell separately; control devices are not part of the fixture.
5) What does the constant driver on this RAB wall pack actually mean for maintenance?
Constant driver means the fixture holds its drive output steady rather than varying with the LED load, so light level stays consistent through the fixture's life instead of drifting. Paired with the 100,000-hour LED rating, that is the argument for spec'ing these across a portfolio: you are not relamping on a cycle, and the fixtures installed this year still match the ones installed next year.
6) Does the RAB W22-L-150 come in anything other than bronze?
Bronze is the finish this model ships in, paired with the 120-277V 0-10V dimming driver. Bronze is the default across most commercial exterior hardware, so it generally blends with existing perimeter fixtures, downspouts and storefront framing on a mixed-age property without a repaint.
7) Is one 150W wall pack enough for a loading dock, or do I need two?
At the 150W setting the W22 delivers 20,920 lumens, which generally covers a single dock position and its approach apron from a standard mounting height. Multiple dock doors in a row are normally handled one fixture per door so the trailer body does not shadow the next bay. Where the dock sits under a canopy and you only need task level at the door face, drop the selector to 100W (around 14,000-lumen class on this fixture's range) and save the connected load.
