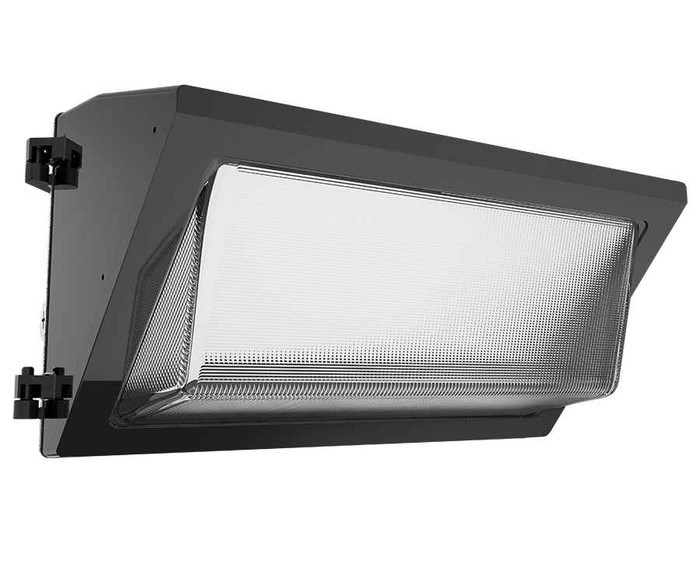

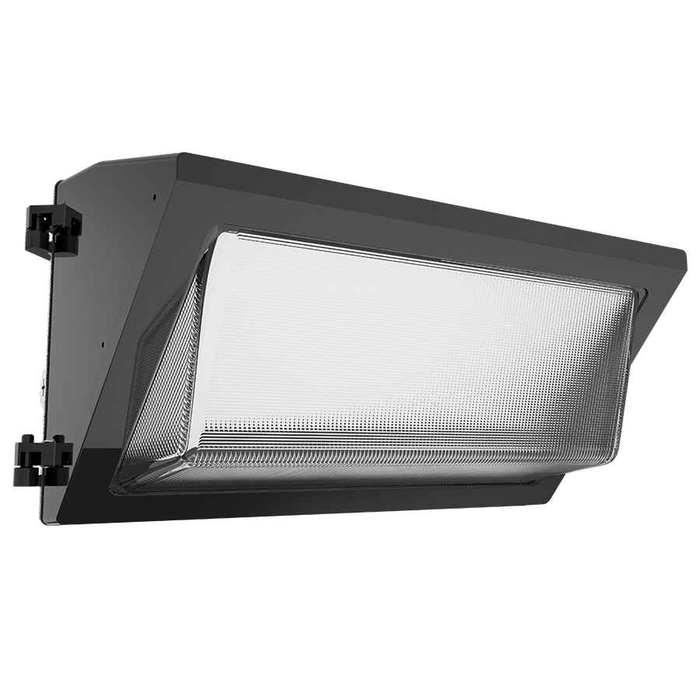

RAB WP3XFU Field-Adjustable LED Wall Pack - 50W/120W/150W Selectable Wattage with Multiple CCT Options

RAB WP3XFU Field-Adjustable LED Wall Pack - 50W/120W/150W Selectable Wattage with Multiple CCT Options

(No reviews yet) Write a Review

Model: WP3XFU120

In Stock (leaves warehouse same day if ordered before 3pm ET)

$354.67
$310.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB WP3XFU Field-Adjustable LED Wall Pack - 50W/120W/150W Selectable Wattage with Multiple CCT Options

Professional field-adjustable LED lighting with selectable wattage and color temperature control

The RAB WP3XFU Field-Adjustable LED Wall Pack delivers professional-grade exterior lighting with exceptional versatility through selectable 50W/120W/150W wattage options and multiple CCT selections. This bronze-finished wall pack features DLC Premium 5.1 certification and constant current LED driver technology, providing reliable performance for commercial and industrial applications with 100,000-hour lamp life rating.

Professional Features & Benefits

  • Field-Adjustable Wattage (50W/120W/150W): Allows precise light output customization on-site to match specific application requirements and energy efficiency goals.
  • Selectable CCT Options: Multiple color temperature selections enable optimal lighting ambiance and visual comfort for diverse environments.
  • DLC Premium 5.1 Certification: Ensures maximum energy rebate eligibility and validates superior efficiency performance for utility incentive programs.
  • 100,000-Hour LED Life Rating: Provides exceptional longevity reducing maintenance costs and ensuring consistent illumination over extended service periods.
  • Constant Current Driver Technology: Delivers stable LED performance and optimal light output while protecting against voltage fluctuations and extending component life.
  • Durable Bronze Finish: Weather-resistant coating provides long-lasting protection against environmental elements while maintaining professional appearance.
  • Compact Design (19.25" x 12" x 11.5"): Space-efficient profile enables versatile mounting options while delivering powerful illumination performance.

Technical Specifications

  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Product Finish: Bronze
  • Product Height: 12
  • Product Length: 19.25
  • Product Width: 11.5

Professional Applications

  • Commercial Building Perimeter Lighting
  • Industrial Facility Security Illumination
  • Retail Center Exterior Lighting
  • Office Complex Wall Mounting
  • Warehouse Loading Dock Areas
  • Multi-Unit Residential Properties
  • Professional Service Buildings

Why Choose RAB Quality?

RAB delivers professional-grade LED lighting solutions with DLC Premium certification and 100,000-hour performance rating. The bronze finish and constant current driver technology ensure reliable operation and durability for demanding commercial applications, backed by field-proven engineering and quality construction standards.

Manufacturer Resources

Product Specs

Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant Current
Lamp Hours:
100000
Product Finish:
Bronze
Product Height:
12
Product Length:
19.25
Product Width:
11.5
Department:
Electrical
Product Group:
Flood/Security Lights
Light Technology:
LED

RAB WP3XFU120 – Frequently Asked Questions

1) What is the difference between the WP3XFU50, WP3XFU120, and WP3XFU150 wall packs?
They are three separate power classes of the same RAB WP3XFU field-adjustable wall pack, and each one has its own three-step selectable range. The WP3XFU50 switches between 50W, 40W and 30W. The WP3XFU120 covers 120W, 100W and 80W. The WP3XFU150 covers 150W, 130W and 100W. You pick the model for the light level the site needs, then fine-tune on the wall at install. Note that the ranges overlap at 100W, so if 100W is your target you can get there from either the 120 or the 150 model.
2) Does the RAB WP3XFU wall pack come with a photocell or do I have to add one?
A selectable photocell is part of the option package on every WP3XFU ordered, across all three wattage models. You are not buying a separate button photocell or wiring a time clock for dusk-to-dawn operation. For a property manager standardizing perimeter lighting on a building, that means one part number gets you the fixture and the automatic on/off control together.
3) Will this RAB wall pack qualify for my utility's LED rebate program?
The WP3XFU is listed DLC Premium under DLC version 5.1, which is the higher of the two DesignLights Consortium tiers and the one most utility incentive programs pay their top rebate on. Bring the model number and the DLC listing to your utility; programs set their own qualifying product lists, but Premium 5.1 is the classification they are looking for.
4) Which WP3XFU model should I use for a warehouse loading dock versus a walkway entry?
For a loading dock or a large industrial yard face, the WP3XFU150 is the one to look at, with steps at 150W, 130W and 100W. Building perimeters and retail center walls are typically served by the WP3XFU120 at 120W, 100W or 80W. For an entry door, a walkway, or a multi-family breezeway, the WP3XFU50 at 50W, 40W or 30W is usually enough light without overlighting the adjacent property. All three carry the same bronze housing and selectable photocell, so a building can be lit with one family of fixtures.
5) How much wall space do I need for the RAB WP3XFU wall pack?
Plan for a footprint of 19.25 by 12 by 11.5 inches. That is a full-size wall pack body, so check clearance around door heads, downspouts, and signage bands before you set the box location. On a retrofit it is worth measuring the old fixture's back plate against that envelope so you are not left patching paint or exposed conduit knockouts.
6) Can I change the color temperature on the WP3XFU after it is installed?
Yes. The WP3XFU is a selectable CCT fixture, so the color temperature is chosen at the fixture rather than fixed at the factory. That is useful when you are matching new wall packs to existing lighting on the other elevations of a building, or when a tenant wants a warmer look at an entry than the loading dock runs. Wattage is selectable in the same way, so both light level and color are set on site.
7) Why would I buy one field-adjustable wall pack instead of stocking several fixed-wattage models?
Because one part number covers a range of openings. A contractor bidding a building with a mix of entries, dock doors, and side walls would normally carry two or three fixed-wattage wall packs; with the WP3XFU the crew carries one model and dials in 120W, 100W, or 80W (or the equivalent steps on the 50 and 150 models) as each location calls for it. It also cuts the risk of the light level coming back wrong after the foot-candle check, since you adjust the fixture rather than reorder it.
8) How long will these LED wall packs last before I have to send a lift back out?
The LED source is rated at 100,000 hours. Run dusk to dawn on the built-in photocell, that is a service life measured in decades rather than the few years of relamping a metal halide or HPS wall pack demands. The fixture also runs on a constant current driver, which holds output steady through line voltage swings, a real consideration on industrial services with heavy motor loads.
