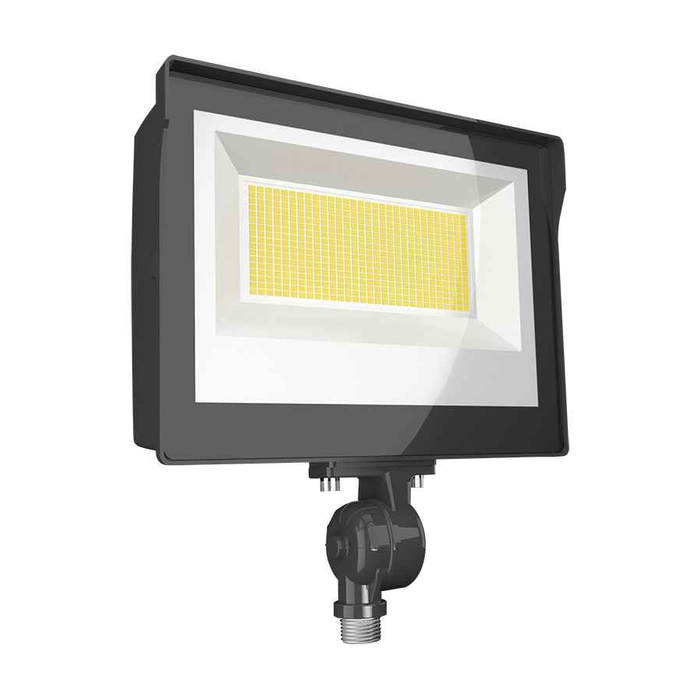

RAB X17XFU LED Floodlight - Field-Adjustable 35W/60W/80W with Selectable CCT and DLC Premium Certification

RAB X17XFU LED Floodlight - Field-Adjustable 35W/60W/80W with Selectable CCT and DLC Premium Certification

(No reviews yet) Write a Review

Model: X17XFU60
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$139.84
$127.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB X17XFU LED Floodlight - Field-Adjustable 35W/60W/80W with Selectable CCT and DLC Premium Certification

Professional field-adjustable LED floodlight with selectable wattage and color temperature

The RAB X17XFU LED Floodlight delivers professional-grade illumination with field-adjustable wattage options of 35W, 60W, and 80W, plus selectable CCT for versatile lighting applications. This constant current LED floodlight features DLC Premium certification and is engineered for reliable performance in commercial and industrial environments.

Professional Features & Benefits

  • Field-Adjustable Wattage (35W/60W/80W): Provides installation flexibility to match specific lighting requirements and energy efficiency goals.
  • Selectable CCT: Allows color temperature adjustment for optimal lighting conditions across different applications and environments.
  • DLC Premium 5.1 Certification: Ensures high-efficiency performance and utility rebate eligibility for energy-conscious installations.
  • Constant Current Driver: Delivers stable LED performance and extended operational life with consistent light output.
  • 100,000 Hour LED Life: Provides long-term reliability and reduced maintenance requirements for professional applications.
  • 347V Compatibility: Supports commercial voltage requirements with 83-85 amp rating for robust electrical performance.

Technical Specifications

  • Amps 347: 83-85
  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Lamp Hours: 100000
  • Lamp Info: LED

Professional Applications

  • Commercial Building Exterior Lighting
  • Industrial Facility Perimeter Security
  • Parking Lot and Area Illumination
  • Warehouse and Loading Dock Lighting
  • Retail and Office Building Facades
  • Municipal and Public Space Lighting
  • Sports and Recreation Facility Lighting

Why Choose RAB Quality?

RAB LED floodlights combine DLC Premium certification with 100,000-hour LED life and constant current driver technology for dependable professional lighting solutions. The field-adjustable design and selectable CCT provide installation flexibility while maintaining energy efficiency and long-term reliability.

Manufacturer Resources

Product Specs

Amps 347:
83-85
Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant Current
Lamp Hours:
100000
Department:
Electrical
Product Group:
Flood/Security Lights
Light Technology:
LED

RAB X17XFU60 – Frequently Asked Questions

1) What wattages does the RAB X17XFU floodlight come in, and can I change the wattage after it's installed?
The X17XFU is field adjustable, so you set the output at the fixture rather than picking a fixed wattage at the driver. Three models cover the range: the X17XFU35 switches between 35, 25 and 15W, the X17XFU60 between 60, 50 and 30W, and the X17XFU80 between 80, 60 and 40W. Pick the model whose band brackets what the site needs, then trim it at install if the light level comes in hot or short. Color temperature is selectable at the fixture too, so one part number covers more than one lighting spec.
2) Is the RAB X17XFU floodlight DLC listed for utility rebates?
It carries DLC Premium under DLC version 5.1, which is the higher of the two DLC tiers and the one most utility programs pay their larger rebate on. If your rebate paperwork asks for the DLC classification and version, that's the pair of values to put down.
3) What color does the RAB X17XFU floodlight come in for matching existing building fixtures?
Two finishes, bronze and white, and both are offered across all three wattage models (X17XFU35 and X17XFU35W, X17XFU60 and X17XFU60W, X17XFU80 and X17XFU80W). The W suffix on the part number is the white housing. Bronze is the usual match for existing exterior wall packs and floods on a commercial facade; white reads better against light stucco or a painted parapet.
4) Can one RAB X17XFU floodlight cover both a loading dock and a building facade on the same job?
That's the case for the adjustable model. Because wattage steps in the field and CCT is selectable, a contractor can carry one part number to a site with mixed conditions and dial each location in: higher output over the dock and drive aisles, stepped down on the facade or an entry where the same output would glare. On a multi-building property it also cuts what you stock as spares, since a single X17XFU80 can stand in anywhere from 40W up to 80W.
5) Which RAB X17XFU model should I order to replace an older 150W or 175W metal halide flood?
Match on light output, not on the old nameplate wattage. LED floods draw a fraction of what a metal halide of the same coverage did, so the X17XFU80 at its 80W top setting is the one to look at for the larger HID heads, and the field adjustment lets you back it down to 60 or 40W once the fixture is up and you can see the actual level on the ground. That's the practical advantage over a fixed-wattage retrofit: you correct the sizing on site instead of reordering.
6) How long do RAB X17XFU LED floodlights last before they need relamping?
There's no lamp to change. The X17XFU is an integrated LED fixture rated at 100,000 hours of LED life, which on a dusk-to-dawn exterior schedule is well over two decades of service. For a property manager budgeting maintenance on a lot full of poles or a perimeter run, that means the labor line is cleaning and aiming, not lamp replacement.
7) Does the RAB X17XFU floodlight have a constant current driver, and does that matter for dimming or flicker?
The driver is constant current, which is how the fixture holds output steady as line voltage moves around, and it's part of why the LED life rating holds up. On a long feeder or a site with heavy motor loads dropping voltage, a constant current driver is what keeps the light level from wandering. It's also the driver type that makes the field-selectable wattage work, since the current is what gets stepped when you change the setting.
