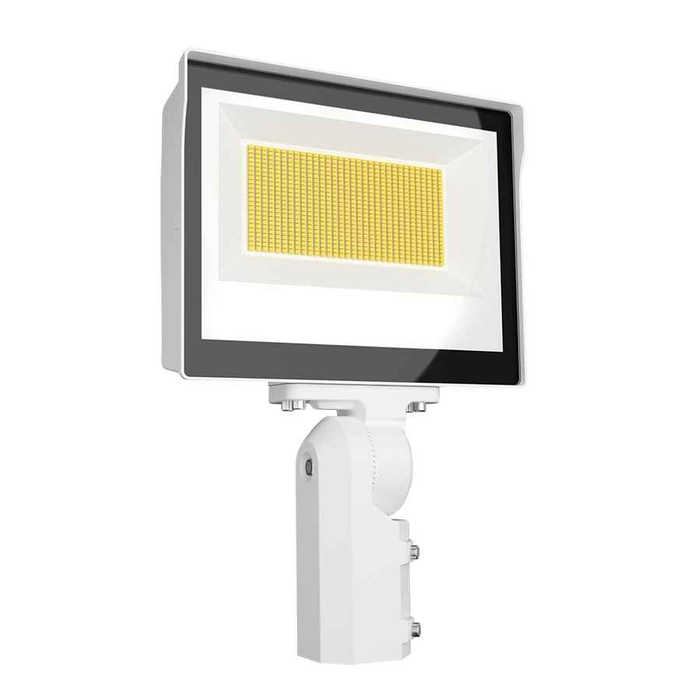

RAB X17 Field-Adjustable LED Floodlight 50W-105W Selectable CCT 3000K-5000K with Dual Mount System

RAB X17 Field-Adjustable LED Floodlight 50W-105W Selectable CCT 3000K-5000K with Dual Mount System

(No reviews yet) Write a Review

Model: X17XFU140SF
$381.99
$356.52
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.99
$356.52
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB X17 Field-Adjustable LED Floodlight 50W-105W Selectable CCT 3000K-5000K with Dual Mount System

Professional field-adjustable LED lighting with selectable wattage and color temperature

The RAB X17 Field-Adjustable LED Floodlight delivers professional-grade illumination with exceptional versatility through its field-adjustable wattage range of 50W to 105W and selectable color temperature from 3000K to 5000K. This advanced LED floodlight features both slipfitter and trunnion mounting options for flexible installation, constant current driver technology for reliable performance, and DLC Premium 5.1 certification ensuring energy efficiency compliance for utility rebate programs.

Professional Features & Benefits

  • Field-Adjustable Wattage (50W-105W): Customize light output on-site to match specific application requirements without stocking multiple fixtures
  • Selectable CCT (3000K-5000K): Choose optimal color temperature for each installation from warm white to daylight for enhanced visibility and ambiance
  • DLC Premium 5.1 Certification: Qualifies for maximum utility rebates and incentives while ensuring superior energy efficiency performance
  • Dual Mount System: Includes both slipfitter and trunnion mounting hardware for versatile pole-top or bracket installation options
  • 100,000 Hour LED Life: Provides exceptional longevity reducing maintenance costs and replacement frequency over decades of operation
  • Constant Current Driver: Ensures stable LED performance and consistent light output throughout the fixture's operational life
  • Compact Design: Professional form factor at 18.31" x 13.98" x 4.73" optimizes coverage while minimizing visual impact

Technical Specifications

  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Product Height: 4.73
  • Product Length: 18.31
  • Product Width: 13.98

Professional Applications

  • Commercial Building Perimeter Lighting
  • Parking Lot and Area Illumination
  • Industrial Facility Security Lighting
  • Retail Center Exterior Lighting
  • Municipal Street and Pathway Lighting
  • Sports Facility and Recreation Area Lighting
  • Emergency Services and Public Safety Applications

Why Choose RAB Quality?

RAB lighting fixtures deliver professional reliability through DLC Premium certification, 100,000-hour LED life rating, and constant current driver technology. The field-adjustable design and dual mounting system provide installation flexibility while maintaining the performance standards required for commercial and industrial applications.

Manufacturer Resources

Product Specs

Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant Current
Lamp Hours:
100000
Product Height:
4.73
Product Length:
18.31
Product Width:
13.98
Department:
Electrical
Product Group:
Floodlights
Light Technology:
LED

RAB X17XFU140SF – Frequently Asked Questions

1) What wattage options does the RAB X17 floodlight come in, and can I change the output after it's installed?
The X17 is ordered in one of two field-selectable wattage groups: 105/75/50W or 140/100/70W. Whichever you order, the output is set in the field, so an electrician can dial the fixture to the level the site needs instead of swapping the fixture. Note the two groups do not overlap at the top end, so if you need 140W capability you have to order the 140/100/70W version (for example X17XFU140T) rather than adjusting a 105W unit up.
2) Will the RAB X17 run on 480 volt service, or only 120-277V?
Both, but it is a separate order code. Most X17 configurations use the 120-277V driver. The 480V driver is only offered on the 140/100/70W slipfitter versions, X17XFU140SF/480 in bronze and X17XFU140SFW/480 in white. If your site is 480V and you want a trunnion mount or the 105/75/50W range, the X17 will not cover it as ordered.
3) Should I order the slipfitter or the trunnion version of the RAB X17?
Pick by what you are mounting to. The slipfitter version drops onto a pole-top tenon or a round arm, which is the usual choice for parking lot poles. The trunnion version uses a yoke bracket you bolt to a wall, parapet, or flat surface and aim. Both finishes are available either way: bronze slipfitter X17XFU105SF, bronze trunnion X17XFU105T, white slipfitter X17XFU105SFW, white trunnion X17XFU105TW. The description notes the fixture ships with the dual mount system, but the mounting style is still part of the catalog number you choose.
4) Does the RAB X17 qualify for utility rebates?
The X17 is DLC Premium listed under DLC version 5.1, which is the tier most utility programs require for their highest incentive level. Confirm the exact catalog number you are ordering against your utility's qualified product list, since rebate programs reference the specific model code.
5) Can I set the color temperature of the RAB X17 on site, and what are the choices?
Color temperature is selectable in the field from 3000K to 5000K, so one fixture covers warm white through daylight. That lets a property manager match existing fixtures on a campus without ordering a separate CCT, and it means the same stocked unit works for a 3000K residential-adjacent perimeter and a 5000K security or parking application.
6) How big is the RAB X17 floodlight housing?
The X17 measures 18.31 inches long, 13.98 inches wide, and 4.73 inches deep. That footprint matters on wall and parapet jobs with the trunnion mount, since the fixture is close to a foot and a half across and needs clearance to aim without the body hitting a fascia or coping edge.
7) Is the RAB X17 a reasonable replacement for an older metal halide flood on a pole?
For a pole-mounted retrofit, the slipfitter X17 is the configuration that lands on an existing tenon. It is an LED fixture with a constant current driver and a 100,000 hour LED life rating, so it eliminates the lamp and ballast replacement cycle a metal halide head needs. Because wattage is field-selectable, you can tune output to roughly match the light level the old fixture produced rather than guessing at a fixed-wattage equivalent.
8) If I'm standardizing floodlights across several buildings, how many versions of the RAB X17 do I need to stock?
Far fewer than with fixed-output fixtures. Because wattage and color temperature are both set in the field, one X17 catalog number covers three light levels and the full 3000K to 5000K range. In practice you only need to decide on three things when stocking: the wattage group (105/75/50W or 140/100/70W), the mount (slipfitter or trunnion), and the finish (bronze or white), plus the 480V driver if a site runs at that voltage.
9) What finishes does the RAB X17 floodlight come in?
Bronze and white, and both are offered across the slipfitter and trunnion mounts and both wattage groups on the 120-277V driver. White versions carry a W at the end of the catalog number, such as X17XFU140TW, while bronze has no suffix, such as X17XFU140T. Bronze is the usual pick for poles and dark fascia; white is common where the fixture sits against light stucco or a retail canopy.
